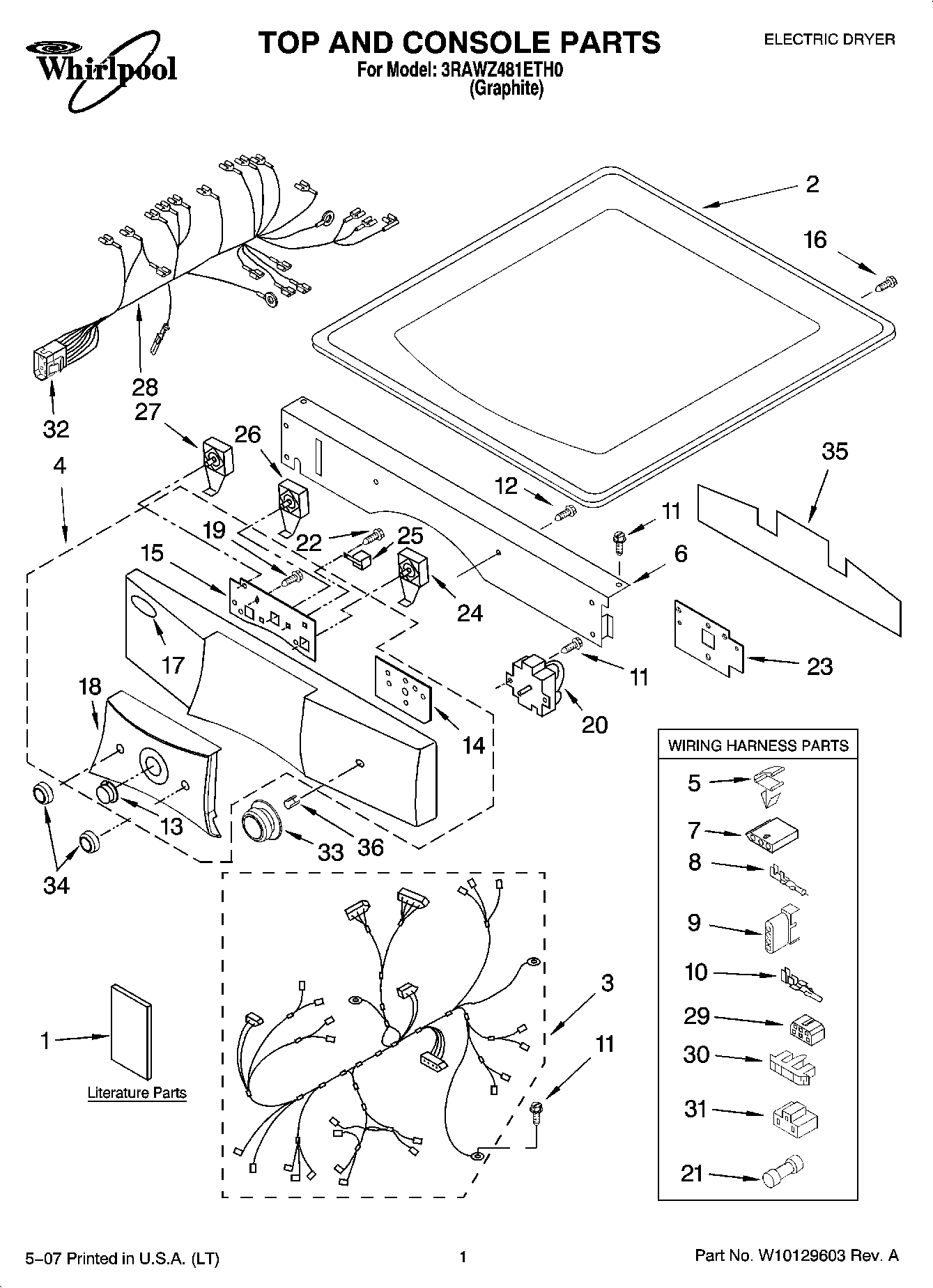

3RAWZ481ETH0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Label, Wiring Diagram
1	Installation & User Guide
1	Use & Care Guide
1	Installation Instructions
2	TOP
3	Harness, Main
4	Panel, Console (Includes Illus. 13, 14 15, 17, 18 & 19)
5	WP3394427 Whirlpool Clip
6	Bracket, Console
7	353424 Whirlpool Connector
8	WP94614 Whirlpool Terminal
9	3936144 Whirlpool Connector
10	WP596797 Whirlpool Terminal
11	WP489464 Whirlpool Refrigerator Screw
12	WP488787 Whirlpool Refrigerator Screw
13	Button, Push-To-Start
14	Bracket, Timer
15	Bracket, Switch Mounting
16	Screw, 8-18 x 1/2
17	Medallion
18	Console, Center
19	Screw, 2-28 x 1/2
20	TIMER
21	WPW10111181 Whirlpool Fuse Assembly
22	WPL W10080820
23	Spacer Plate (Timer)
24	W10168170 Whirlpool Switch
25	Buzzer, Mini
26	WPW10112668 Whirlpool Relay Push to Start
27	W10168169 Whirlpool Switch
28	Harness, Console
29	Block, Disconnect
30	Connector, Timer
31	3401144 Whirlpool Connector
32	Plug, Multi- Terminal 56B
33	Knob, Timer Assembly
34	Knob, Control (2)
35	Shield, Drip
36	WP688805 Whirlpool Spring Clip
