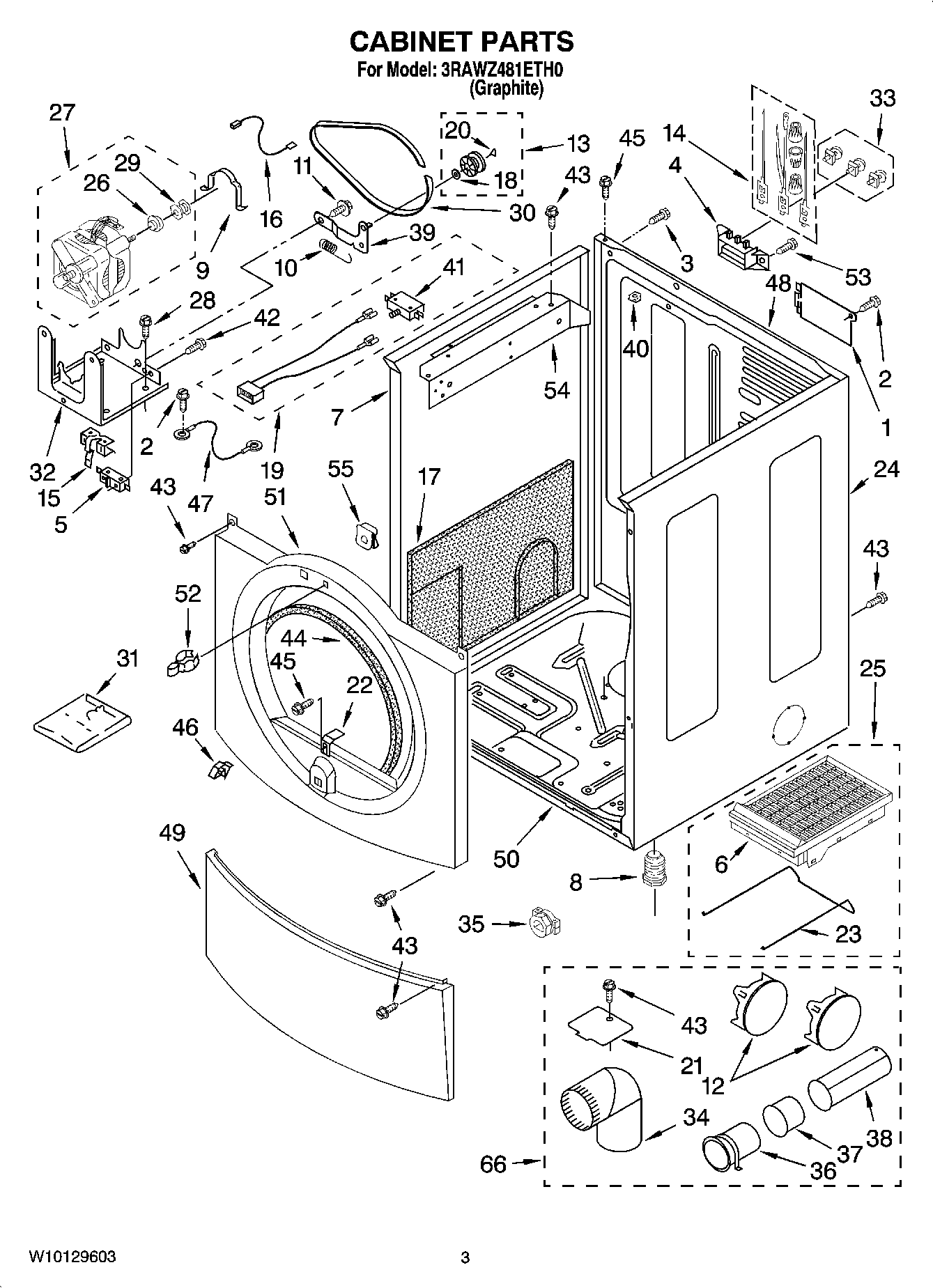

3RAWZ481ETH0 02 – CABINET PARTS

Products

Position	Product
1	WPW10119283 Whirlpool Terminal Cover
2	Screw, 8-32 x 5/16
3	Screw, 10-32 x 5/8 (Ground)
4	WP3397659 Whirlpool Terminal Block
5	WP8318457 Whirlpool Switch Plug
6	Dry Rack (Top)
7	Panel, Side (L.H.)
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	Retainer, Idler
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W10854043 Whirlpool Lever Assembly
16	Wire, Belt Switch
17	Sound Panel
18	WPW10121334 Whirlpool Washer
19	Jumper, Door Switch (Includes Illus. 41)
21	WPW10354249 Whirlpool Cover
22	Ramp, Door
23	Dry Rack Support
24	Panel, Side (R.H.)
25	Dry Rack Assembly
26	WP3393657 Whirlpool Belt Retainer
27	W10416573 Whirlpool Drive Motor
28	SCREW
29	3402548 Whirlpool Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	8541503 Whirlpool Stacking Kit
32	WP3387118 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	W11704629 Whirlpool Clamp
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	WP692400 Whirlpool Nut
41	Switch, Door
42	Screw, 6-20 x 1 1/16
43	WP489464 Whirlpool Refrigerator Screw
44	WP3387242 Whirlpool Seal
45	Screw, 10-16 x 1/2
46	W11295573 Whirlpool Clip
47	Wire, Ground
48	Panel, Rear
49	Toe, Panel
50	Base, Cabinet
51	Front Panel
52	W10080240 Whirlpool Strike
53	Screw, 8-18 x 3/8
54	Bracket, Control
55	Clip, Mounting (2)
55	WPL ARI12258A4
66	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
