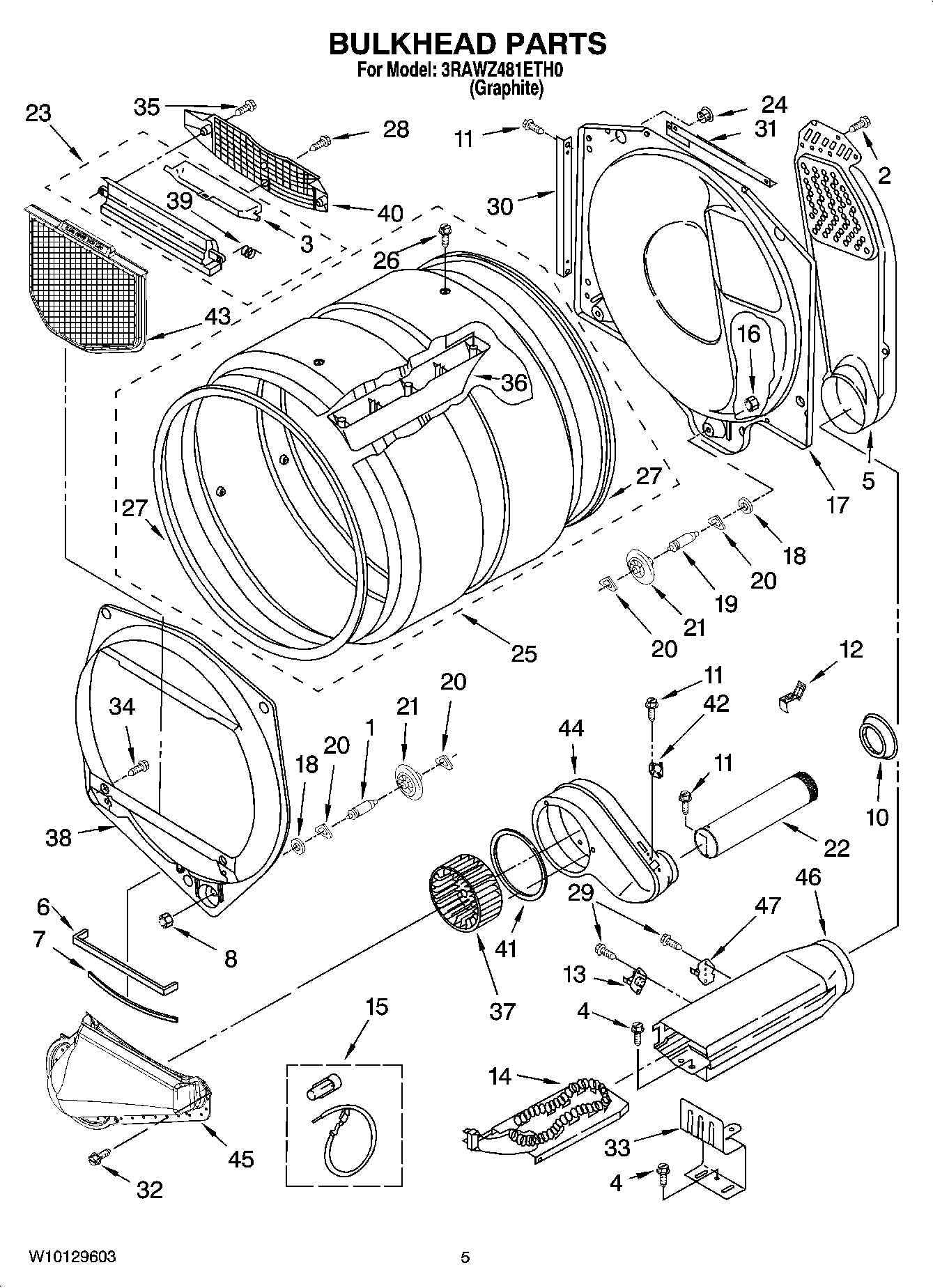

3RAWZ481ETH0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP489464 Whirlpool Refrigerator Screw
3	W11222846 Whirlpool Door
4	Screw, 8-32 x 5/16
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
10	W11233063 Whirlpool Shield Assembly
11	WPL W10080820
12	W11684573 Whirlpool Clip Assembly
13	WP3390291 Whirlpool High Limit Thermostat
14	ELEMENT
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	Exhaust Pipe
23	W11129408 Whirlpool Out Housing
24	8529007 Whirlpool Plug
25	Complete Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	Screw, 8-18 x 1/2
29	Screw, 8-18 x 3/8
30	Channel Bracket, Rear Bulkhead (2)
31	W10118337 Whirlpool Bracket Assembly
32	Screw, 8-18 x 5/8
33	8066099 Whirlpool Bracket
34	Screw, 10-16 x 1/2
35	Screw, 10-16 x 1
36	WPW10113136 Whirlpool Drum Baffle
37	WP697772 Whirlpool Dryer Blower Wheel
38	Bulkhead, Front
39	WP3394986 Whirlpool Spring
40	W11086603 Whirlpool Dryer Link Screen Air Grille
41	WP697770 Whirlpool Blower Cover Plate Seal
42	WP3387137 Whirlpool Thermostat
43	W10120998 Whirlpool Dryer Lint Screen Filter
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
