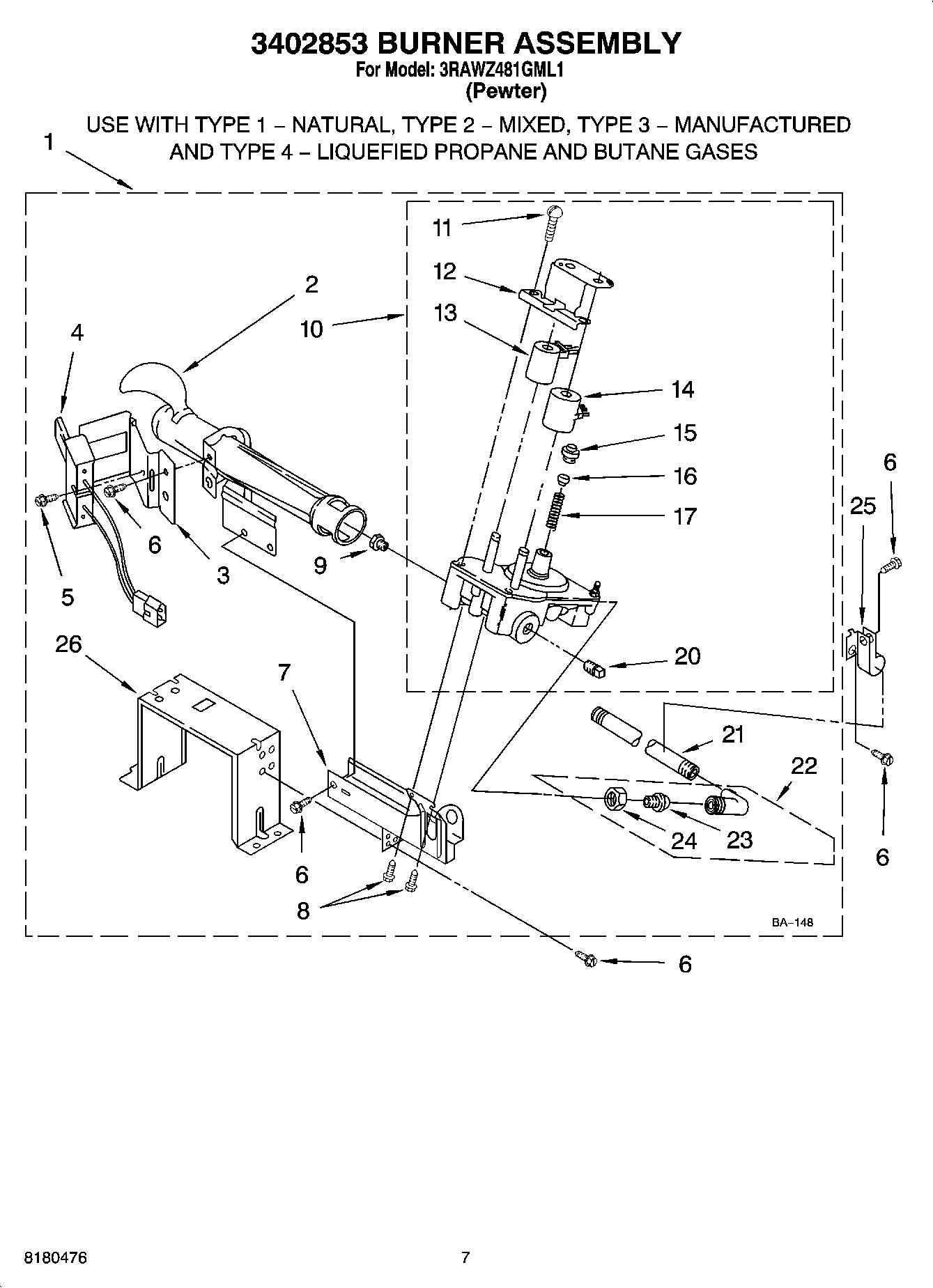

3RAWZ481GML1 04 – 3402853 BURNER ASSEMBLY

Products

Position	Product
1	Burner Assembly 50 Hz. (White Rodgers)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	WP3351614 Whirlpool Screw
7	Base, Burner
8	WP693995 Whirlpool Screw
9	ORIFICE, BURNER TYPE 1
9	Orifice, Burner (Type 4 (Butane))
10	WP8281918 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
13	WP307930 Whirlpool Coil Valve
14	WPY307931 Whirlpool Valve Coil
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
20	W10295523 Whirlpool Plug
21	Pipe, Gas Supply
22	3406051 Whirlpool Elbow
23	3393767 Whirlpool Pipe
24	Nut, Compression
25	3387561 Whirlpool Clamp
26	Bracket, Support
26	279918A Whirlpool LP Conversion Kit
26	FOLLOWING PARTS NOT ILLUSTRATED
