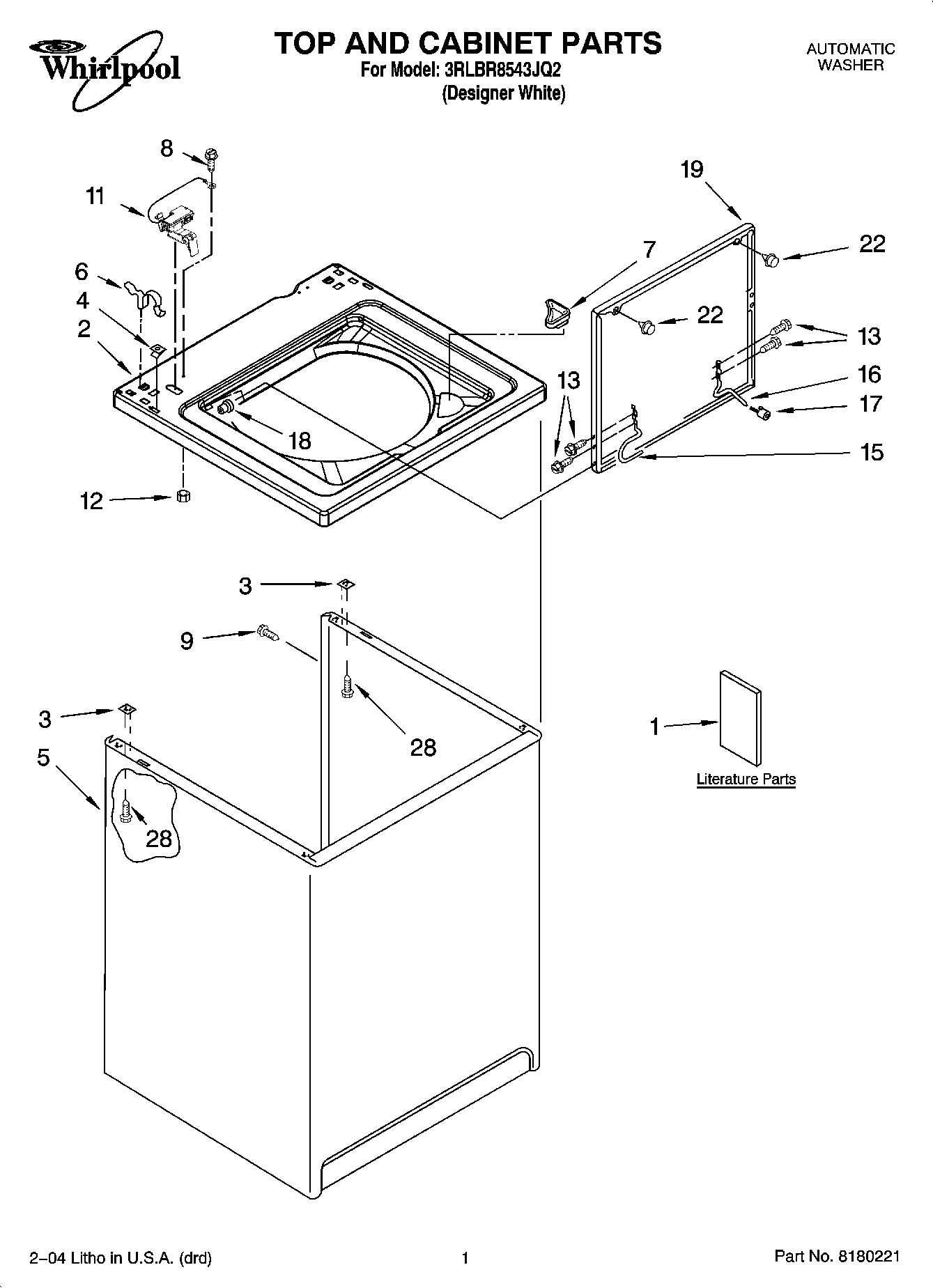

3RLBR8543JQ2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation & User Guide)
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
5Cabinet (White)
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
12W10080180 Whirlpool Nut
13SCREW
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
