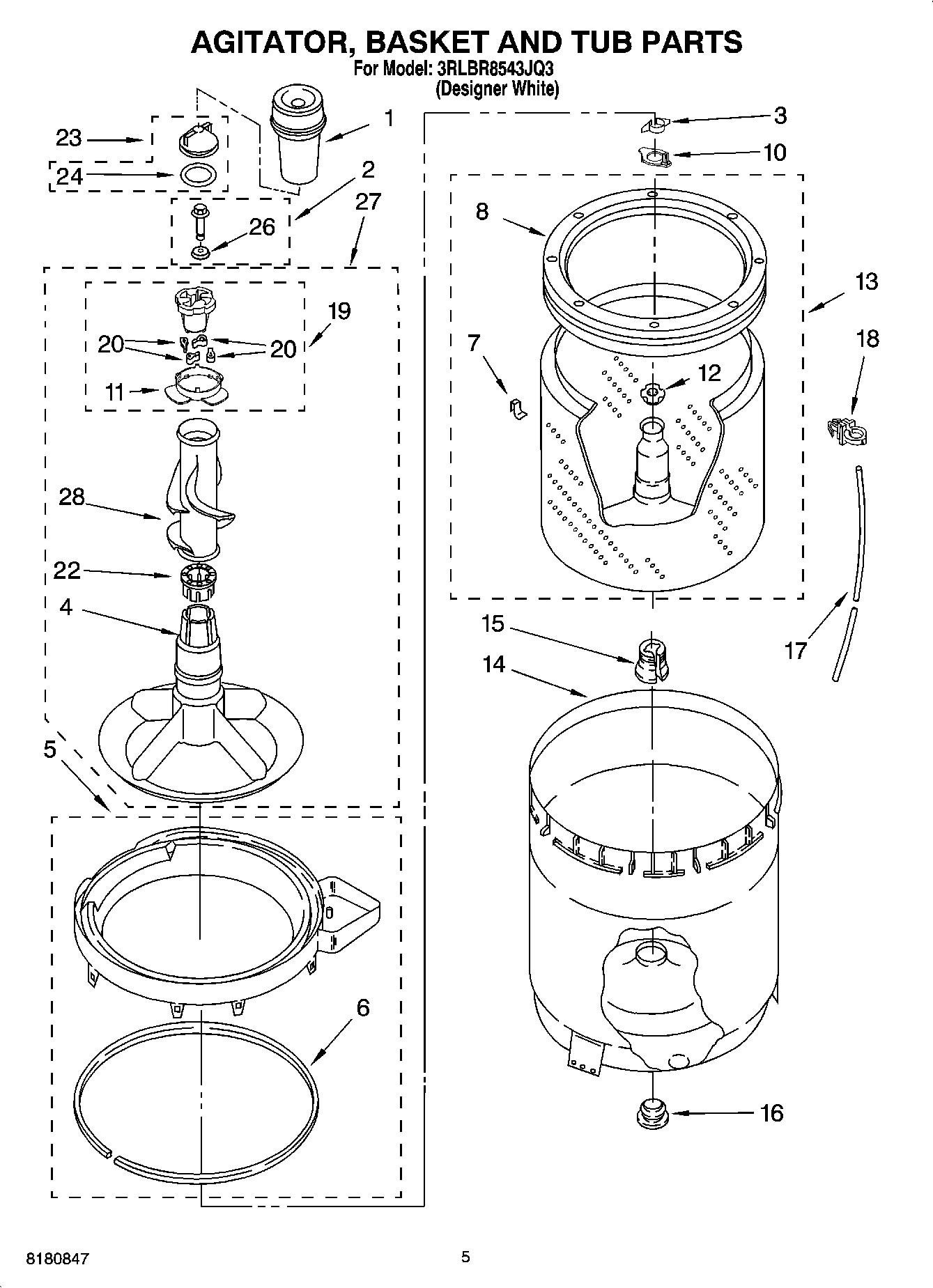

3RLBR8543JQ3 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	63580 Whirlpool Washer Fabric Softener Dispenser
2	WP358237 Whirlpool Agitator Bolt
3	WP3354845 Whirlpool Clip
4	WP3350830 Whirlpool Agitator Assembly
5	Tub Ring
6	WP3359586 Whirlpool Tub Seal
7	WP8519815 Whirlpool Washer Balance Ring Clip
8	WP3956205 Whirlpool Balance Ring
10	WP8543666 Whirlpool Washer
11	WP3363661 Whirlpool Bearing Cam
12	WP21366 Whirlpool Spanner Nut
13	Basket & Balance Ring
14	Tub
15	WP389140 Whirlpool Drive Block or Bell
16	W10814296 Whirlpool Washer Center Post Seal Gasket
17	WP353244 Whirlpool Hose
18	2219077 Whirlpool Refrigerator Clip
19	285811 Whirlpool Washer Agitator Repair Kit
20	80040 Whirlpool Washer Agitator Dog Kit
22	285587 Whirlpool Thrust Washer
23	WPW10074580 Whirlpool Agitator Inner Cap and Seal
24	WPW10072840 Whirlpool Seal Assembly
26	WP3949550 Whirlpool Gasket Assembly
27	Agitator (Complete)
28	WP3349019 Whirlpool Upper Agitator
