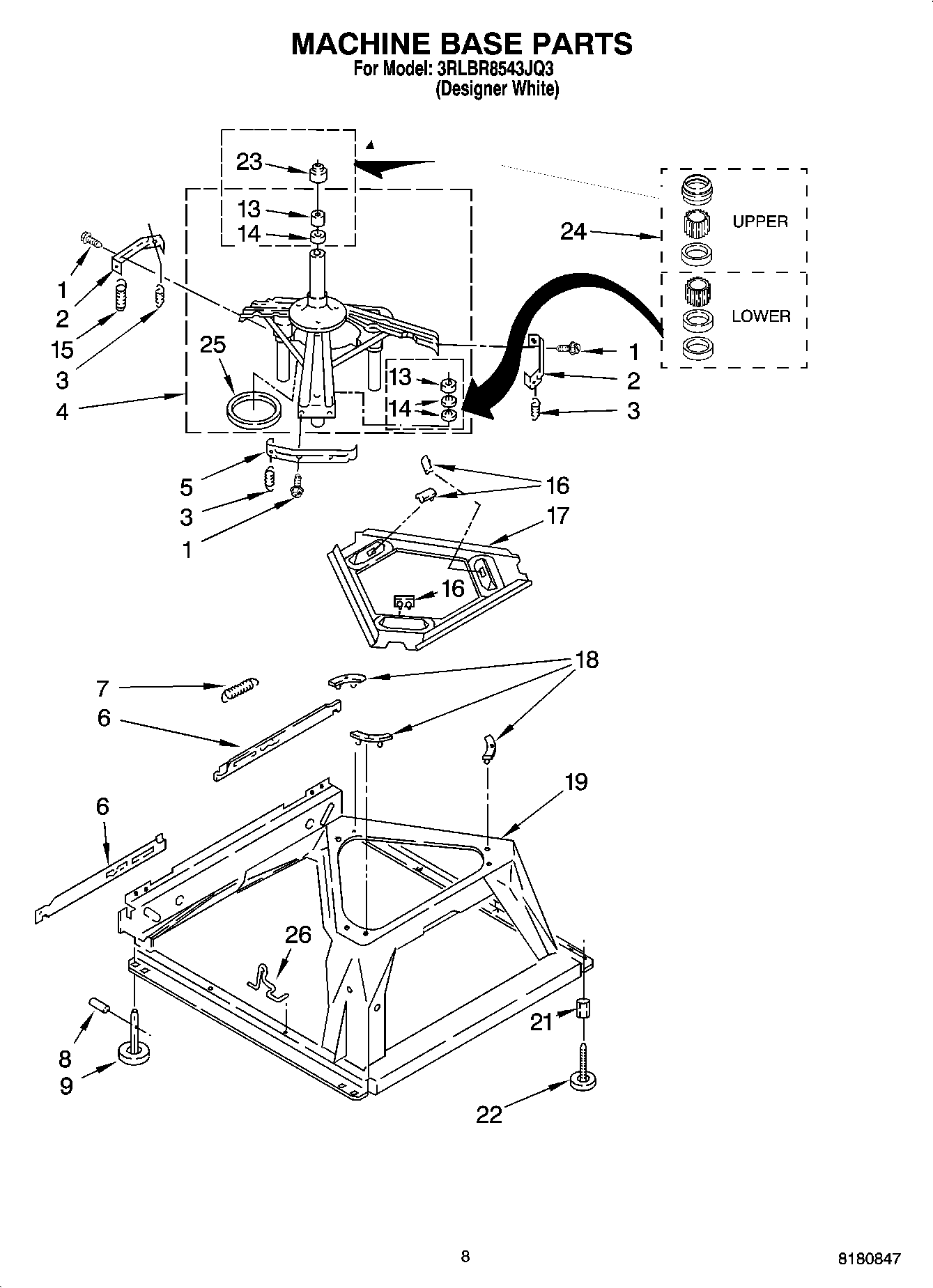

3RLBR8543JQ3 05 – MACHINE BASE PARTS

Products

Position	Product
1	W10846509 Whirlpool Screw
2	WP64067 Whirlpool Bracket
3	WP63907 Whirlpool Washer Suspension Spring
4	Support & Brake, Tub
5	Bracket, Spring Outer (L.F.)
6	Link, Leveling Mechanism (2)
7	8316845 Whirlpool Washer Spring
8	WP62837 Whirlpool Dowel Pin
9	285244 Whirlpool Leveling Feet
13	WP8546455 Whirlpool Bearing
14	W11095997 Whirlpool Seal
15	WPW10250667 Whirlpool Washer Suspension Spring
16	285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
17	WP3946509 Whirlpool Skate Plate
18	285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
19	285459 Whirlpool Washer Base
21	WP3359452 Whirlpool Nut
22	WPW10001130 Whirlpool Leveling Leg
23	WP8577376 Whirlpool Seal
24	285203 Whirlpool CP Bearing
25	WP63134 Whirlpool Ring
26	WPW10145155 Whirlpool Retainer
