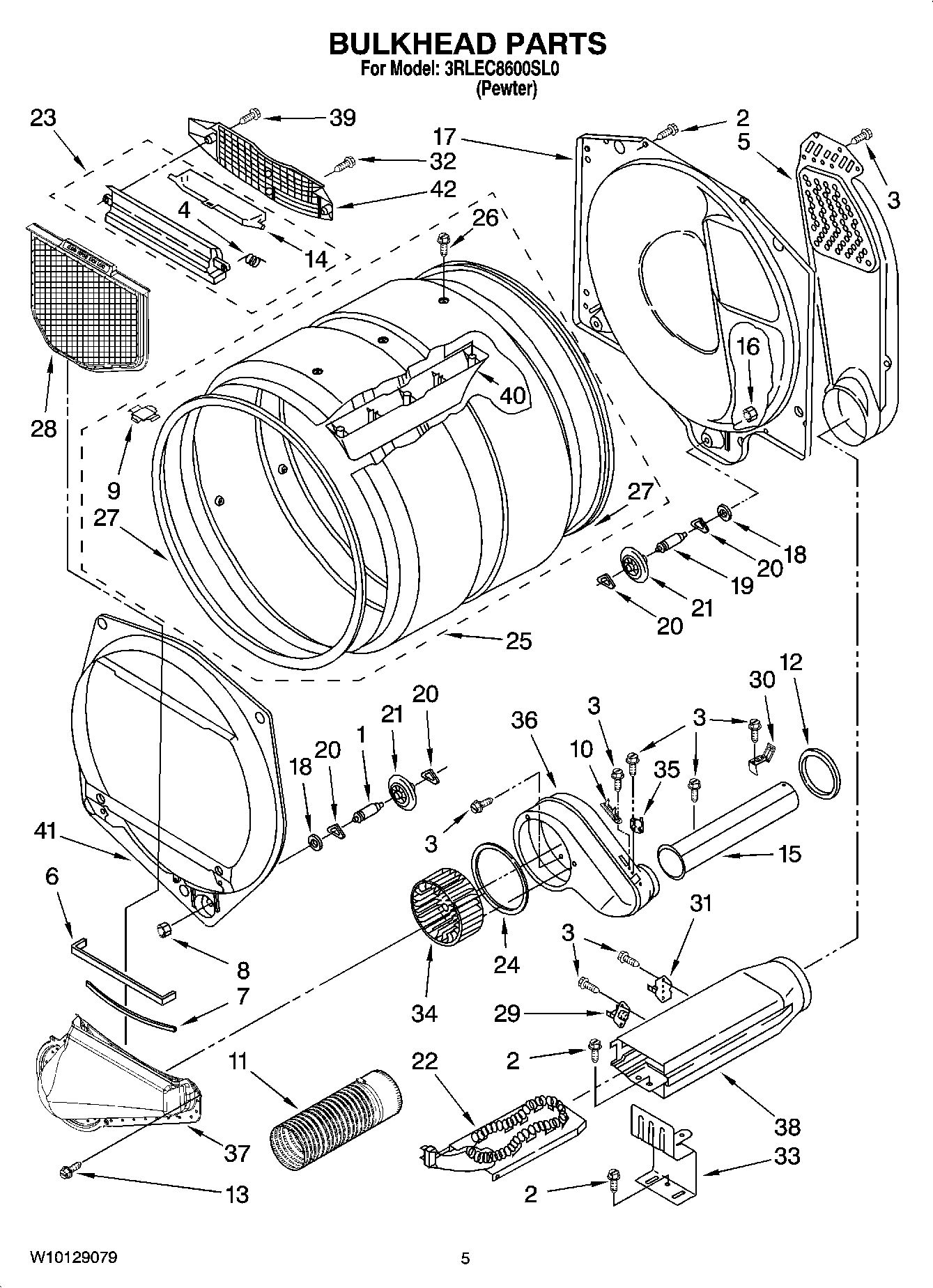

3RLEC8600SL0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350938 Whirlpool Spray Gun
	4392067 Whirlpool Dryer Repair Kit
	ACCESSORY PARTS
	W11224254 Whirlpool Test Kit
	WP4396174 Whirlpool Touch-Up Paint
	PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
	799344 Whirlpool Refrigerator Paint
1	SHAFT
2	WP489464 Whirlpool Refrigerator Screw
3	Screw, 8-18 x 3/8
4	WP3394986 Whirlpool Spring
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	8066086 Whirlpool Plug
10	WP3392519 Whirlpool Dryer Thermal Fuse
11	Exhaust Duct (Corrugated)
12	W11233063 Whirlpool Shield Assembly
13	Screw, 8-18 x 5/8
14	W11222846 Whirlpool Door
15	PIPE, EXHAUST
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	ELEMENT
23	W11129408 Whirlpool Out Housing
24	WP697770 Whirlpool Blower Cover Plate Seal
25	W10545923 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	W10120998 Whirlpool Dryer Lint Screen Filter
29	WP3390291 Whirlpool High Limit Thermostat
30	W11684573 Whirlpool Clip Assembly
31	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
32	Screw, 8-15 x 1/2
33	8066099 Whirlpool Bracket
34	WHEEL
35	WP3387137 Whirlpool Thermostat
36	W10888146 Whirlpool Housing
37	WPW10128606 Whirlpool Lint Duct
38	W10802681 Whirlpool Box Assembly
39	Screw, 10-16 x 1
40	WPW10113136 Whirlpool Drum Baffle
41	WP697557 Whirlpool Bulkhead Assembly
42	W11086603 Whirlpool Dryer Link Screen Air Grille
