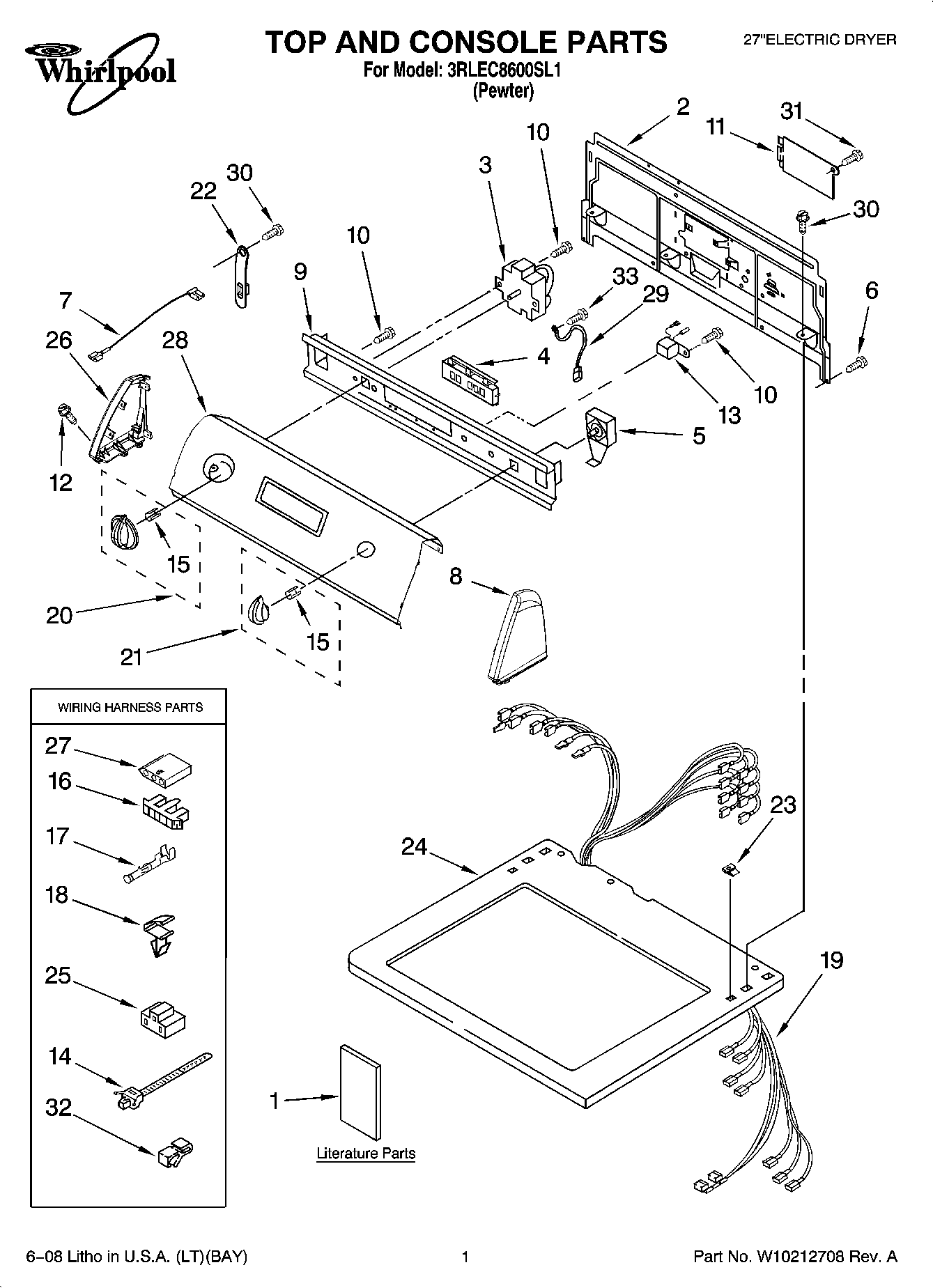

3RLEC8600SL1 01 – TOP AND CONSOLE PARTS

3RLEC8600SL1 01 – TOP AND CONSOLE PARTS

Written by

in

3RLEC8600SL1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation & User Guide
1WPL 677818
1Wiring Diagram
2W10121161 Whirlpool Rear Panel
3WPW10116281 Whirlpool Timer
4Switch, Clean Touch
5WPW10112633 Whirlpool Relay Parts
6WP489069 Whirlpool Compactor Screw
7Wire, Jumper (Yellow/Black)
7Wire, Jumper (White)
7Wire, Jumper (Blue)
7Wire, Jumper (Violet)
8Cap, End (R.H.)
9Bracket, Control
10WP90767 Whirlpool Screw
11Cover, Terminal Block
12WP388326 Whirlpool Screw
13Buzzer, Mini
14WP3391018 Whirlpool Wire Tie
15WP8536939 Whirlpool Spring Clip
16Connector, Timer
17WP94614 Whirlpool Terminal
18Clip, Harness
19Harness, Wiring
20WPL 8544957
21WPL 8544937
22Strap, Console
23WP357213 Whirlpool Hinge Stopper
24Top (Grey)
253401144 Whirlpool Connector
26Cap, End (L.H.)
273936144 Whirlpool Connector
28Control Panel
29GROUND WIRE
30WP488729 Whirlpool Refrigerator Door Screw
31Screw, 8-32 x 5/16
32W10113937 Whirlpool Clamp
33303776 Whirlpool Dishwasher Screw
