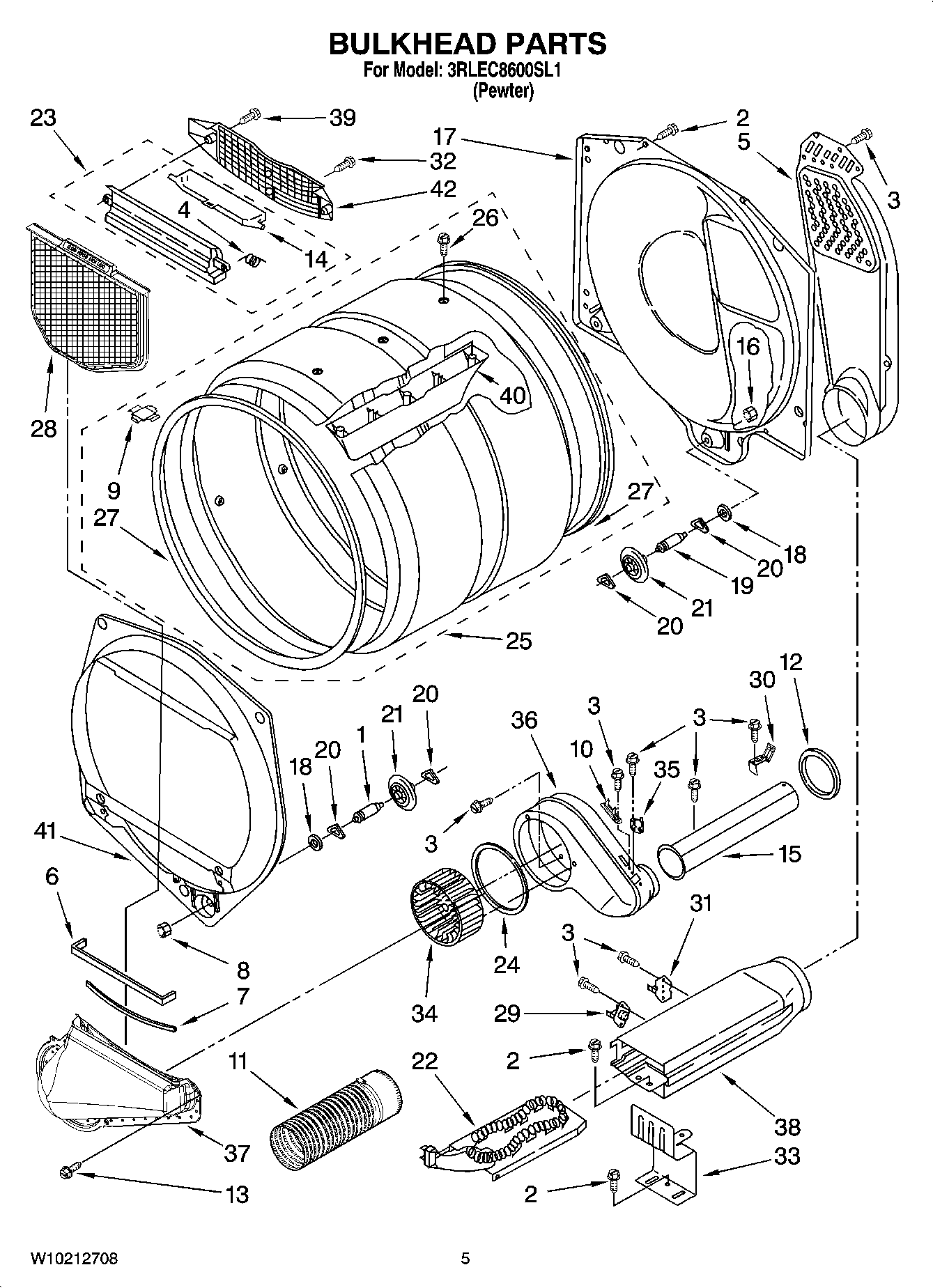

3RLEC8600SL1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

3RLEC8600SL1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

3RLEC8600SL1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
ACCESSORY PARTS
W11224254 Whirlpool Test Kit
799344 Whirlpool Refrigerator Paint
4392067 Whirlpool Dryer Repair Kit
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1SHAFT
2WP489464 Whirlpool Refrigerator Screw
3Screw, 8-18 x 3/8
4WP3394986 Whirlpool Spring
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
98066086 Whirlpool Plug
10WP3392519 Whirlpool Dryer Thermal Fuse
11Exhaust Duct (Corrugated)
12W11233063 Whirlpool Shield Assembly
13Screw, 8-18 x 5/8
14W11222846 Whirlpool Door
15PIPE, EXHAUST
16WPW10080190 Whirlpool Nut
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22ELEMENT
23W11129408 Whirlpool Out Housing
24WP697770 Whirlpool Blower Cover Plate Seal
25W10545923 Whirlpool Drum Assembly
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28W10120998 Whirlpool Dryer Lint Screen Filter
29WP3403607 Whirlpool Thermoprotector
30W11684573 Whirlpool Clip Assembly
31279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
32Screw, 8-15 x 1/2
338066099 Whirlpool Bracket
34WP697772 Whirlpool Dryer Blower Wheel
35WPW10168174 Whirlpool Thermostat
36WP8544363 Whirlpool Housing
37WPW10128606 Whirlpool Lint Duct
38W10802681 Whirlpool Box Assembly
39Screw, 10-16 x 1
40WPW10113136 Whirlpool Drum Baffle
41WP697557 Whirlpool Bulkhead Assembly
42W11086603 Whirlpool Dryer Link Screen Air Grille
