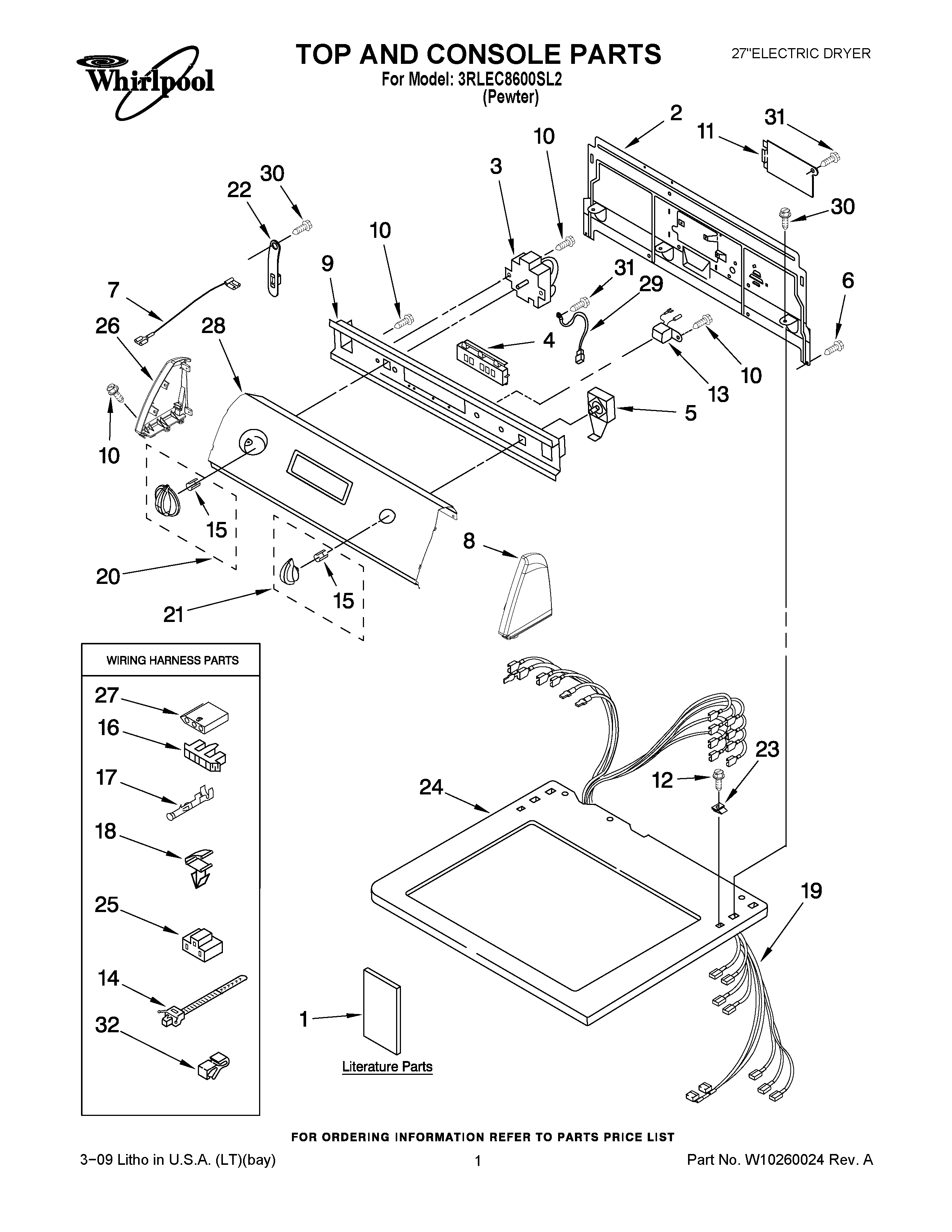

3RLEC8600SL2 01 – TOP AND CONSOLE PARTS

3RLEC8600SL2 01 – TOP AND CONSOLE PARTS

Written by

in

3RLEC8600SL2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation & User Guide
1Instructions, Installation
1Guide, Use & Care
1WIRING DIAGRAM
2W10121161 Whirlpool Rear Panel
3WPW10116281 Whirlpool Timer
4Switch, Clean Touch
5WPW10112633 Whirlpool Relay Parts
6WP489069 Whirlpool Compactor Screw
7Wire, Jumper (Yellow/Black)
7Wire, Jumper (Blue)
7Wire, Jumper (White)
7Wire, Jumper (Violet)
8Cap, End (R.H.)
9Bracket, Control
10WPL W10080820
11Cover, Terminal Block
12Screw, 8-18 x 1.25 (Panel to Top)
13Buzzer, Mini
14WP3391018 Whirlpool Wire Tie
15WP8536939 Whirlpool Spring Clip
16Connector, Timer
17WP94614 Whirlpool Terminal
18Clip, Harness
19Harness, Wiring
20WPL 8544957
21WPL 8544937
22Strap, Console
23WP357213 Whirlpool Hinge Stopper
24TOP
253401144 Whirlpool Connector
26Cap, End (L.H.)
273936144 Whirlpool Connector
28Control Panel
29GROUND WIRE
30W10891954 Whirlpool Screw
31Screw, 8-32 x 5/16
32W10113937 Whirlpool Clamp
