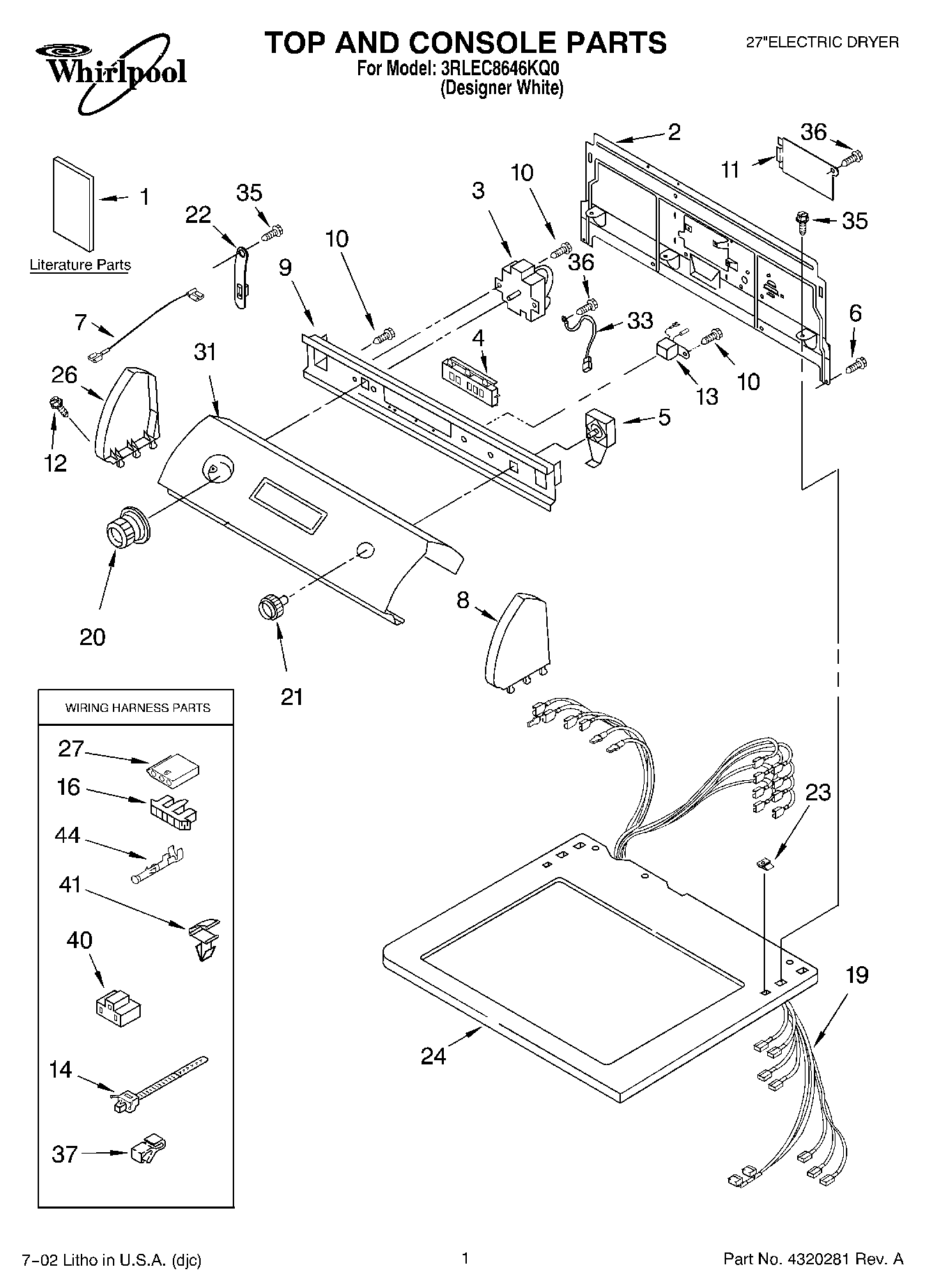

3RLEC8646KQ0 01 – SECTIONadmin2025-04-26T12:27:02+00:003RLEC8646KQ0 01 – SECTION
Products
| Position | Product |
|---|
| Dryer |
| 1 | Literature Parts (Installation & User Guide) |
| 1 | Literature Parts (Instructions, Installation) |
| 1 | Literature Parts (Wiring Diagram) |
| 1 | Literature Parts (Guide, Use & Care) |
| 2 | 285909 Whirlpool Rear Panel |
| 3 | WPW10116281 Whirlpool Timer |
| 4 | Switch, Clean Touch (White) |
| 5 | WPW10112633 Whirlpool Relay Parts |
| 6 | WP693995 Whirlpool Screw |
| 7 | Wire, Jumper (Blue) |
| 7 | Wire, Jumper (Violet) |
| 7 | Wire, Jumper (White) |
| 7 | Wire, Jumper (Yellow/Black) |
| 8 | W10820038 Whirlpool Endcap |
| 9 | Bracket, Control |
| 10 | WPW10139210 Whirlpool Screw |
| 11 | WPW10119283 Whirlpool Terminal Cover |
| 12 | WP388326 Whirlpool Screw |
| 13 | Buzzer, Mini |
| 14 | WP3391018 Whirlpool Wire Tie |
| 16 | Connector, Timer |
| 19 | Harness, Wiring |
| 20 | WP3957754 Whirlpool Knob Assembly |
| 21 | WP3957799 Whirlpool Knob |
| 22 | WP8568314 Whirlpool Strap |
| 23 | WP357213 Whirlpool Hinge Stopper |
| 24 | Top |
| 27 | 3936144 Whirlpool Connector |
| 31 | Panel, Control |
| 33 | Wire, Ground |
| 35 | WP488729 Whirlpool Refrigerator Door Screw |
| 36 | 303776 Whirlpool Dishwasher Screw |
| 37 | W10113937 Whirlpool Clamp |
| 40 | 3401144 Whirlpool Connector |
| 41 | WP3394427 Whirlpool Clip |
| 44 | WP94614 Whirlpool Terminal |
