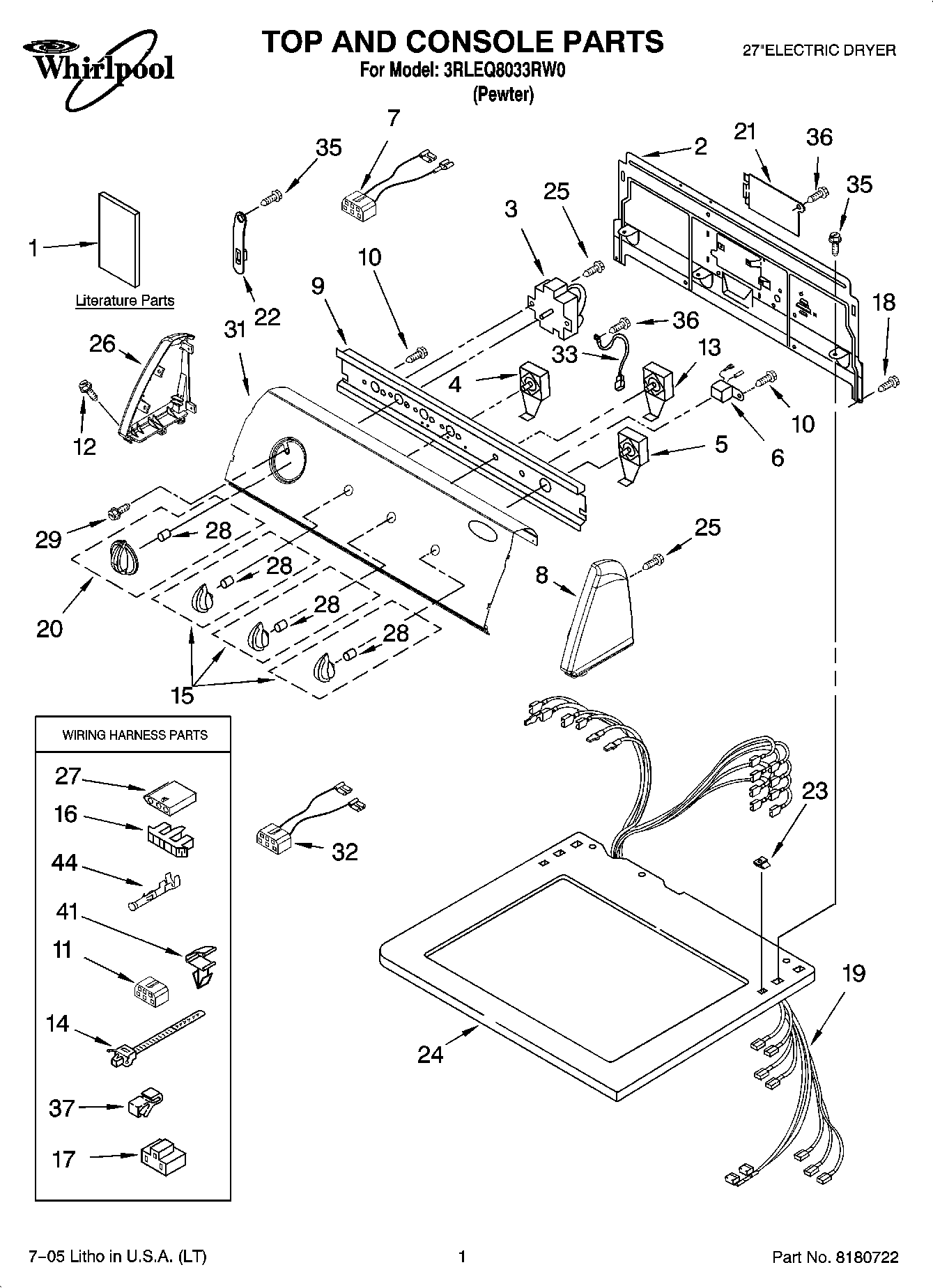

3RLEQ8033RW0 01 – TOP AND CONSOLE PARTS

3RLEQ8033RW0 01 – TOP AND CONSOLE PARTS

Written by

in

3RLEQ8033RW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Installation & User Guide
1Guide, Use & Care
1Wiring Diagram
1Instructions, Installation
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2285909 Whirlpool Rear Panel
3WPW10116281 Whirlpool Timer
4W10168169 Whirlpool Switch
5WPW10112633 Whirlpool Relay Parts
6Buzzer, Mini
73397695 Whirlpool Wire Harness
8Cap, End (R.H.)
9Bracket, Control
10WPW10139210 Whirlpool Screw
11Block, Disconnect
12WP388326 Whirlpool Screw
13W10168170 Whirlpool Switch
14WP3391018 Whirlpool Wire Tie
15WPL 8544937
16Connector, Timer
173401144 Whirlpool Connector
18W10850756 Whirlpool Screw
19Harness, Wiring
20WPL 8544957
21WPW10119283 Whirlpool Terminal Cover
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
25WP90767 Whirlpool Screw
26Cap, End (L.H.)
273936144 Whirlpool Connector
28WP8536939 Whirlpool Spring Clip
293400859 Whirlpool Screw
31Panel, Control
32Wire, Jumper (Temperature)
33Wire, Ground
35WP488729 Whirlpool Refrigerator Door Screw
36303776 Whirlpool Dishwasher Screw
37W10113937 Whirlpool Clamp
41WP3394427 Whirlpool Clip
44WP94614 Whirlpool Terminal
