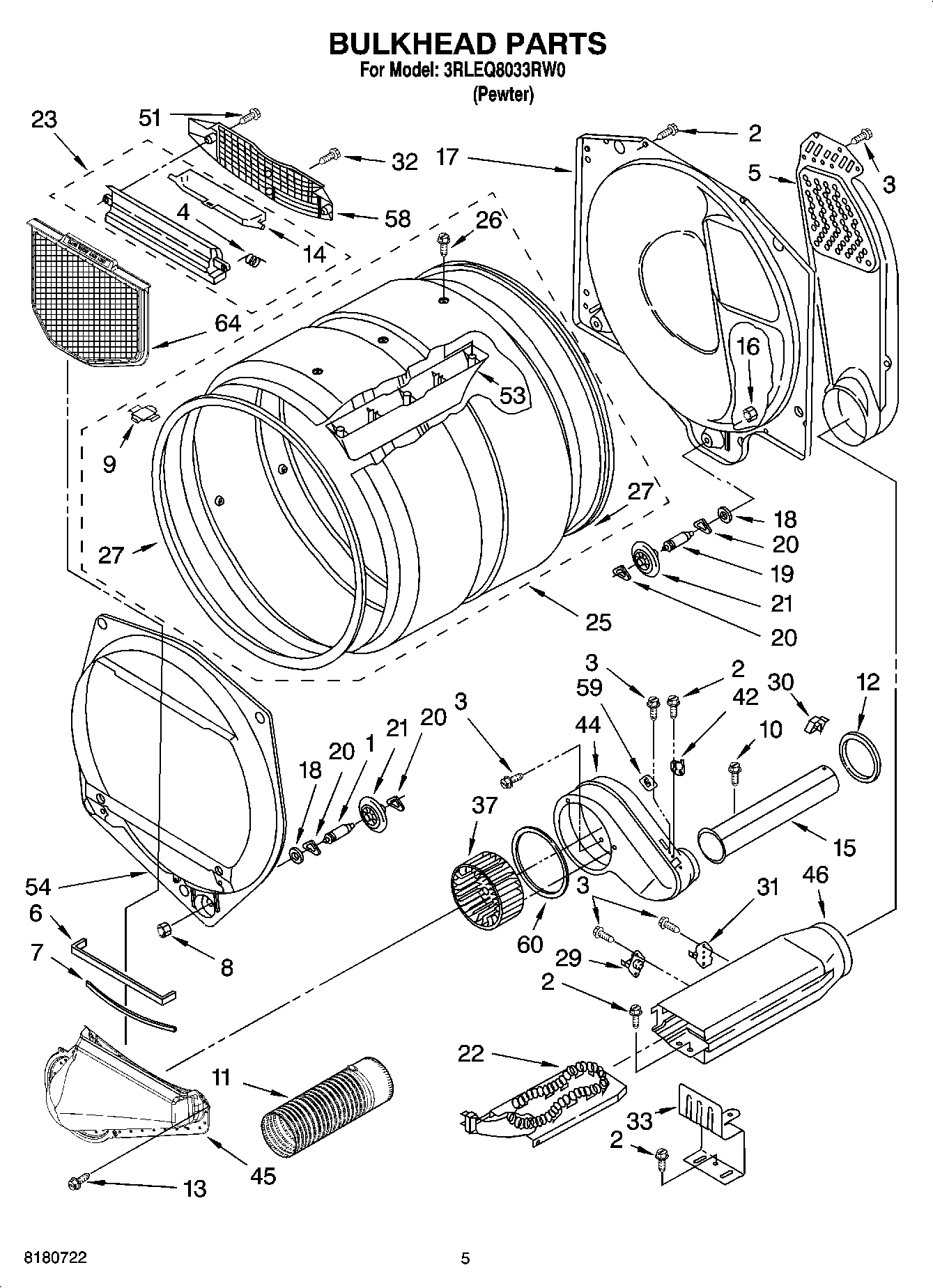

3RLEQ8033RW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

3RLEQ8033RW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

3RLEQ8033RW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WP4396174 Whirlpool Touch-Up Paint
WPL ARI12300A5
4392067 Whirlpool Dryer Repair Kit
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter)
W11224254 Whirlpool Test Kit
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3WP90767 Whirlpool Screw
4WP3394986 Whirlpool Spring
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WP3359452 Whirlpool Nut
98066086 Whirlpool Plug
10WPW10139210 Whirlpool Screw
11Exhaust Duct (Corrugated)
12W11233063 Whirlpool Shield Assembly
13WP3387230 Whirlpool Screw
14W11222846 Whirlpool Door
15279936 Whirlpool Exhaust Pipe
16Nut, 3/8-16 (L.H.)
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22ELEMENT
23W11129408 Whirlpool Out Housing
25W10545923 Whirlpool Drum Assembly
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
29WP3390291 Whirlpool High Limit Thermostat
30WP3388229 Whirlpool Dryer Spring Clip
31279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
338066099 Whirlpool Bracket
37WP697772 Whirlpool Dryer Blower Wheel
42WP3387137 Whirlpool Thermostat
44W10888146 Whirlpool Housing
45WPW10128606 Whirlpool Lint Duct
46W10802681 Whirlpool Box Assembly
51WP308685 Whirlpool Microwave Screw
53WPW10113136 Whirlpool Drum Baffle
54WP697557 Whirlpool Bulkhead Assembly
58W11086603 Whirlpool Dryer Link Screen Air Grille
59WP3392519 Whirlpool Dryer Thermal Fuse
60WP697770 Whirlpool Blower Cover Plate Seal
64W10120998 Whirlpool Dryer Lint Screen Filter
