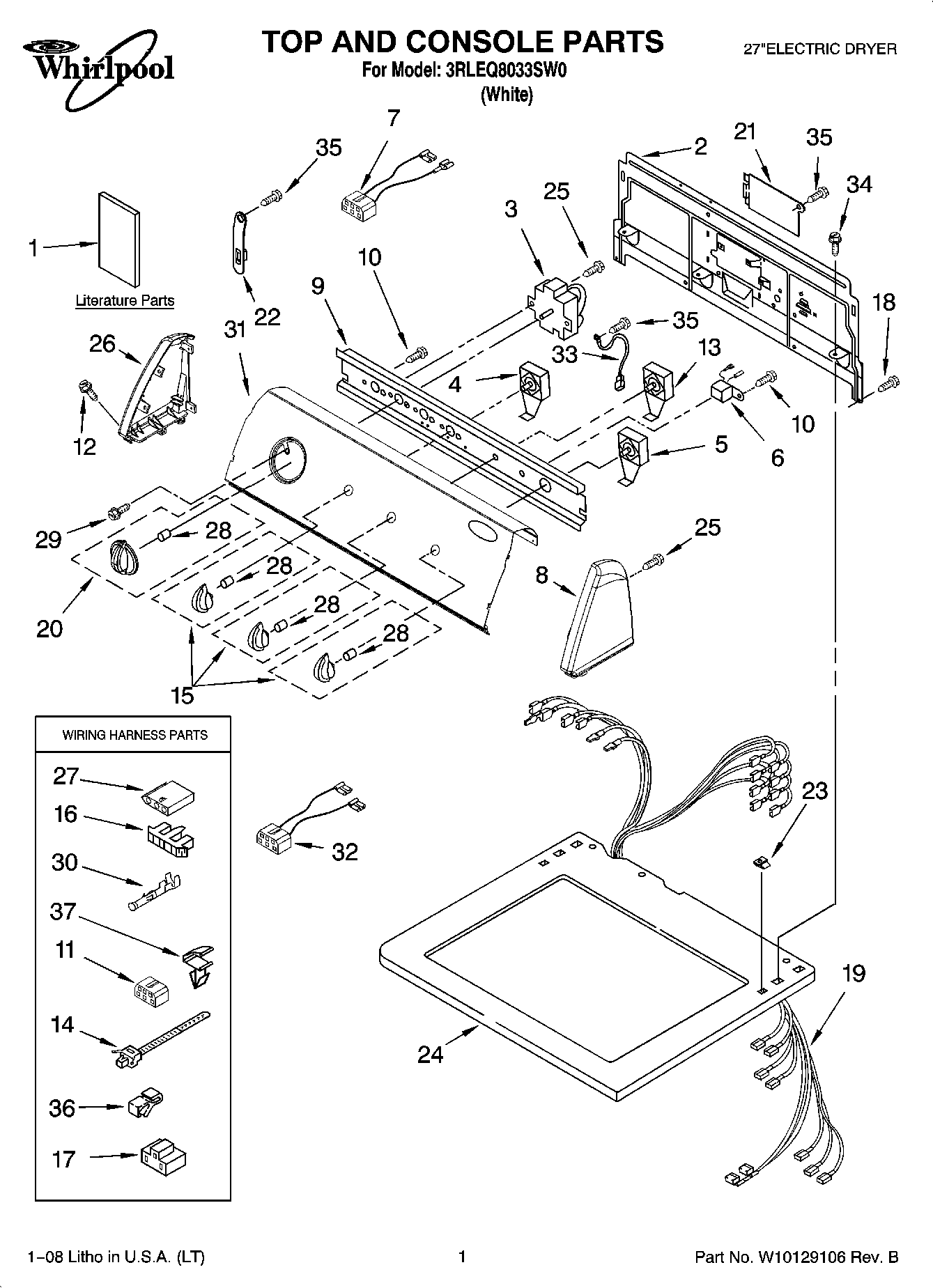

3RLEQ8033SW0 01 – TOP AND CONSOLE PARTS

3RLEQ8033SW0 01 – TOP AND CONSOLE PARTS

Written by

in

3RLEQ8033SW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Guide, Use & Care
1Installation & User Guide
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1WPL 677818
1Wiring Diagram
1Instructions, Installation
2W10121161 Whirlpool Rear Panel
3WPW10116281 Whirlpool Timer
4W10168169 Whirlpool Switch
5WPW10112633 Whirlpool Relay Parts
6Buzzer, Mini
73397695 Whirlpool Wire Harness
8Cap, End (R.H.)
9Bracket, Control
11Block, Disconnect
12Screw, 8-18 x 1.25 (Panel to Top)
13W10168170 Whirlpool Switch
14WP3391018 Whirlpool Wire Tie
15WPL 8544937
16Connector, Timer
173401144 Whirlpool Connector
18SCREW GROUND
19Harness, Wiring
20WPL 8544957
21WPW10119283 Whirlpool Terminal Cover
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top (White)
25WPL W10080820
26Cap, End (L.H.)
273936144 Whirlpool Connector
28WP8536939 Whirlpool Spring Clip
293400859 Whirlpool Screw
30WP94614 Whirlpool Terminal
31Panel, Control
32Wire, Jumper (Temperature)
33GROUND WIRE
34WP489464 Whirlpool Refrigerator Screw
35Screw, 8-32 x 5/16
36W10113937 Whirlpool Clamp
37WP3394427 Whirlpool Clip
