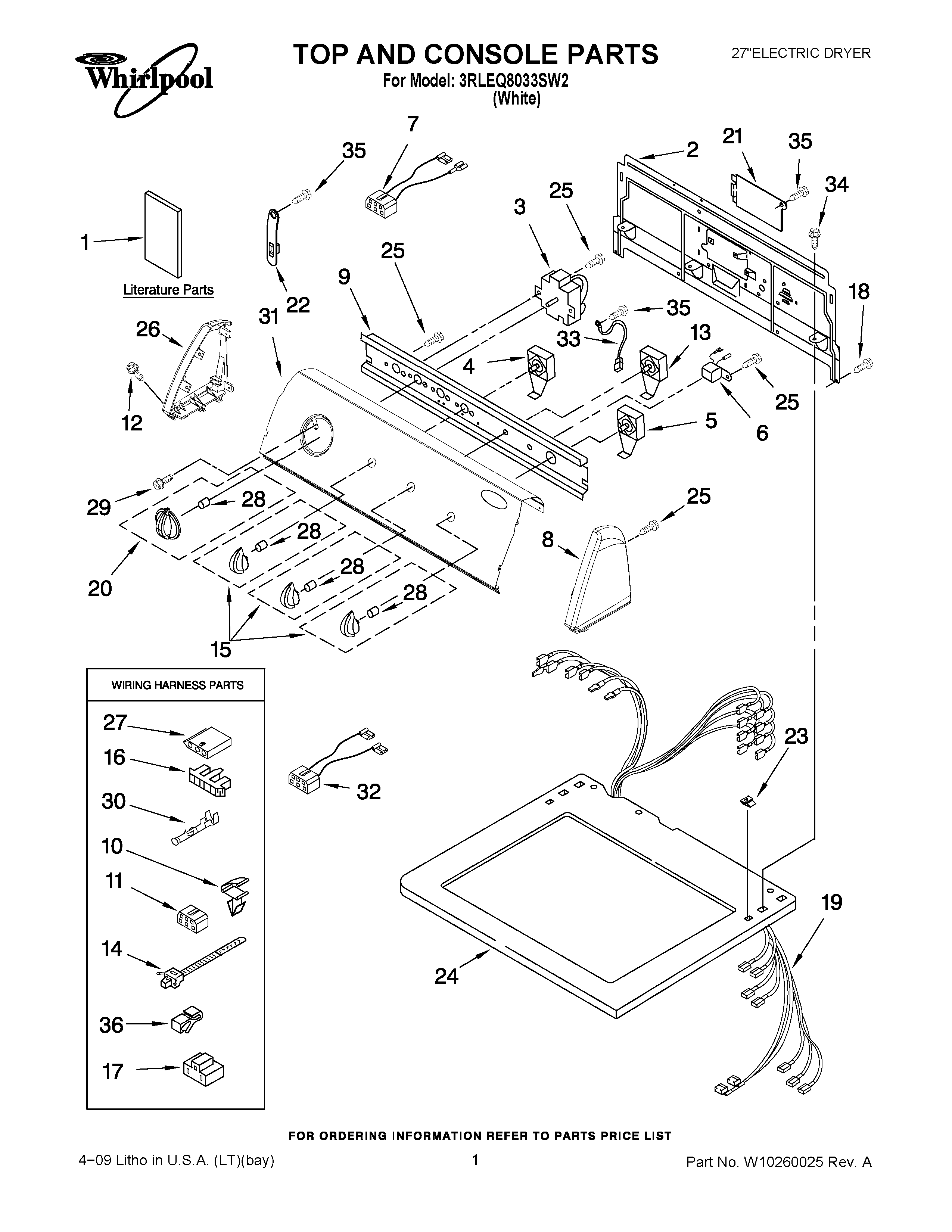

3RLEQ8033SW2 01 – TOP AND CONSOLE PARTS
Written by
in
3RLEQ8033SW2 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
INSTRUCTIONS, INSTALLATION
1
Installation & User Guide
1
WIRING DIAGRAM
1
Guide, Use & Care
1
WPL 677818
2
W10121161 Whirlpool Rear Panel
3
WPW10116281 Whirlpool Timer
4
W10168170 Whirlpool Switch
5
W10238464 Whirlpool Relay Parts
6
Buzzer, Mini
7
3397695 Whirlpool Wire Harness
8
Cap, End (R.H.)
9
Bracket, Control
10
WP3394427 Whirlpool Clip
11
Block, Disconnect
12
WP388326 Whirlpool Screw
13
W10168169 Whirlpool Switch
14
WP3391018 Whirlpool Wire Tie
15
WPL 8544937
16
Connector, Timer
17
3401144 Whirlpool Connector
18
SCREW GROUND
19
Harness, Wiring
20
WPL 8544957
21
Cover, Terminal Block
22
WP8568314 Whirlpool Strap
23
WP357213 Whirlpool Hinge Stopper
24
Top
25
WPL W10080820
26
Cap, End (L.H.)
27
3936144 Whirlpool Connector
28
WP8536939 Whirlpool Spring Clip
29
3400859 Whirlpool Screw
30
WP94614 Whirlpool Terminal
31
Panel, Control
32
Wire, Jumper (Temperature)
33
GROUND WIRE
34
WP489464 Whirlpool Refrigerator Screw
35
Screw, 8-32 x 5/16
36
W10113937 Whirlpool Clamp
←
