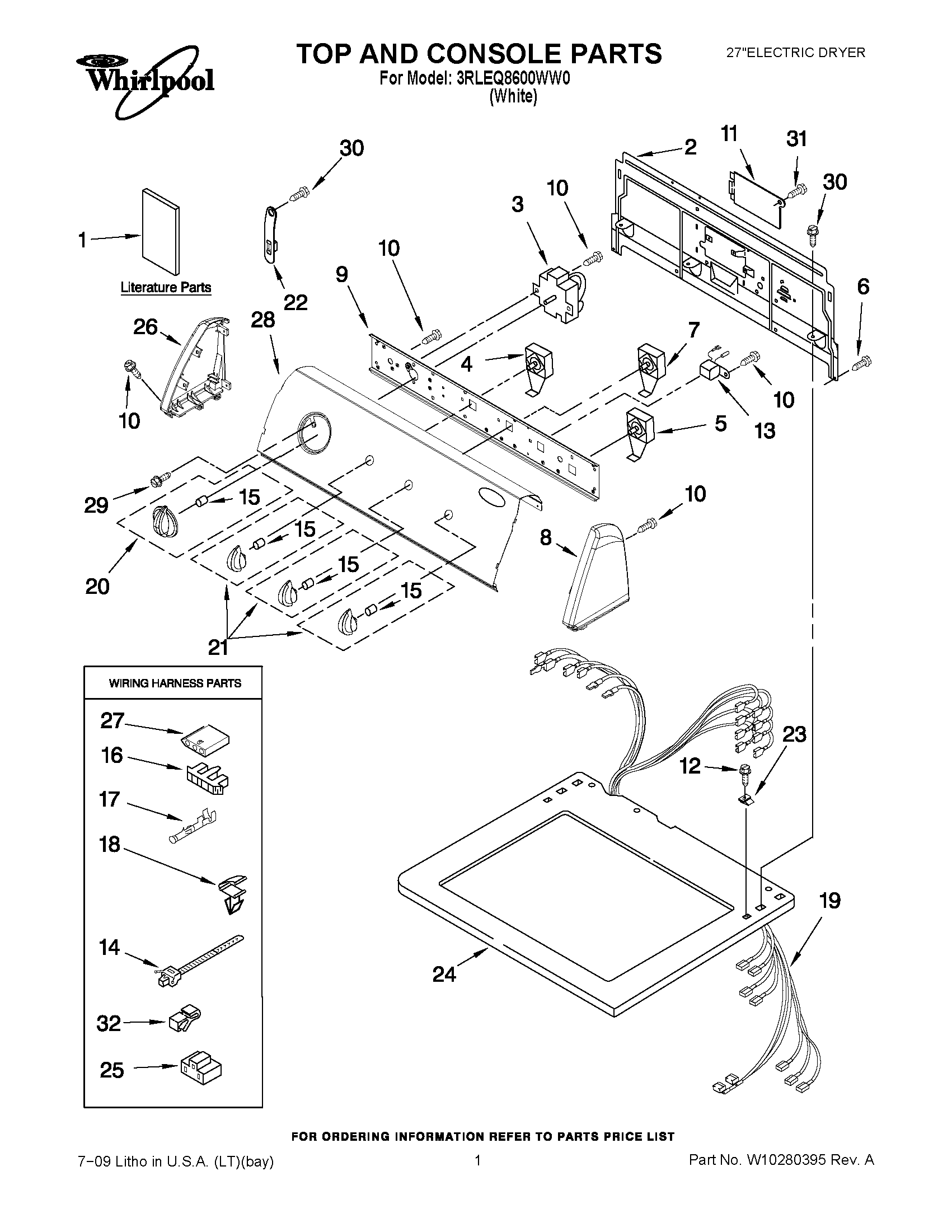

3RLEQ8600WW0 01 – TOP AND CONSOLE PARTS

3RLEQ8600WW0 01 – TOP AND CONSOLE PARTS

Written by

in

3RLEQ8600WW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Installation & User Guide
1INSTRUCTIONS, INSTALLATION
1WIRING DIAGRAM
1Guide, Use & Care
2W10121161 Whirlpool Rear Panel
3WPW10116281 Whirlpool Timer
4W10168170 Whirlpool Switch
5W10238464 Whirlpool Relay Parts
6SCREW GROUND
7W11235848 Whirlpool Switch
8W10820038 Whirlpool Endcap
9Bracket, Control
10WPL W10080820
11Cover, Terminal Block
12Screw, 8-18 x 1.25 (Panel to Top)
13Buzzer, Mini
14WP3391018 Whirlpool Wire Tie
15WP8536939 Whirlpool Spring Clip
16Connector, Timer
17WP94614 Whirlpool Terminal
18Clip, Harness
19HARNESS, WIRING
20WPL 8544957
21WPL 8544937
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
253401144 Whirlpool Connector
273936144 Whirlpool Connector
28CONTROL PANEL
293400859 Whirlpool Screw
30W10891954 Whirlpool Screw
31Screw, 8-32 x 5/16
32W10113937 Whirlpool Clamp
