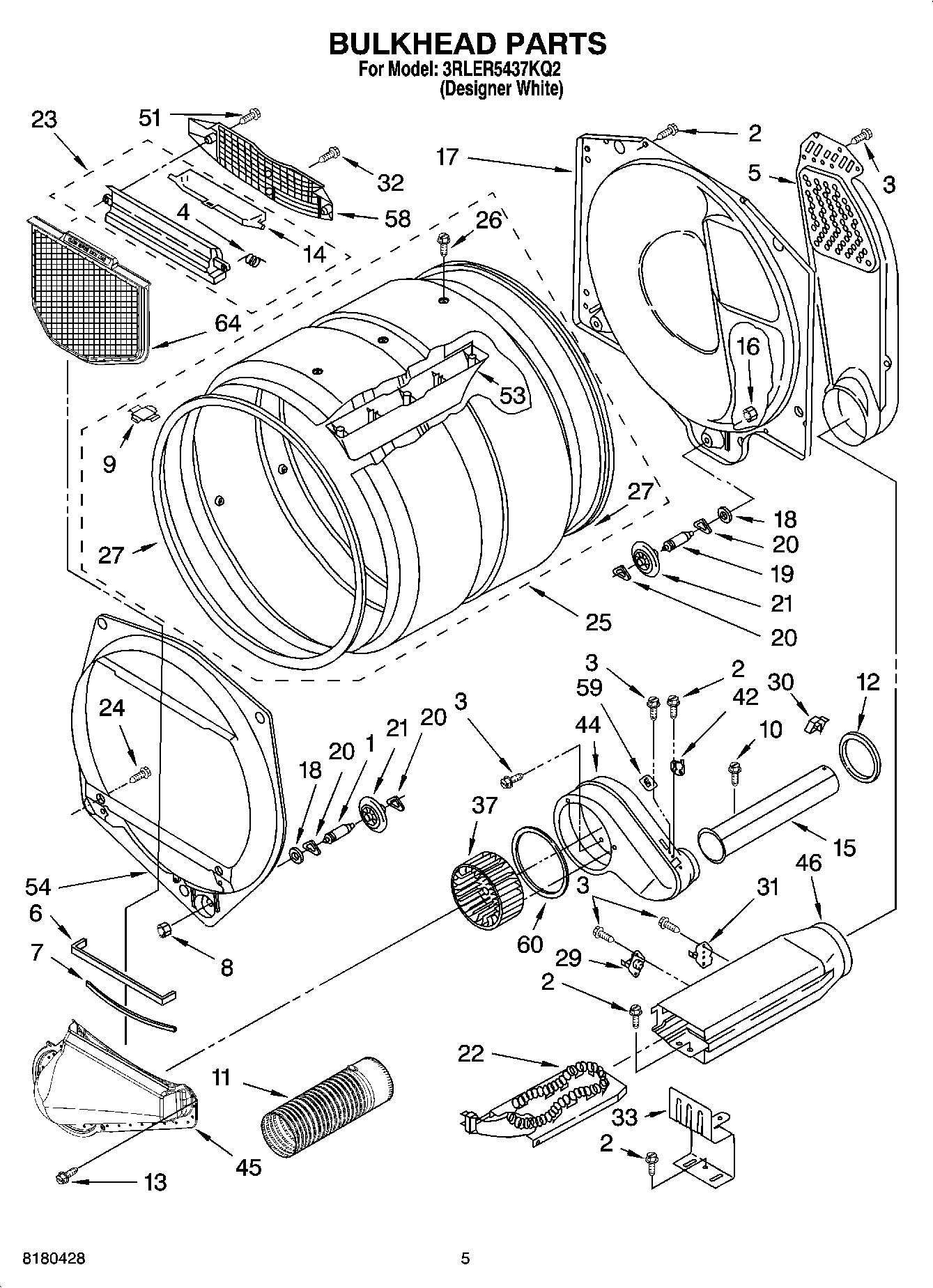

3RLER5437KQ2 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP90767 Whirlpool Screw
4	WP3394986 Whirlpool Spring
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	8066086 Whirlpool Plug
10	WPW10139210 Whirlpool Screw
11	Exhaust Duct (Corrugated)
12	W11233063 Whirlpool Shield Assembly
13	W11693756 Whirlpool Screw Assembly
14	W11222846 Whirlpool Door
15	279936 Whirlpool Exhaust Pipe
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	ELEMENT
23	W11129408 Whirlpool Out Housing
24	WP3387230 Whirlpool Screw
25	W10545923 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
29	WP3390291 Whirlpool High Limit Thermostat
30	WP3388229 Whirlpool Dryer Spring Clip
31	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
33	8066099 Whirlpool Bracket
37	WP697772 Whirlpool Dryer Blower Wheel
42	WP3387137 Whirlpool Thermostat
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
51	WP308685 Whirlpool Microwave Screw
53	WPW10113136 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	W11086603 Whirlpool Dryer Link Screen Air Grille
59	WP3392519 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
64	W10120998 Whirlpool Dryer Lint Screen Filter
