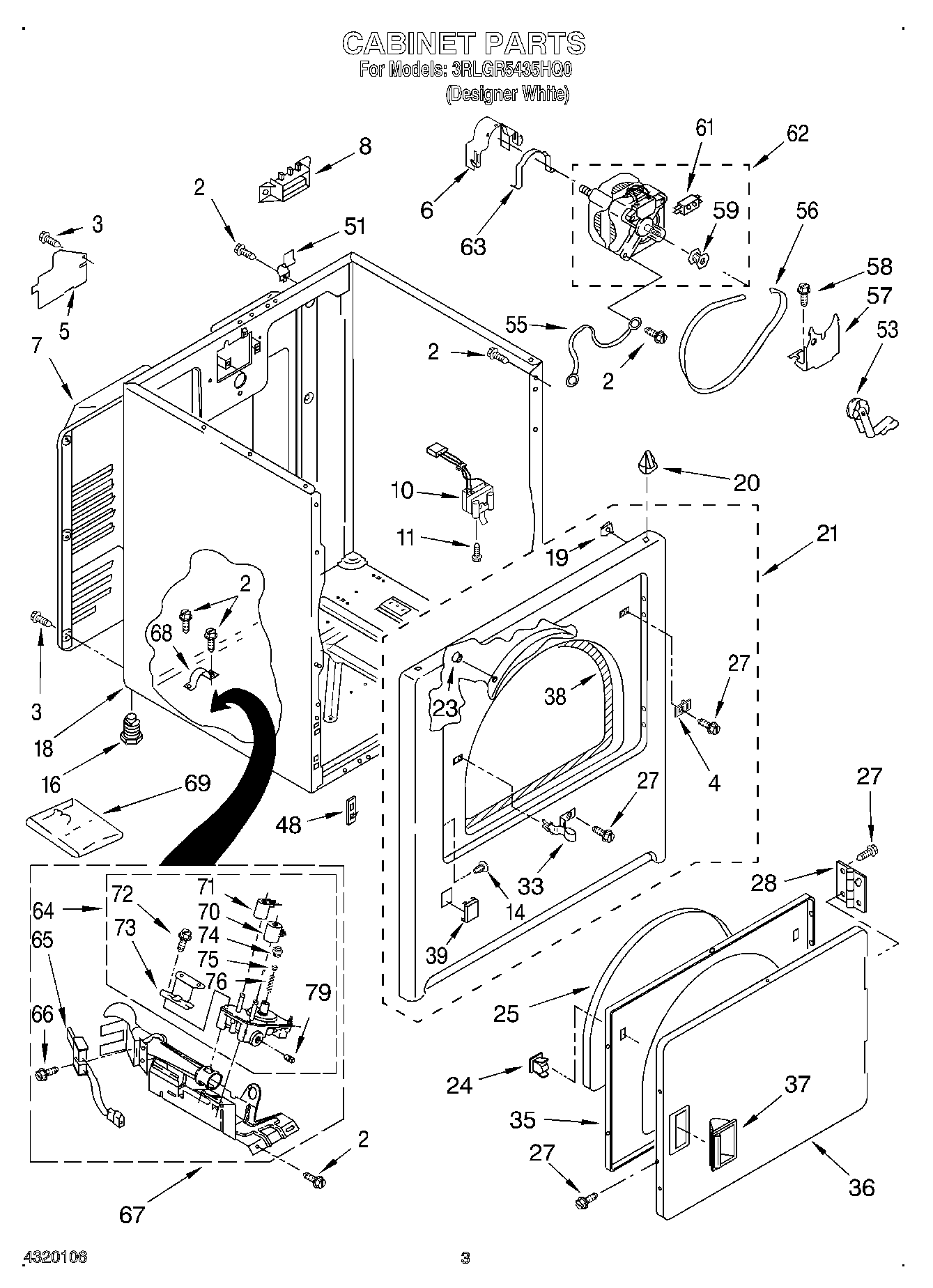

3RLGR5435HQ0 02 – CABINET

3RLGR5435HQ0 02 – CABINET

Written by

in

3RLGR5435HQ0 02 – CABINET

Products

PositionProduct
2SCREW
3WP693995 Whirlpool Screw
4WP3403630 Whirlpool Plug
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
8WP3397659 Whirlpool Terminal Block
10WP3406105 Whirlpool Door Switch
11WP3395530 Whirlpool Screw
14WP3404413 Whirlpool Plug
1649621 Whirlpool Leveling Feet
18Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25SEAL-DOOR DRYER
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39Plug, Front Panel (White)
48W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
55Wire, Ground (Motor)
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11618508 Whirlpool Drive Motor
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP8281918 Whirlpool Gas Valve
65279311 Whirlpool Dryer Flat Igniter with Bracket
66WPW10366705 Whirlpool Screw
67Burner Assembly, 50 Hz. (See Parts Page For Further Burner Breakdown)
68341029 Whirlpool Clamp
69695237 Whirlpool Gas LP Conversion
70WPY307931 Whirlpool Valve Coil
71WP307930 Whirlpool Coil Valve
72694421 Whirlpool Screw Assembly
73694538 Whirlpool Bracket
74WP694424 Whirlpool Limiter
75WP694423 Whirlpool Regulator
76WP694422 Whirlpool Spring
79W10295523 Whirlpool Plug
