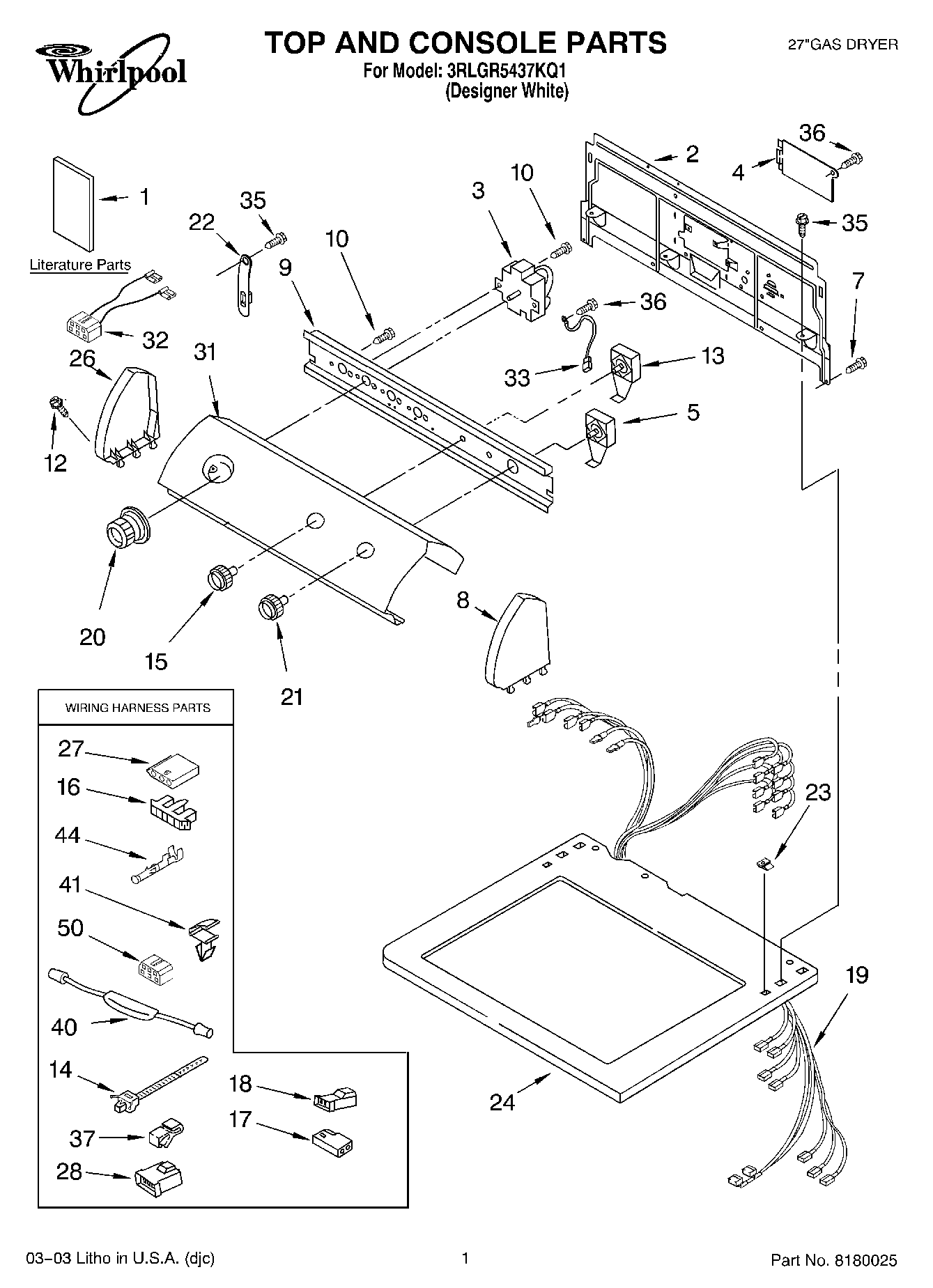

3RLGR5437KQ1 01 – TOP AND CONSOLE PARTS

3RLGR5437KQ1 01 – TOP AND CONSOLE PARTS

Written by

in

3RLGR5437KQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Instructions, Installation)
1Literature Parts (Installation & User Guide)
1Dryer
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Literature Parts (Guide, Use & Care)
1Literature Parts (Wiring Diagram)
2285909 Whirlpool Rear Panel
3TIMER
4WPW10119283 Whirlpool Terminal Cover
5WP3395382 Whirlpool Push To Start Switch
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
9Bracket, Control
10WPW10139210 Whirlpool Screw
12WP388326 Whirlpool Screw
133399638 Whirlpool Switch
14WP3391018 Whirlpool Wire Tie
15WP3957799 Whirlpool Knob
16Connector, Timer
17Receptacle, Latching (2-Way) (Uses Terminal 94614)
18WP3403499 Whirlpool Connector
19Harness, Wiring
20WP3957754 Whirlpool Knob Assembly
213957804 Whirlpool Knob
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top
273936144 Whirlpool Connector
28WP3403498 Whirlpool Connector
31Panel, Control
328283286 Whirlpool Wire Harness
33Wire, Ground
35WP488729 Whirlpool Refrigerator Door Screw
36303776 Whirlpool Dishwasher Screw
37W10113937 Whirlpool Clamp
40279872 Whirlpool Resistor
41WP3394427 Whirlpool Clip
44WP94614 Whirlpool Terminal
50Block, Disconnect
