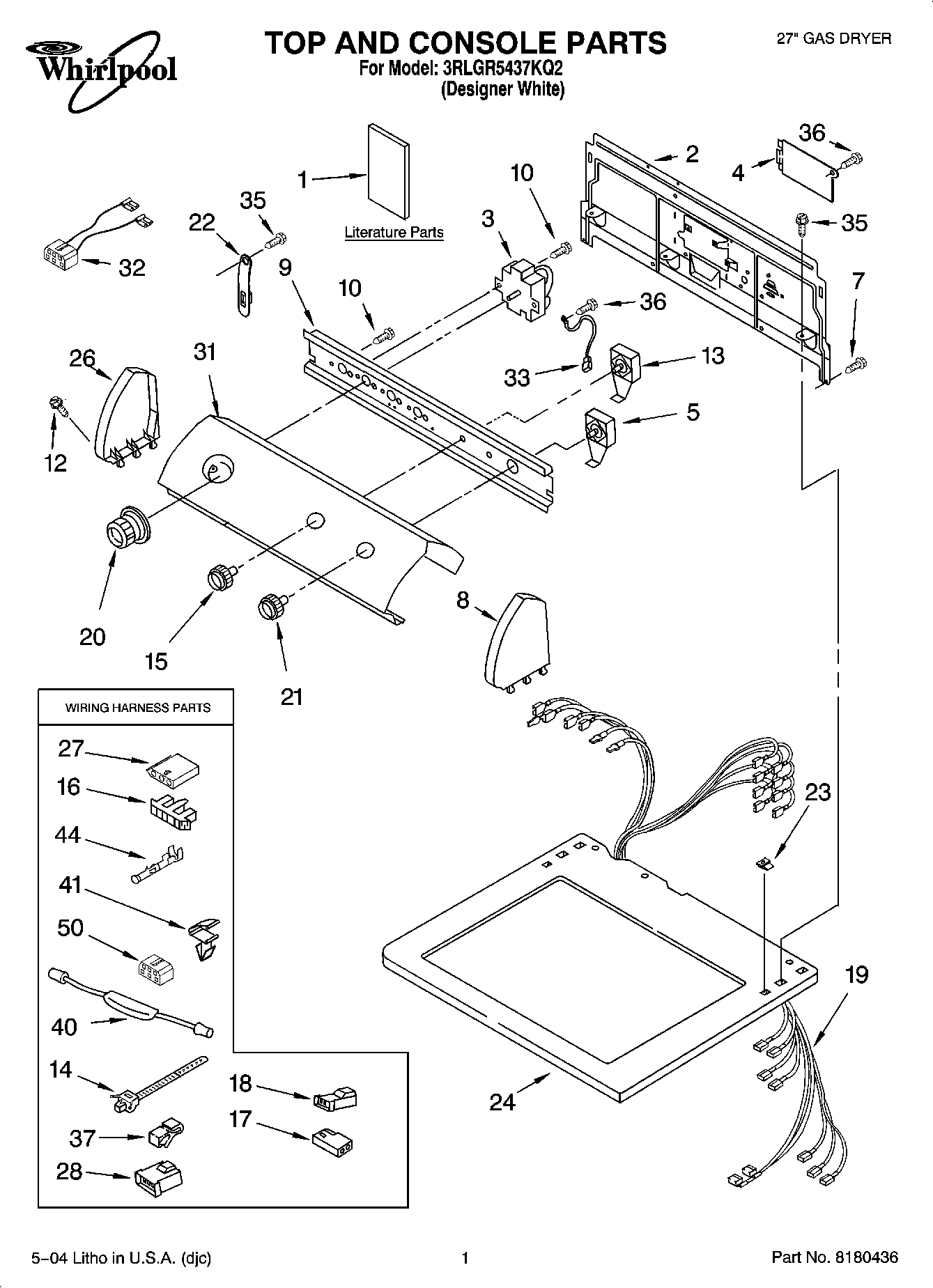

3RLGR5437KQ2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Installation & User Guide
1	WPL 677818
1	Wiring Diagram Guide, Use & Care
1	Literature Parts (UK)
1	Instructions, Installation
2	285909 Whirlpool Rear Panel
3	TIMER
4	WPW10119283 Whirlpool Terminal Cover
5	WP3395382 Whirlpool Push To Start Switch
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	Bracket, Control
10	WPW10139210 Whirlpool Screw
12	WP388326 Whirlpool Screw
13	3399638 Whirlpool Switch
14	WP3391018 Whirlpool Wire Tie
15	WP3957799 Whirlpool Knob
16	Connector, Timer
17	Receptacle, Latching (2-Way) (Uses Terminal 94614)
18	WP3403499 Whirlpool Connector
19	Harness, Wiring
20	WP3957754 Whirlpool Knob Assembly
21	3957804 Whirlpool Knob
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top
27	3936144 Whirlpool Connector
28	WP3403498 Whirlpool Connector
31	Panel, Control
32	8283286 Whirlpool Wire Harness
33	Wire, Ground
35	WP488729 Whirlpool Refrigerator Door Screw
36	303776 Whirlpool Dishwasher Screw
37	W10113937 Whirlpool Clamp
40	279872 Whirlpool Resistor
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
50	Block, Disconnect
