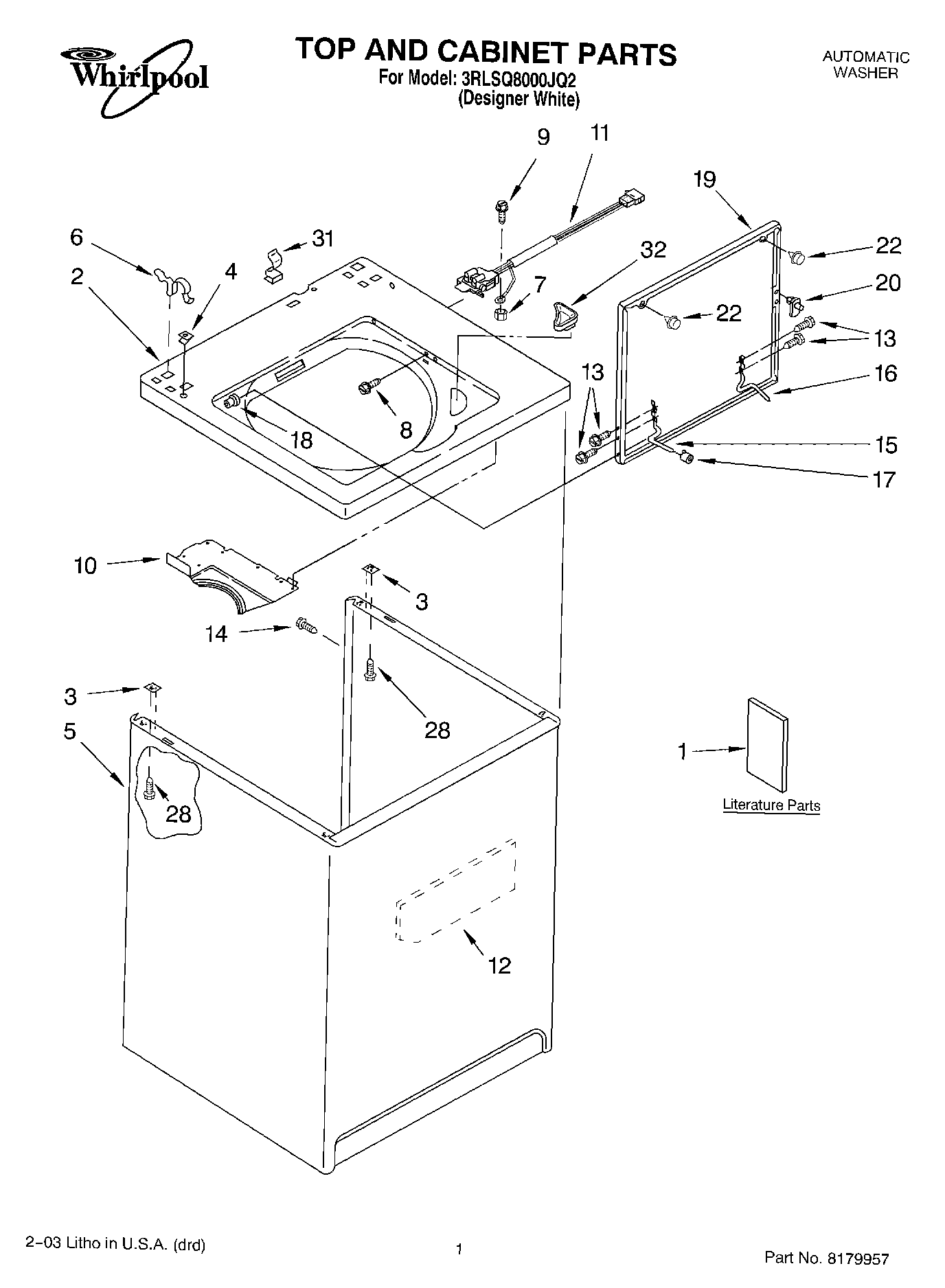

3RLSQ8000JQ2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Installation & User Guide)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	W10080180 Whirlpool Nut
8	WP3356311 Whirlpool Screw
9	WP3351614 Whirlpool Screw
10	Shield, Lid Switch
11	WP3950298 Whirlpool Lid Switch
12	Cabinet - Sound Damper
13	SCREW
14	WP308685 Whirlpool Microwave Screw
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	LID
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
