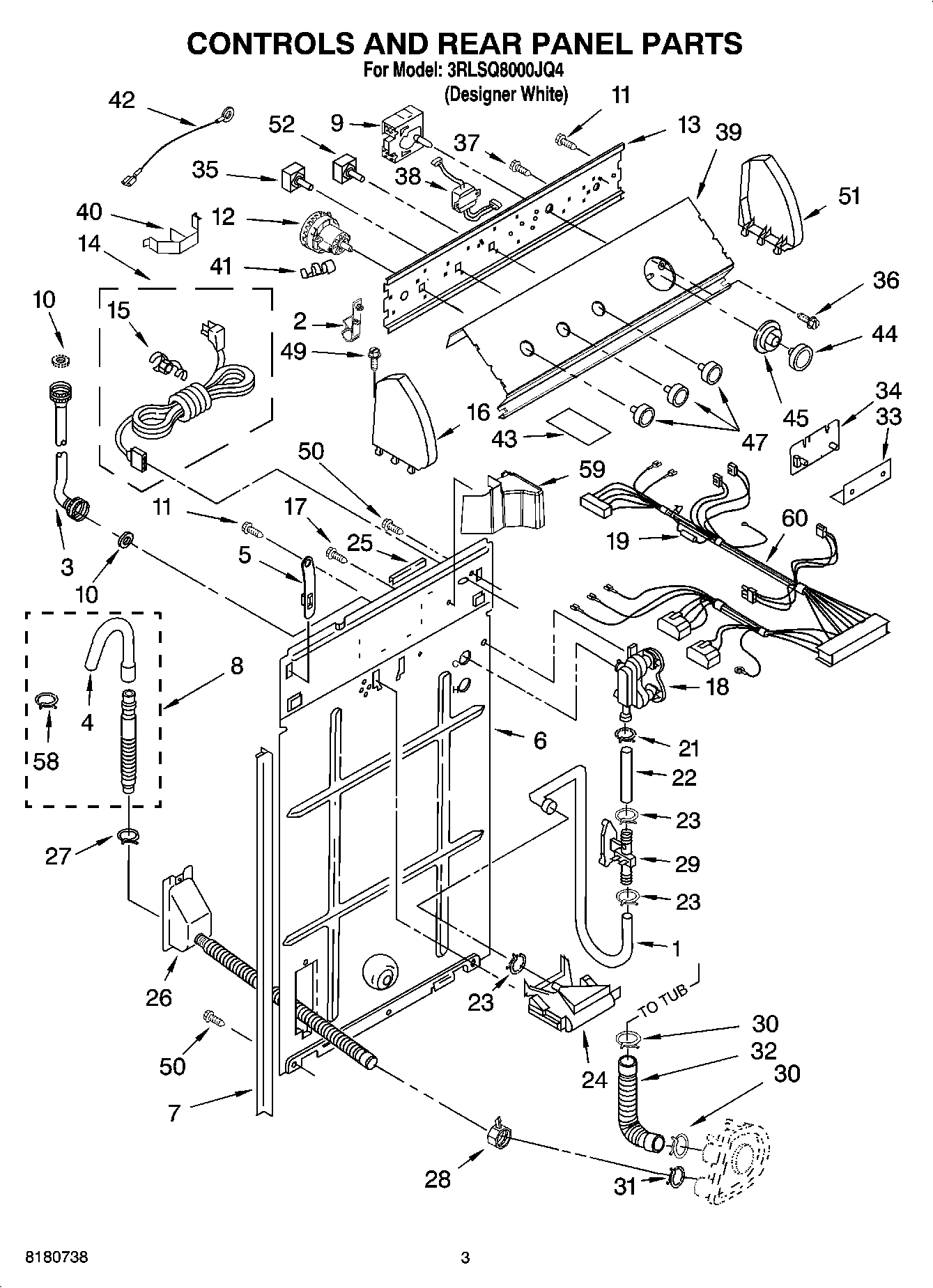

3RLSQ8000JQ4 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP3349365 Whirlpool Hose
2	Retainer, Harness
3	WPW10615809 Whirlpool Fill Hose
3	WPW10615831 Whirlpool Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
10	WP16123 Whirlpool Washer
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	Cord, Power
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3360397 Whirlpool Valve
19	WPW10111181 Whirlpool Fuse Assembly
21	WP596669 Whirlpool Hose Clamp
22	WP3357319 Whirlpool Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Edge Protector
26	WPW10358151 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Clamp, Hose
29	Sensor-ETC-Inline
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Shield, ATC
34	WPW10110247 Whirlpool Electronic Control Board
35	W10851055 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	Screw (6)
38	3407160 Whirlpool Transformer
39	Panel, Console
40	Clip, Harness & Pressure Hose
41	W10113937 Whirlpool Clamp
42	Wire, Ground
43	Extension, Shield
44	W10807860 Whirlpool White Control Knob
45	WP3957849 Whirlpool Timer Dial
47	WP3957799 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	Switch, Rotary (Temperature)
58	WP3357331 Whirlpool Clamp
59	Sh
60	WPL 3956868
