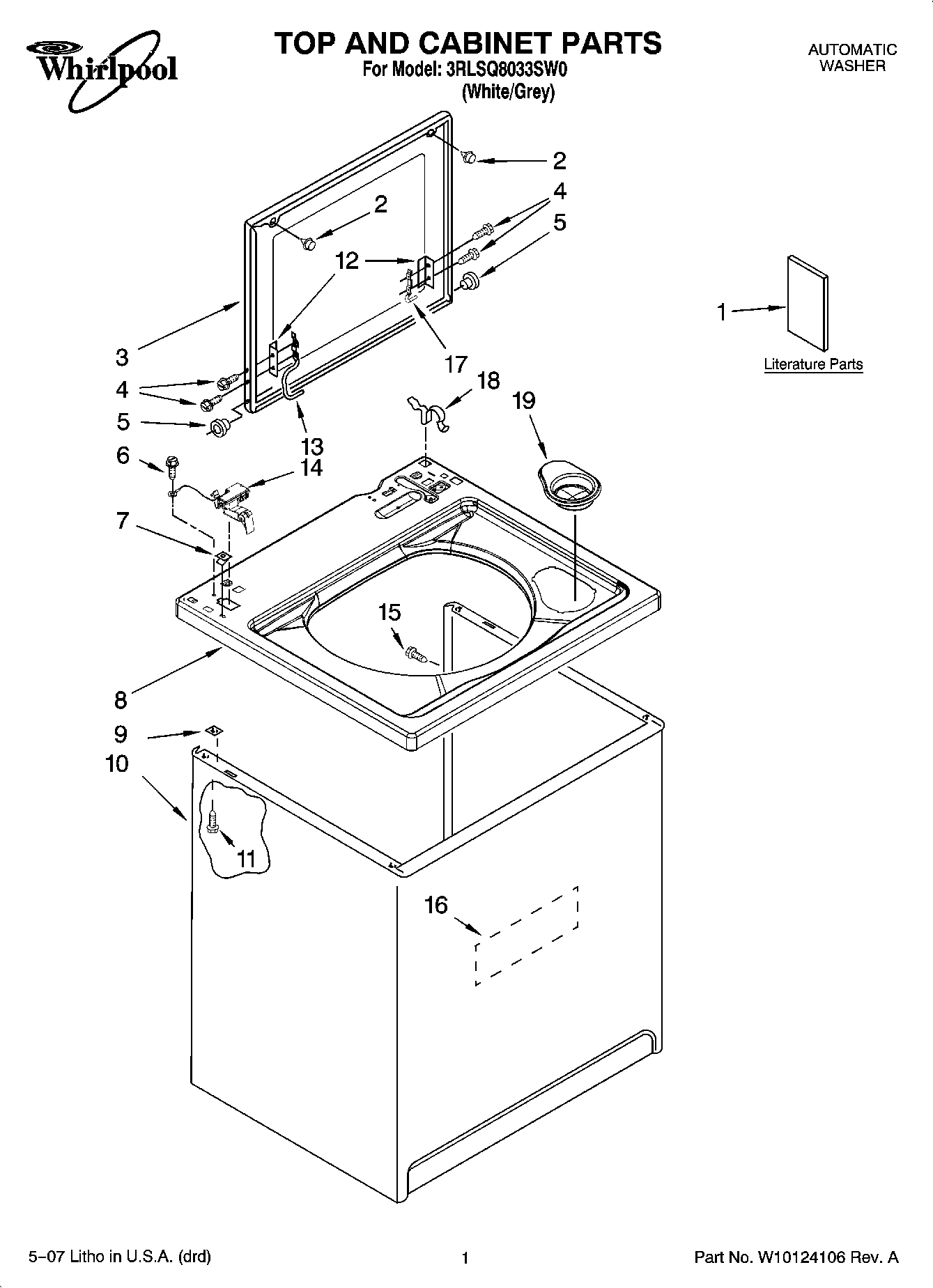

3RLSQ8033SW0 01 – TOP AND CABINET PARTS

3RLSQ8033SW0 01 – TOP AND CABINET PARTS

Written by

in

3RLSQ8033SW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Installation & User Guide
1Wiring Diagram
1Use & Care Guide
2WP9724509 Whirlpool Bumper
3LID
4SCREW
5Bearing, Lid Hinge (2)
6Screw, 10-16 x 1/2
7WP357213 Whirlpool Hinge Stopper
8Top (White)
9WP62750 Whirlpool Spacer
1063424 Whirlpool Cabinet Assembly
11Screw, 10-16 x 3/8 (4)
12WP21097 Whirlpool Pad
13Hinge, Lid (L.H.)
14WP8318084 Whirlpool Washer Lid Switch Assembly
15Screw, 10-16 x 1/2
16Cabinet – Sound Damper
17WP91770 Whirlpool Hinge
18WP62780 Whirlpool Cabinet Clip
19Dispenser, Bleach
