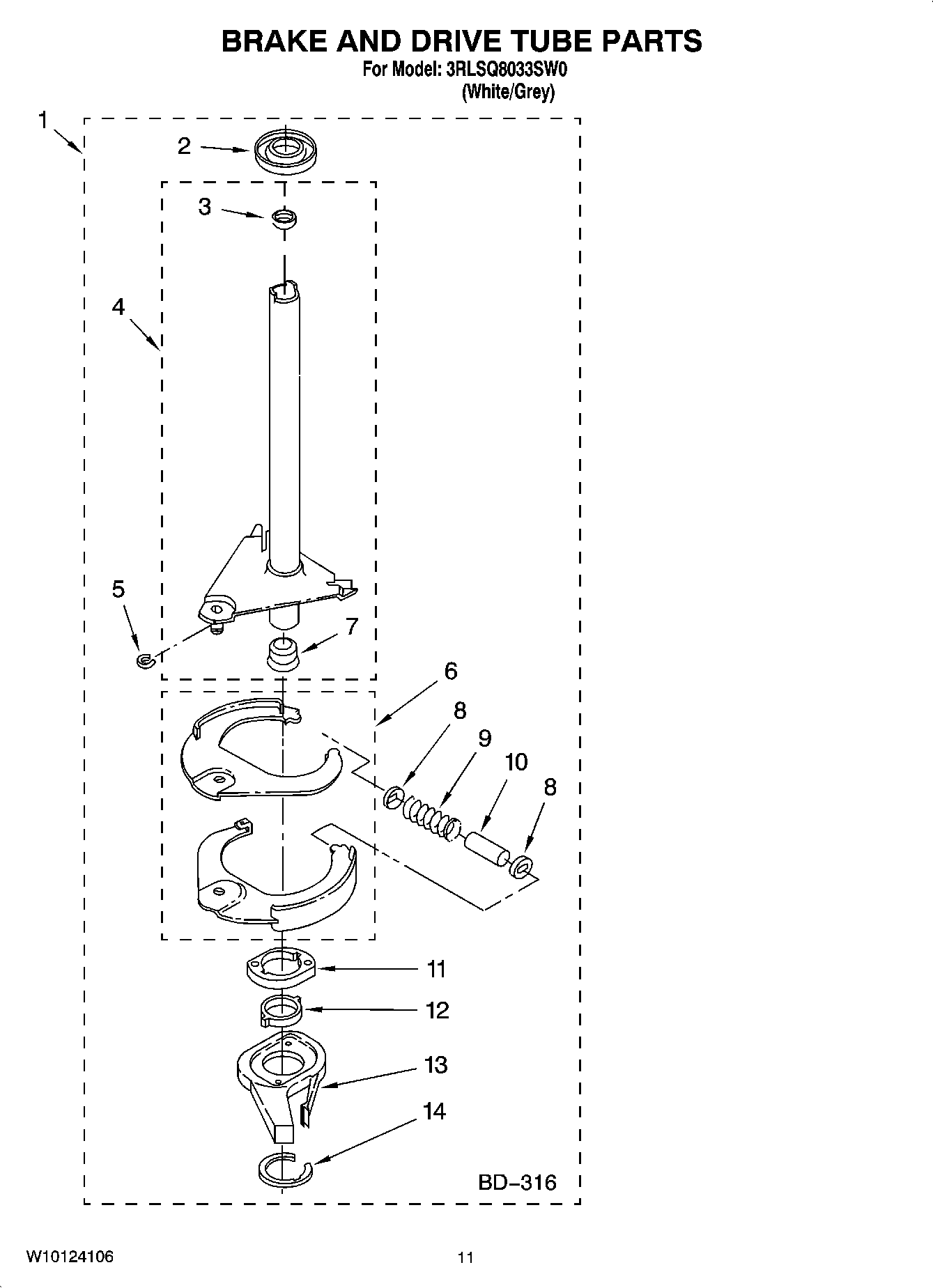

3RLSQ8033SW0 07 – BRAKE AND DRIVE TUBE PARTS

3RLSQ8033SW0 07 – BRAKE AND DRIVE TUBE PARTS

Written by

in

3RLSQ8033SW0 07 – BRAKE AND DRIVE TUBE PARTS

Products

PositionProduct
1WPW10117003 Whirlpool Drive Basket
2WP62658 Whirlpool Seal Ring
3WP356427 Whirlpool Shaft Seal
4Tube, Basket Drive
5W10083190 Whirlpool Ring-E
6285438 Whirlpool Brake Shoe
7WP8546462 Whirlpool Bearing
8285658 Whirlpool Sleeve Kit
9Spring, Brake
11WP8546461 Whirlpool Brake Cam Assembly
12WP63022 Whirlpool Sleeve
13285790 Whirlpool Washer Clutch Band and Lining Kit
14LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
14WPW10083200 Whirlpool Wire Ring
14Following Parts Not Illustrated
