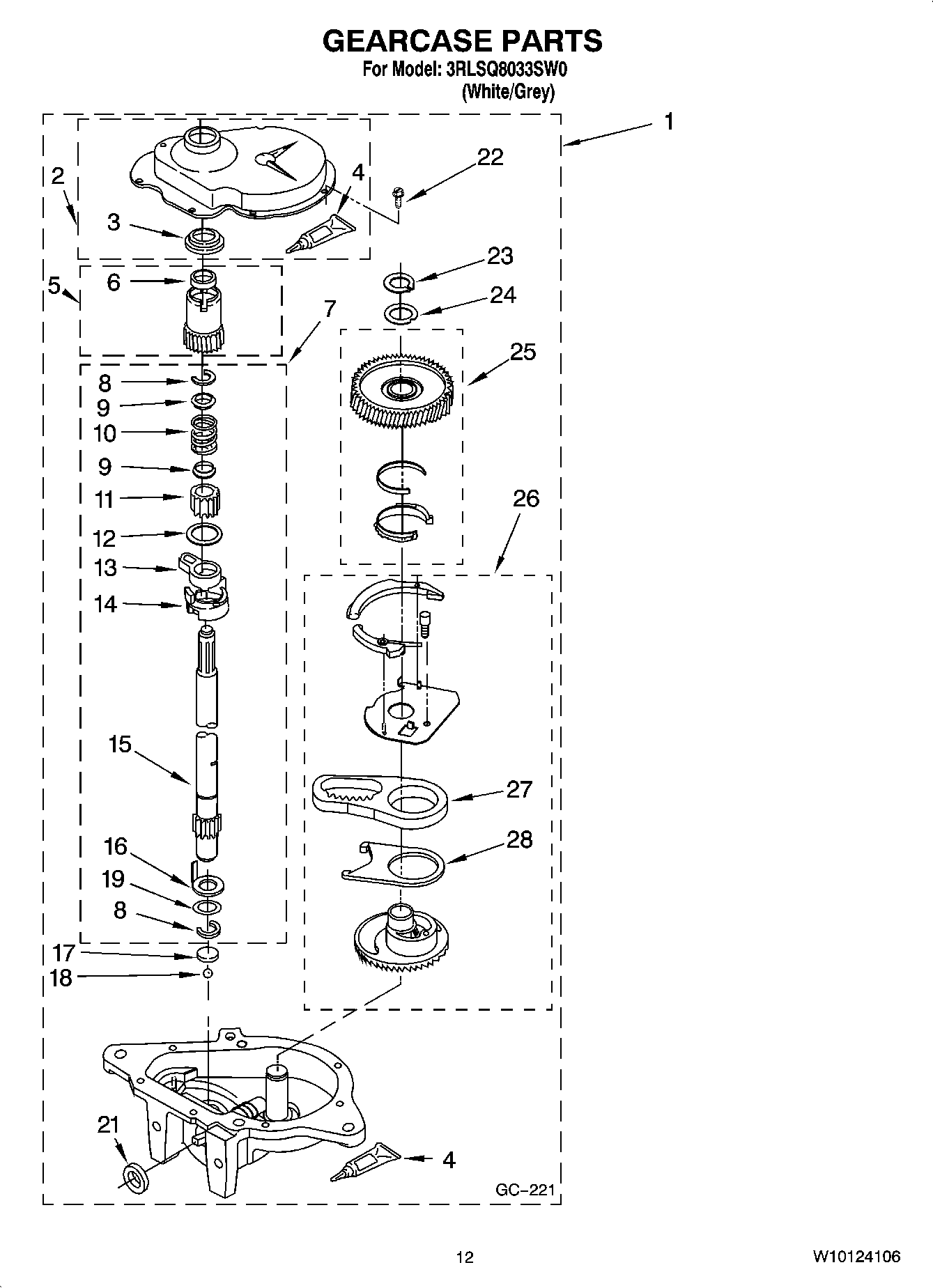

3RLSQ8033SW0 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	280129A Whirlpool Break Switch
	40922 Whirlpool Drain Hose Extension Kit
	WP285195 Whirlpool Sealer Assembly
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	OIL
	LUBRICANT
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	ACCESSORY PARTS
	Drain Hose Adapter Kit
	799344 Whirlpool Refrigerator Paint
	SEALER
1	Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
2	285202 Whirlpool Cover Assembly
3	WP3349985 Whirlpool Shaft Seal
6	WP356427 Whirlpool Shaft Seal
8	Ring, Retaining (2)
9	62677 Whirlpool Retainer
10	Spring, Agitator
12	Washer, Agitate Gear
14	WP389387 Whirlpool Agitator Shaft
15	Shaft, Agitator
16	Washer, Cam Thrust
17	285205 Whirlpool Bearing
19	Washer, Intermediate
21	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22	Screw, 10-16 x 1/2
23	Ring, Retaining
24	WPL 285766
25	WPW10233584 Whirlpool Spin Gear
26	Neutral Assembly
28	3360629 Whirlpool Washer Gearcase Transmission
