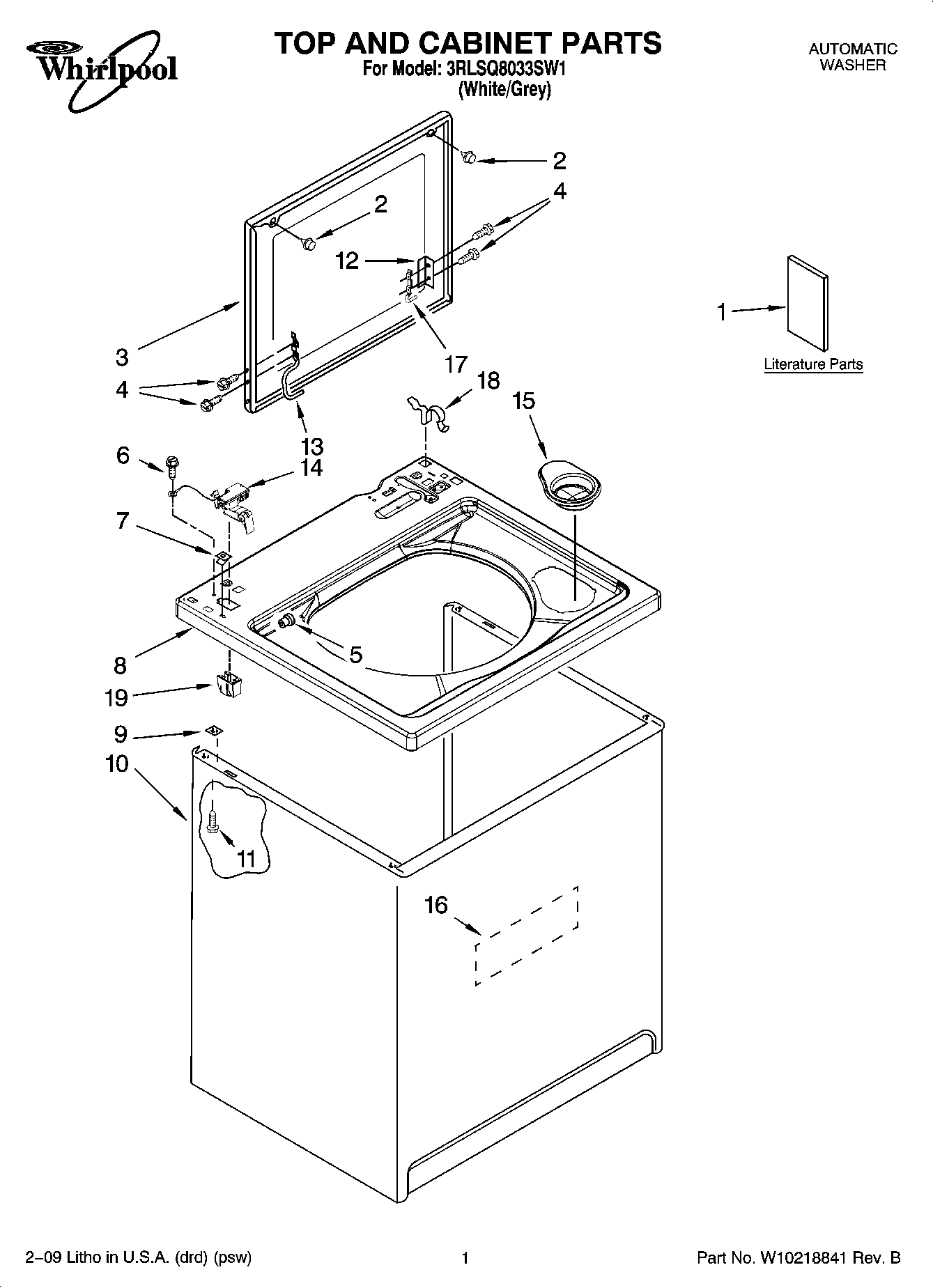

3RLSQ8033SW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Installation & User Guide
1	Use & Care Guide
1	Installation Instructions
1	Wiring Diagram
2	WP9724509 Whirlpool Bumper
3	LID
4	SCREW
5	Bearing, Lid Hinge (2)
6	Screw, 10-16 x 1/2
7	WP357213 Whirlpool Hinge Stopper
8	Top (White)
9	WP62750 Whirlpool Spacer
10	63424 Whirlpool Cabinet Assembly
11	W10165554 Whirlpool Screw
12	WP21097 Whirlpool Pad
13	Hinge, Lid (L.H.)
14	Switch, Lid
15	Dispenser, Bleach
16	W11096159 Whirlpool Sound ABS Assembly
17	WP91770 Whirlpool Hinge
18	WP62780 Whirlpool Cabinet Clip
19	Shield, Lid Switch
