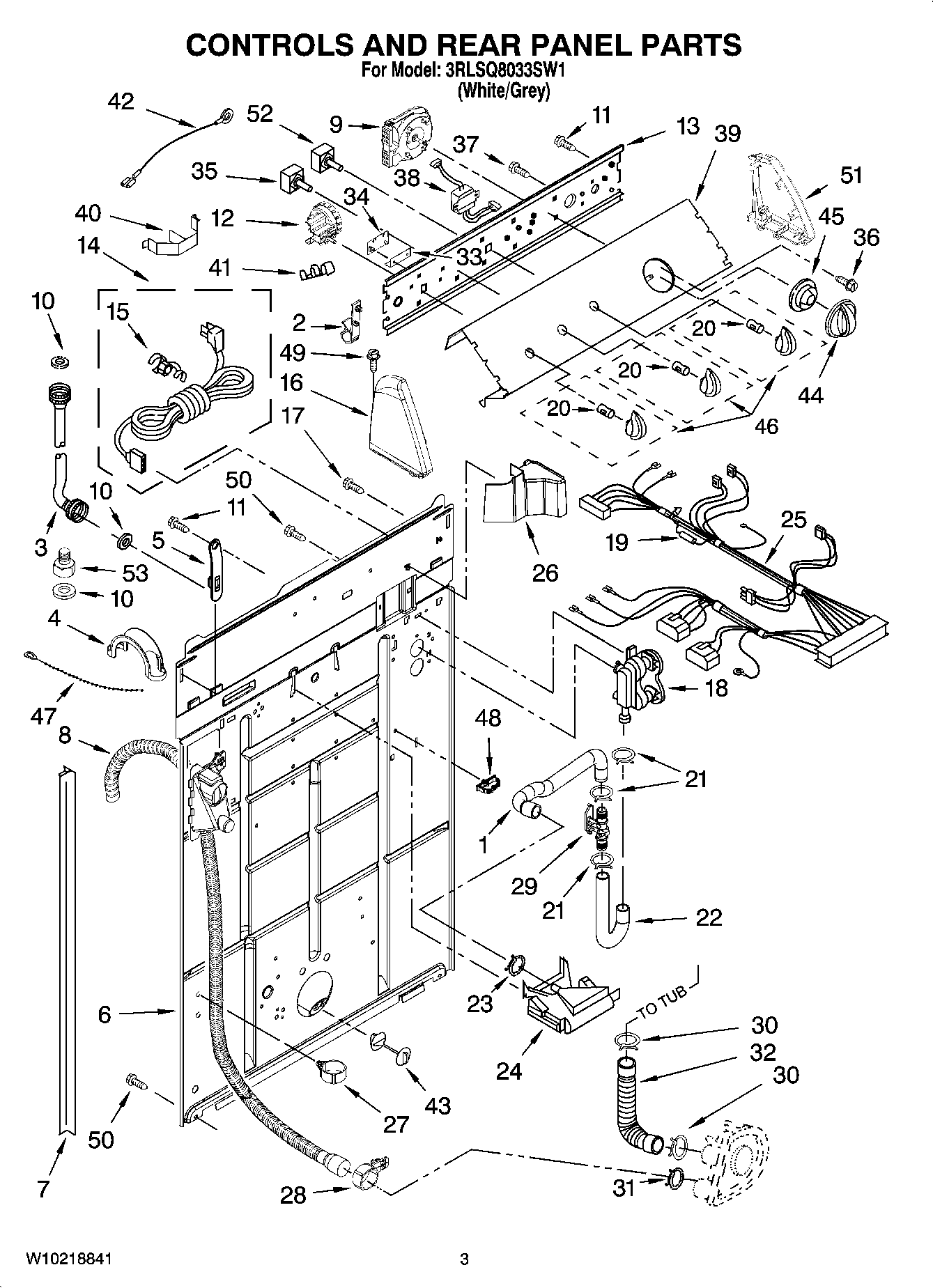

3RLSQ8033SW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP3349365 Whirlpool Hose
2	Retainer, Harness
3	WPW10615831 Whirlpool Fill Hose
3	WPW10615809 Whirlpool Fill Hose
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WPW10096921 Whirlpool Hose
9	WPW10222216 Whirlpool Timer
10	WP16123 Whirlpool Washer
11	Screw, 8-18 x 3/8
12	W10339334 Whirlpool Washer Water Level Control Switch
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	Screw, 10-16 x 1/2
18	WP3360397 Whirlpool Valve
19	WPW10111181 Whirlpool Fuse Assembly
20	WP8536939 Whirlpool Spring Clip
22	WP3357319 Whirlpool Hose
23	WP596669 Whirlpool Hose Clamp
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Harness, Wiring (For Detail See Pages 9 & 10)
26	Sh
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	Sensor-ETC-Inline
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Shield, ATC
34	WPW10110247 Whirlpool Electronic Control Board
35	WPW10168262 Whirlpool Cycle Switch
36	WP3400818 Whirlpool Screw
37	Screw, Ground
38	3407160 Whirlpool Transformer
39	Panel, Console
40	Clip, Harness & Pressure Hose
41	W10113937 Whirlpool Clamp
42	GROUND WIRE
43	WP8519200 Whirlpool Support Assembly
44	Kn
45	WP8544947 Whirlpool Dial
46	WPL 8544937
47	WPW10339879 Whirlpool Wire Tie
48	Clip, Harness
49	Screw, 8-18 x 1.25 (Panel to Top)
50	Screw, 10-16 x 5/16
51	Cap, End (R.H.)
52	Switch, Rotary
53	WP3357397 Whirlpool Adapter
