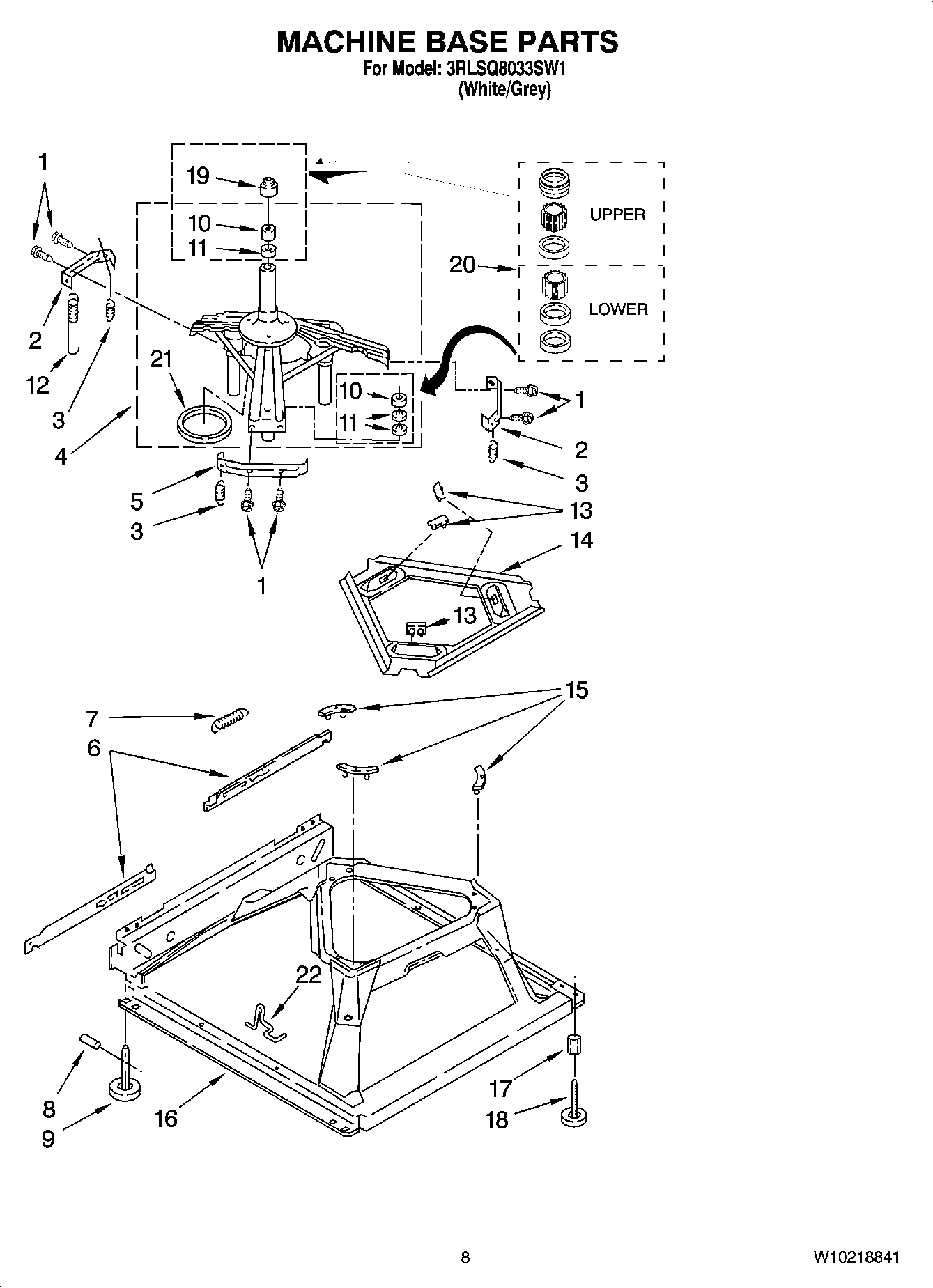

3RLSQ8033SW1 05 – MACHINE BASE PARTSadmin2025-04-26T12:24:32+00:003RLSQ8033SW1 05 – MACHINE BASE PARTS
Products
| Position | Product |
|---|
| 1 | Screw, Bracket Mounting (10-32 x 5/8) |
| 2 | WP64067 Whirlpool Bracket |
| 3 | WP63907 Whirlpool Washer Suspension Spring |
| 4 | Support & Brake, Tub |
| 5 | Bracket, Spring Outer (L.F.) |
| 6 | Link, Leveling Mechanism (2) |
| 7 | 8316845 Whirlpool Washer Spring |
| 8 | WP62837 Whirlpool Dowel Pin |
| 9 | Foot, Rear (2) |
| 10 | WP8546455 Whirlpool Bearing |
| 11 | W11095997 Whirlpool Seal |
| 12 | WPW10250667 Whirlpool Washer Suspension Spring |
| 13 | 285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack |
| 14 | WP3946509 Whirlpool Skate Plate |
| 15 | 285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack |
| 16 | Base Assembly (Includes Items 6, 7, 8, 9, 15 & 22) |
| 17 | Nut, Lock (2) (3/8-16) |
| 18 | W11177593 Whirlpool Leveling Feet |
| 19 | WP8577376 Whirlpool Seal |
| 20 | 285203 Whirlpool CP Bearing |
| 21 | WP63134 Whirlpool Ring |
| 22 | WPW10145155 Whirlpool Retainer |
