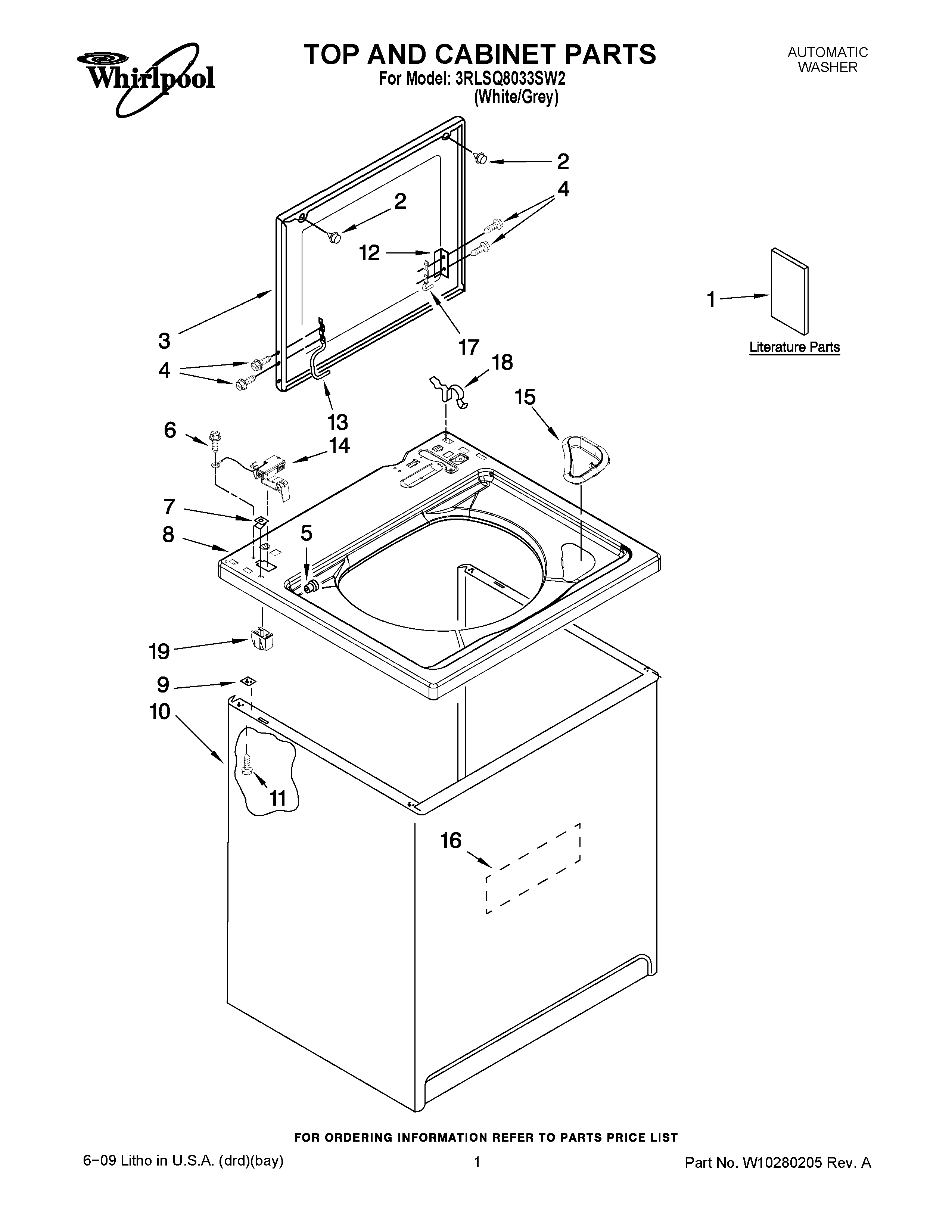

3RLSQ8033SW2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Installation & User Guide
1Wiring Diagram
2WP9724509 Whirlpool Bumper
3LID
4SCREW
5Bearing, Lid Hinge (2)
6Screw, 10-16 x 1/2
7WP357213 Whirlpool Hinge Stopper
8TOP
9WP62750 Whirlpool Spacer
1063424 Whirlpool Cabinet Assembly
11WP3390631 Whirlpool Screw
12WP21097 Whirlpool Pad
13Hinge, Lid (L.H.)
14Switch, Lid
15WPW10192089 Whirlpool Washer Bleach Dispenser
16W11096159 Whirlpool Sound ABS Assembly
17WP91770 Whirlpool Hinge
18WP62780 Whirlpool Cabinet Clip
19Shield, Lid Switch
