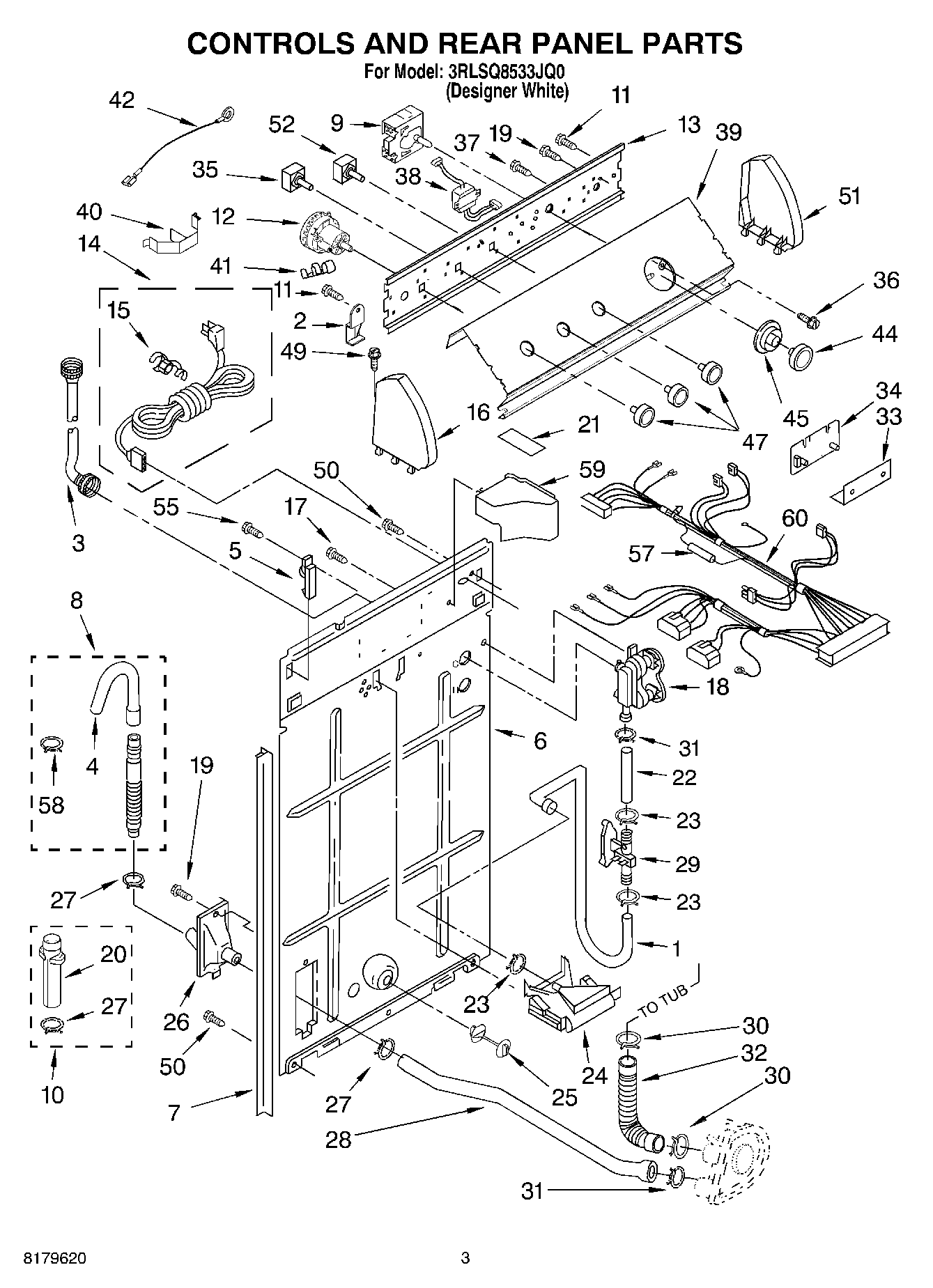

3RLSQ8533JQ0 02 – CONTROLS AND REAR PANEL

3RLSQ8533JQ0 02 – CONTROLS AND REAR PANEL

Written by

in

3RLSQ8533JQ0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP3349365 Whirlpool Hose
2Retainer, Harness
3WPW10615831 Whirlpool Fill Hose
3WPW10615809 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6Panel, Rear
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10Kit, Adapter (Includes Illus. Nos. 17 & 29)
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power
15Strain Relief, Power Cord
17WP3351614 Whirlpool Screw
18WP3360397 Whirlpool Valve
203363920A Whirlpool Adapter Assembly
21Extension, Shield
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
29Sensor-ETC-Inline
30WP616099 Whirlpool Clamp
31WP596669 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Shield, ATC
34WPW10110247 Whirlpool Electronic Control Board
35W10851055 Whirlpool Cycle Switch
36W10915367 Whirlpool Screw Assembly
37WP3400064 Whirlpool Screw
383407160 Whirlpool Transformer
39Panel, Console
40Clip, Harness & Pressure Hose
41W10113937 Whirlpool Clamp
42Wire, Ground
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
52SWTCH-TEMP
55WP488729 Whirlpool Refrigerator Door Screw
57WPW10111181 Whirlpool Fuse Assembly
58WP3357331 Whirlpool Clamp
59Shield, Inlet
60WPL 3955488
