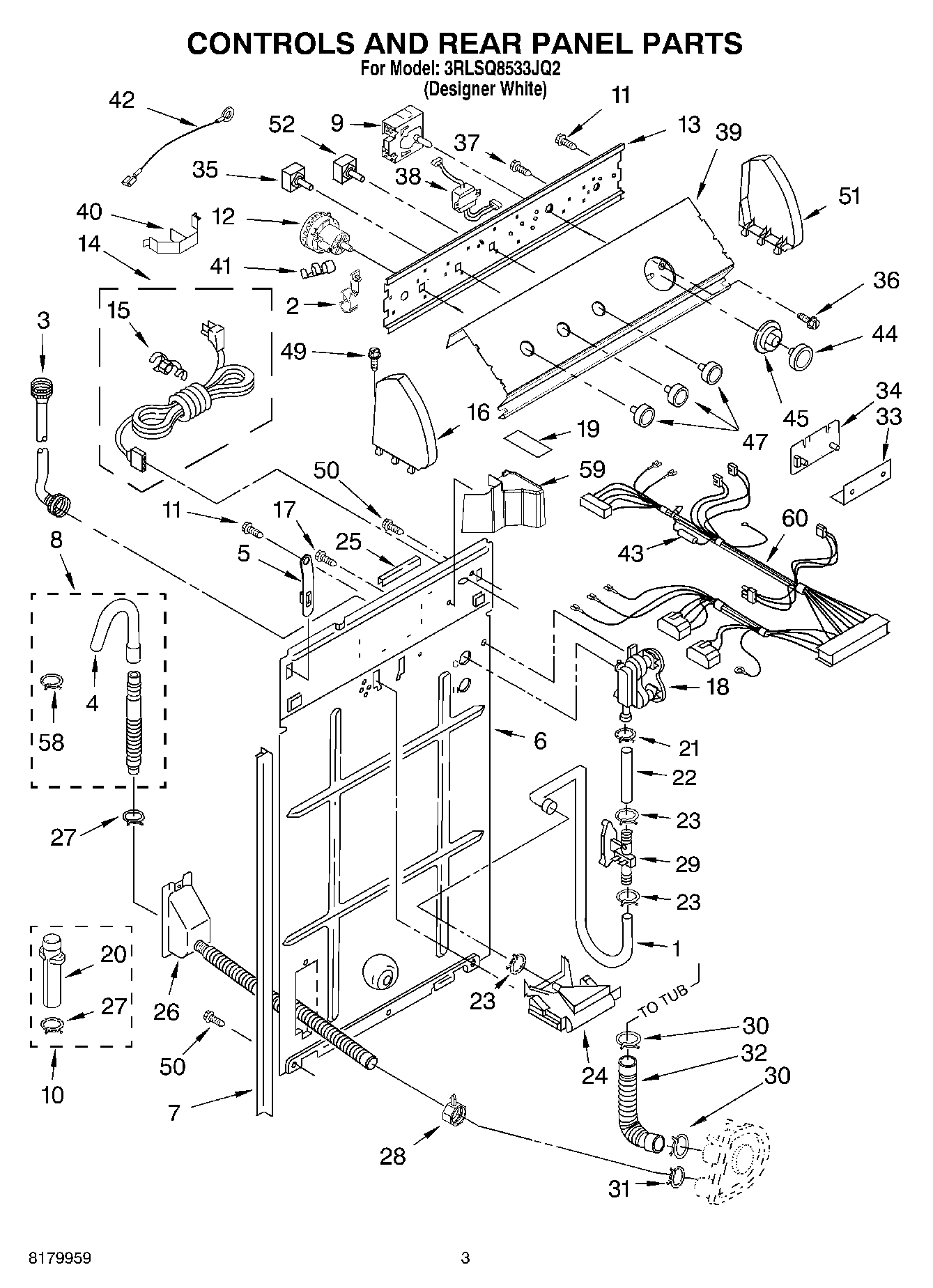

3RLSQ8533JQ2 02 – CONTROLS AND REAR PANEL PARTS

3RLSQ8533JQ2 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

3RLSQ8533JQ2 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP3349365 Whirlpool Hose
2Retainer, Harness
3WPW10615831 Whirlpool Fill Hose
3WPW10615809 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285664 Whirlpool Drain Hose
8285666 Whirlpool Drain Hose 10'
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10Kit, Adapter (Includes Illus. Nos. 17 & 29)
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power
15Strain Relief, Power Cord
17WP3351614 Whirlpool Screw
18WP3360397 Whirlpool Valve
19Extension, Shield
203363920A Whirlpool Adapter Assembly
21WP596669 Whirlpool Hose Clamp
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WPL 8317941
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
29Sensor-ETC-Inline
30WP616099 Whirlpool Clamp
31WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
33Shield, ATC
34WPW10110247 Whirlpool Electronic Control Board
35W10851055 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
37Screw (6)
383407160 Whirlpool Transformer
39Panel, Console
40Clip, Harness & Pressure Hose
41W10113937 Whirlpool Clamp
42Wire, Ground
43WPW10111181 Whirlpool Fuse Assembly
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
52SWTCH-TEMP
58WP3357331 Whirlpool Clamp
59Sh
60WPL 3956201
60WP3357450 Whirlpool Washer Assembly
60WP3357397 Whirlpool Adapter
60WPL ARI140288A
