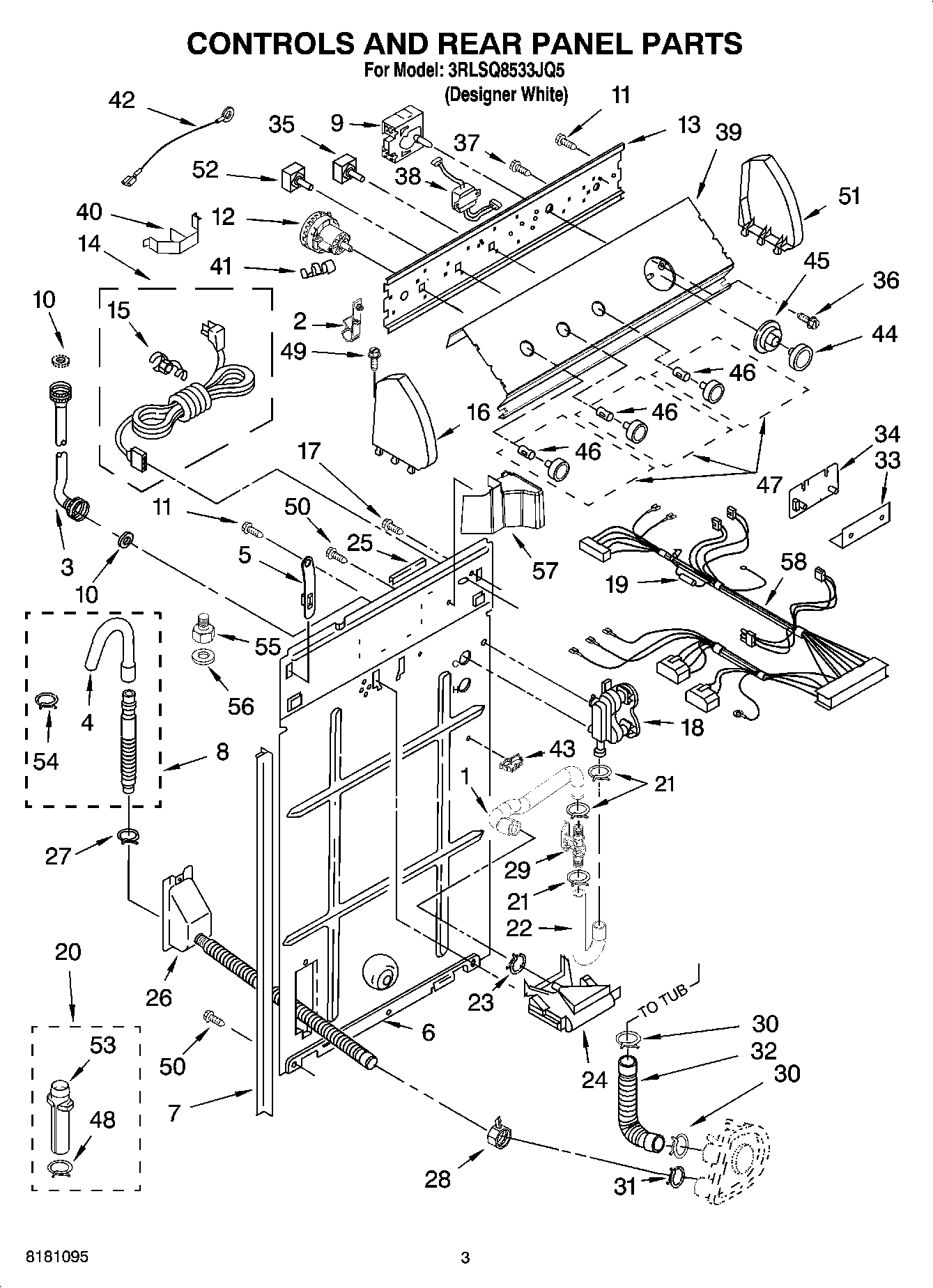

3RLSQ8533JQ5 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP3349365 Whirlpool Hose
2Retainer, Harness
3WPW10615831 Whirlpool Fill Hose
3WPW10615809 Whirlpool Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10WP16123 Whirlpool Washer
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power
15Strain Relief, Power Cord
17WP3351614 Whirlpool Screw
18WP3360397 Whirlpool Valve
19WPW10111181 Whirlpool Fuse Assembly
20Kit, Adapter (Includes Illus. Nos. 17 & 29)
21WP596669 Whirlpool Hose Clamp
22WP3357319 Whirlpool Hose
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WPW10358151 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
29Sensor-ETC-Inline
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Shield, ATC
34WPW10110247 Whirlpool Electronic Control Board
35W10851055 Whirlpool Cycle Switch
36WP3400818 Whirlpool Screw
37Screw (6)
383407160 Whirlpool Transformer
39Panel, Console
40Clip, Harness & Pressure Hose
41W10113937 Whirlpool Clamp
42Wire, Ground
43Clip, Harness
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
46WP8536939 Whirlpool Spring Clip
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
52SWTCH-TEMP
533363920A Whirlpool Adapter Assembly
54WP3357331 Whirlpool Clamp
55WP3357397 Whirlpool Adapter
56WP3357450 Whirlpool Washer Assembly
57Sh
58Miscellaneous Parts Bag
58WPL 3956870
58WPL ARI140300A
