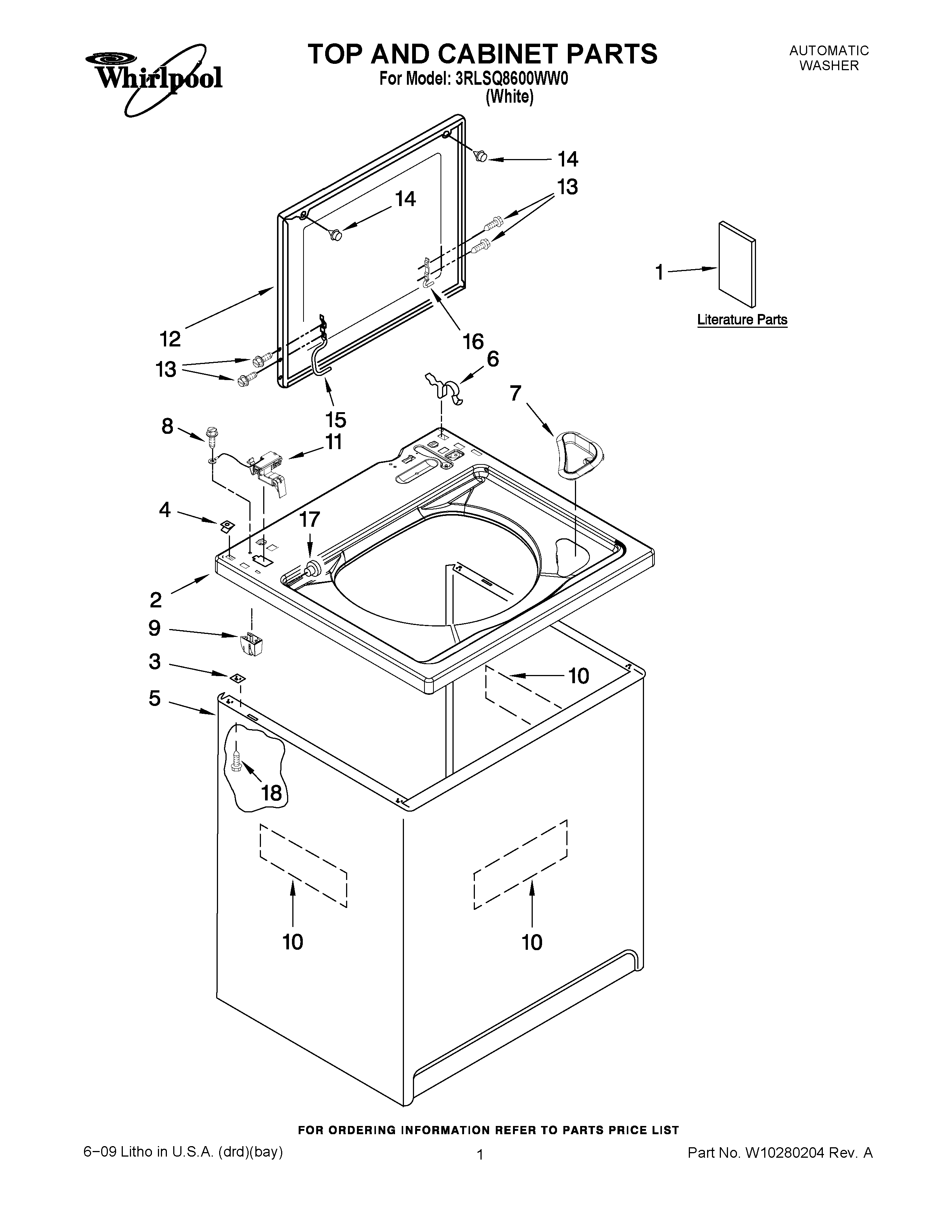

3RLSQ8600WW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Wiring Diagram
1	Installation & User Guide
1	ENERGY GUIDE
1	USE & CARE GUIDE
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WPW10192089 Whirlpool Washer Bleach Dispenser
8	Screw, 10-16 x 1/2
9	Shield, Lid Switch
10	W11096159 Whirlpool Sound ABS Assembly
11	Switch, Lid
12	Lid
13	SCREW
14	WP9724509 Whirlpool Bumper
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
17	Bearing, Lid Hinge (2)
18	WP3390631 Whirlpool Screw
