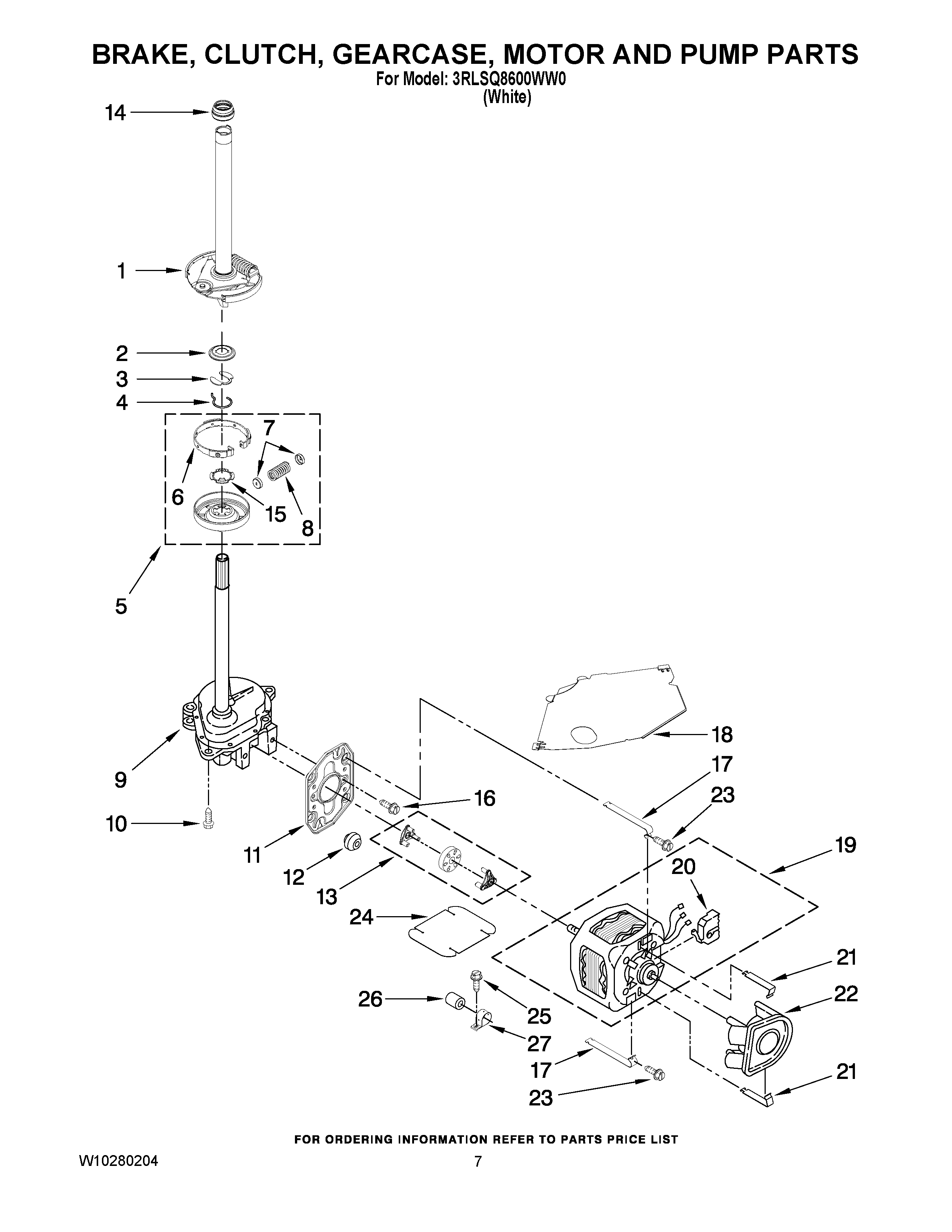

3RLSQ8600WW0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

3RLSQ8600WW0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

3RLSQ8600WW0 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10117003 Whirlpool Drive Basket
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5WPW10116968 Whirlpool Clutch
6W10118761 Whirlpool Lining
7WP62646 Whirlpool Cap
8WP3946792 Whirlpool Spring
9Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
10Screw, Gearcase To Base (3)
11WP62611 Whirlpool Plate
12WP62691 Whirlpool Grommet
13285753A Whirlpool Washer Direct Drive Motor Coupling
14WP8577374 Whirlpool Seal Shaft
15Clip, Anti-Rattle
16SCREW
17WPW10086010 Whirlpool Motor Retainer Clip
18W10838408 Whirlpool Motor Shield
19Motor, Main Drive
20Switch, Main Drive Motor
21WP8546127 Whirlpool Retainer Clip
22WP3363394 Whirlpool Washer Drain Pump
23WP273556 Whirlpool Screw
248316060 Whirlpool Shield
25Screw, 10-16 x 5/16
26WP482156 Whirlpool Refrigerator Capacitor
27Clamp, Capacitor
