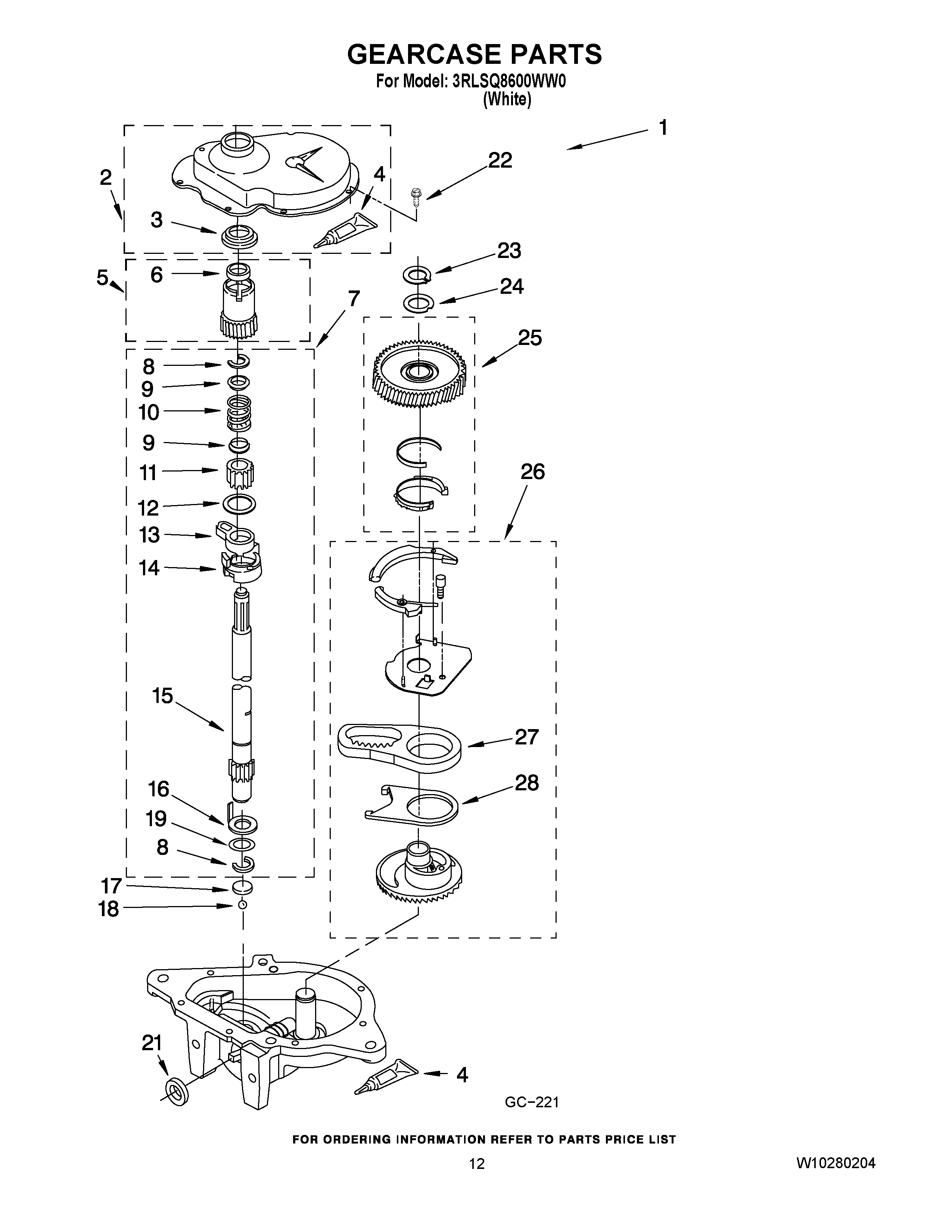

3RLSQ8600WW0 08 – GEARCASE PARTS

3RLSQ8600WW0 08 – GEARCASE PARTS

Written by

in

3RLSQ8600WW0 08 – GEARCASE PARTS

Products

PositionProduct
1Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
2285202 Whirlpool Cover Assembly
3WP3349985 Whirlpool Shaft Seal
4WP285195 Whirlpool Sealer Assembly
6WP356427 Whirlpool Shaft Seal
8Ring, Retaining (2)
962677 Whirlpool Retainer
10Spring, Agitator
12Washer, Agitate Gear
14WP389387 Whirlpool Agitator Shaft
15Shaft, Agitator
16Washer, Cam Thrust
17285205 Whirlpool Bearing
19Washer, Intermediate
21285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22Screw, 10-16 x 1/2
23Ring, Retaining
24WPL 285766
25WPW10233584 Whirlpool Spin Gear
26Neutral Assembly
283360629 Whirlpool Washer Gearcase Transmission
