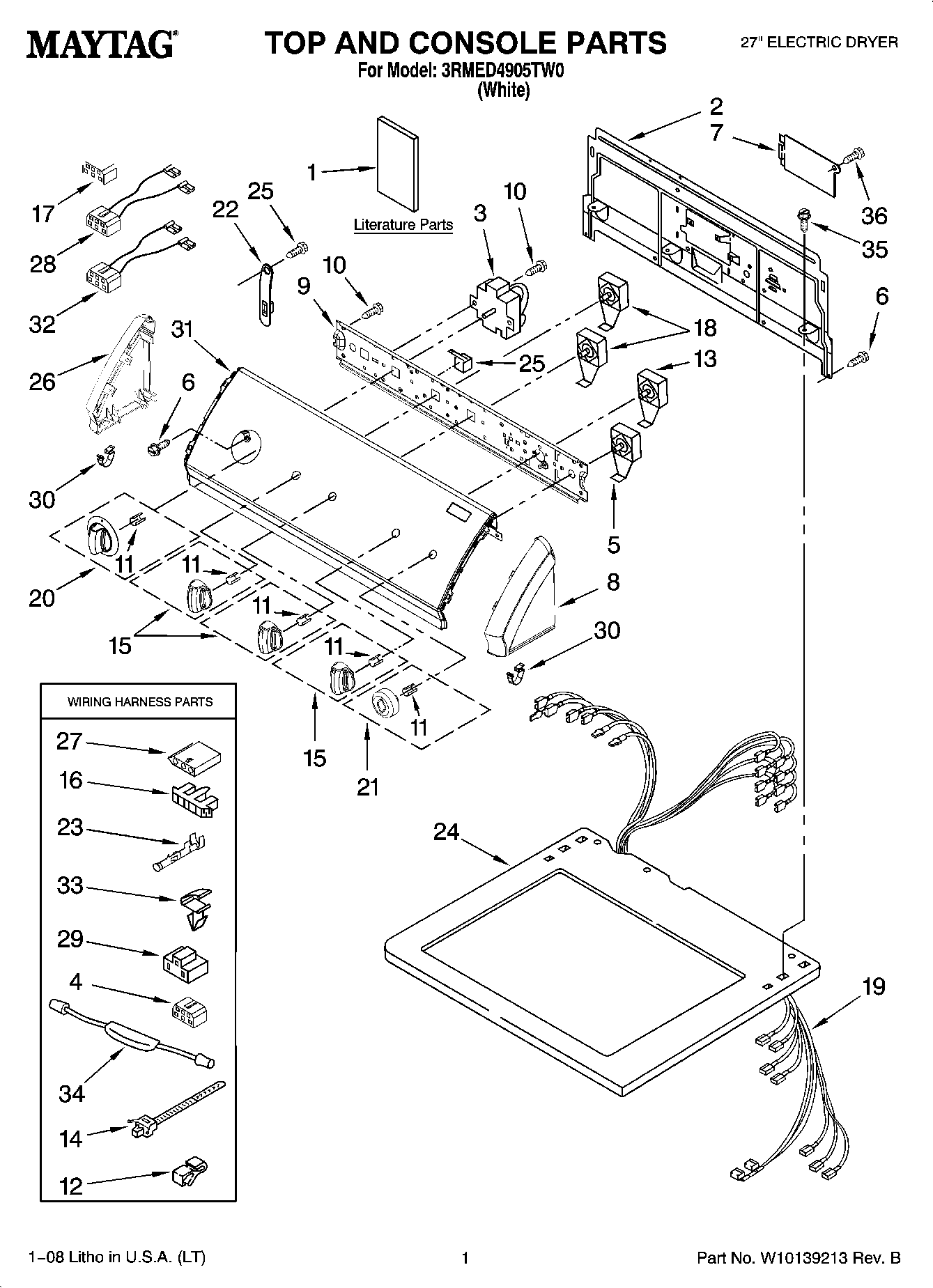

3RMED4905TW0 01 – TOP AND CONSOLE PARTS

3RMED4905TW0 01 – TOP AND CONSOLE PARTS

Written by

in

3RMED4905TW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10127856
1MAY W10134184
1MAY W10131549
2MAY W10121161
3MAY W10116281
4Connector
5MAY W10119074
6Screw, 8-18 x 3/8
7MAY W10119283
8MAY W10128463
9MAY 8559504
10MAY W10080820
11CLIP, SPRING
12MAY 357572
13Switch, (End Of Cycle)
14MAY 3391018
15MAY W10043430
16Connector-Timer
17MAY W10134274
18Switch-Rotary
19MAY W10134255
20MAY W10043460
21Knob, Push-To-Start
22Strap, Console
23Terminal
24TOP
25Mini-Buzzer
26MAY W10128464
27MAY 3936144
28MAY W10134277
29Connector (PTS) Relay
30MAY W10129041
31MAY W10123194
32MAY W10135126
33CLIP, HARNESS
34MAY 8283170
35Screw, 6-20 x 3/8
36MAY W10130935
