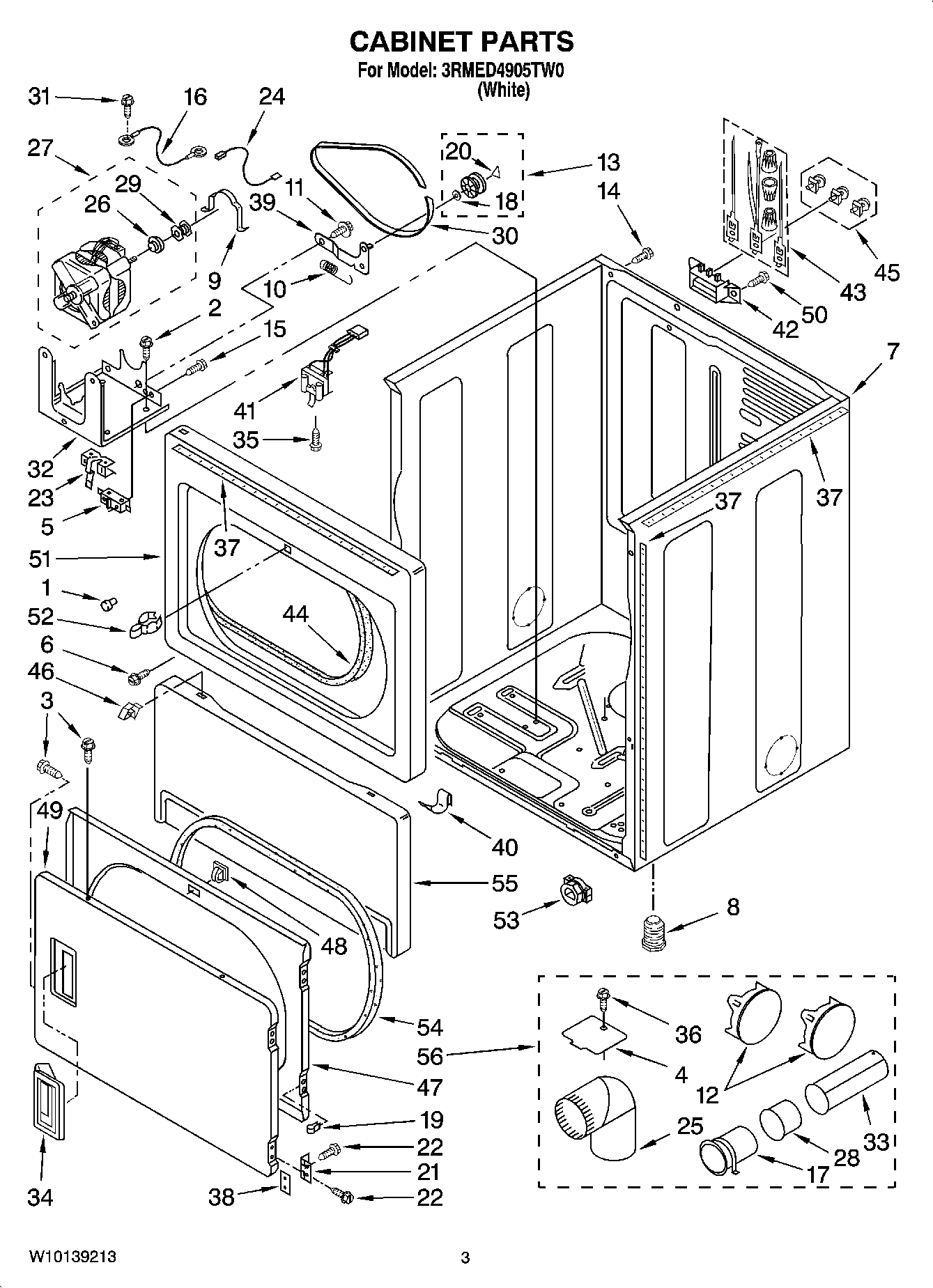

3RMED4905TW0 02 – CABINET PARTSadmin2025-04-26T09:14:29+00:003RMED4905TW0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | BUMPER |
| 2 | MAY W10130935 |
| 3 | MAY W10080300 |
| 4 | MAY 3394331 |
| 5 | MAY 8318457 |
| 6 | MAY W10080800 |
| 7 | MAY 8310656 |
| 8 | MAY 279810 |
| 8 | MAY 3392100 |
| 9 | MAY 660658 |
| 10 | MAY 3387374 |
| 11 | MAY W10080670 |
| 12 | MAY 697750 |
| 13 | ASSEMBLY, PULLEY |
| 14 | MAY W10080830 |
| 15 | MAY W10118188 |
| 16 | MAY 340025 |
| 17 | PIPE, EXHAUST (MEDIUM) |
| 18 | MAY W10121334 |
| 19 | Nut, Inner Door (4) |
| 20 | WASHER, TRI RING |
| 21 | Hinge & Pin Assembly (2) |
| 22 | MAY W10080700 |
| 23 | Lever, Snap Switch |
| 24 | MAY 3394081 |
| 25 | MAY 49026 |
| 26 | MAY 3393657 |
| 27 | Motor Assembly (50 Hz.) |
| 28 | MAY 8563750 |
| 29 | MAY 3402548 |
| 30 | MAY 3387610 |
| 31 | MAY W10080760 |
| 32 | MAY 3387118 |
| 33 | PIPE, EXHAUST (LONG) |
| 34 | Handle, Door (White) |
| 35 | MAY W10080540 |
| 36 | Screw |
| 37 | SEAL-FOAM (IEC) |
| 38 | MAY 3390902 |
| 39 | MAY W10118754 |
| 40 | Clip (2) |
| 41 | MAY 3406109 |
| 42 | MAY 3397659 |
| 43 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 44 | MAY 3387242 |
| 45 | MAY 279393 |
| 46 | RETAINER |
| 47 | MAY 3392563 |
| 48 | MAY 3392538 |
| 49 | MAY 3387872 |
| 50 | MAY W10080710 |
| 51 | MAY 8317373 |
| 52 | Strike, Door |
| 53 | Clip, Strain Relief |
| 54 | MAY 3390735 |
| 55 | Toe Panel (Includes Item. 2) (White) |
| 56 | MAY 279818 |
