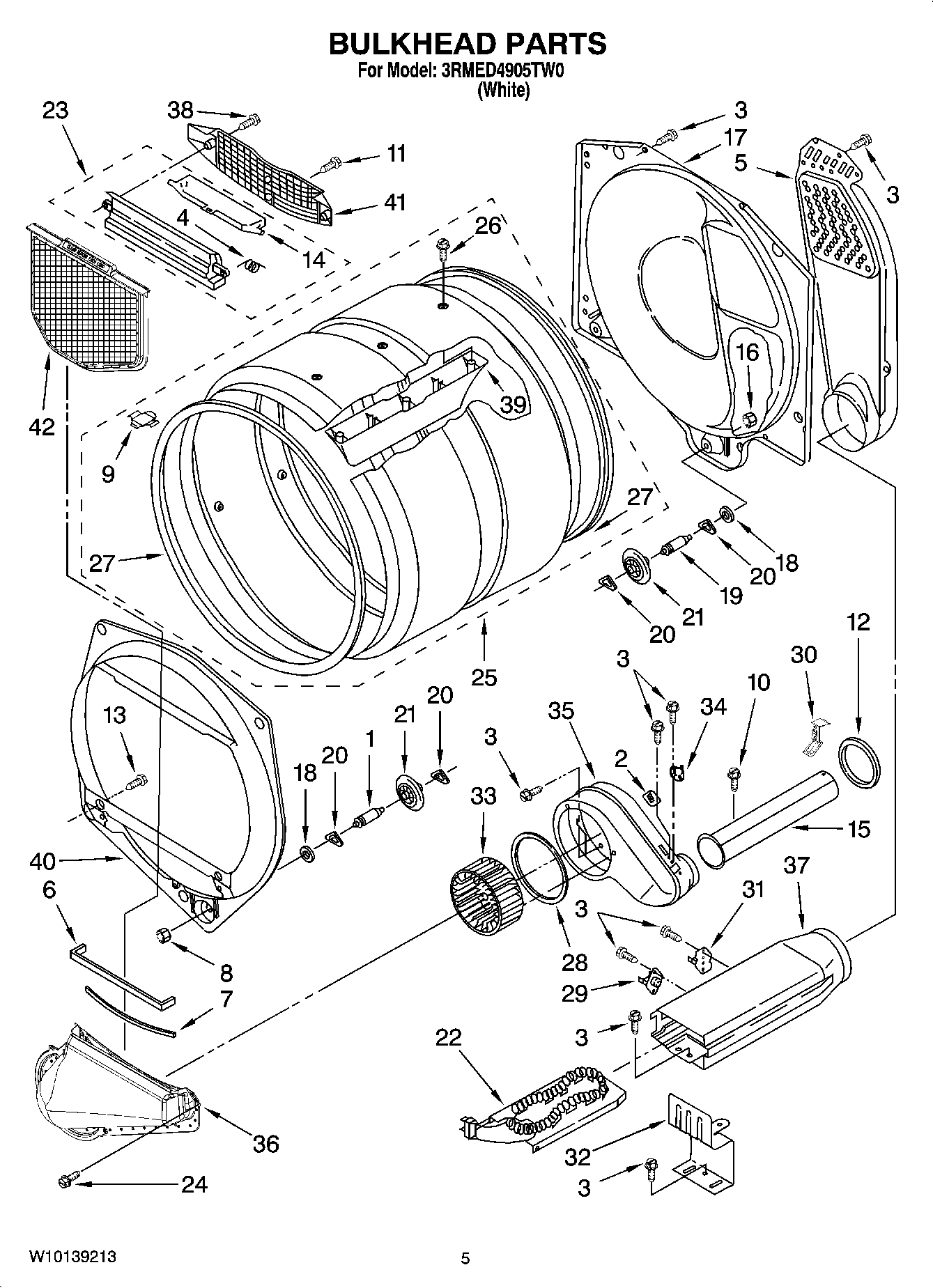

3RMED4905TW0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIKit, Dryer Repair
NIDry Rack
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
1MAY 8575324
2Thermal-Limiter (89 C)
3Screw, 6-20 x 3/8
4Spring, Lint Screen Door
5ASSEMBLY, AIR DUCT
6MAY 697813
7MAY 697814
8NUT, 3/8 X 16 (R.H.)
9Plug, Drum Hole
10MAY W10080820
11MAY W10080360
12MAY 696302
13Screw, 10-16 x 3/4
14MAY 3394984
15Exhaust Pipe
16MAY W10080190
17MAY 3387809
18MAY W10080960
19MAY 8575325
20MAY W10121334
21MAY 8536973
22MAY 8318459
23MAY 3394985
24MAY W10080380
25Complete Drum Assembly
26MAY W10109200
27MAY W10166807
28SEAL, PLATE COVER
29THERMOSTAT 250° F / 170F NC
30CLIP, EXHAUST
31Thermal Cut-Off
32MAY 8066099
33MAY W10168564
34MAY W10168174
35MAY W10151271
36Lint Duct Assembly
37HEATER BOX,
38MAY W10080590
39BAFFLE, DRUM
40BULKHEAD, FRONT
41MAY 8299979
42MAY W10049370
