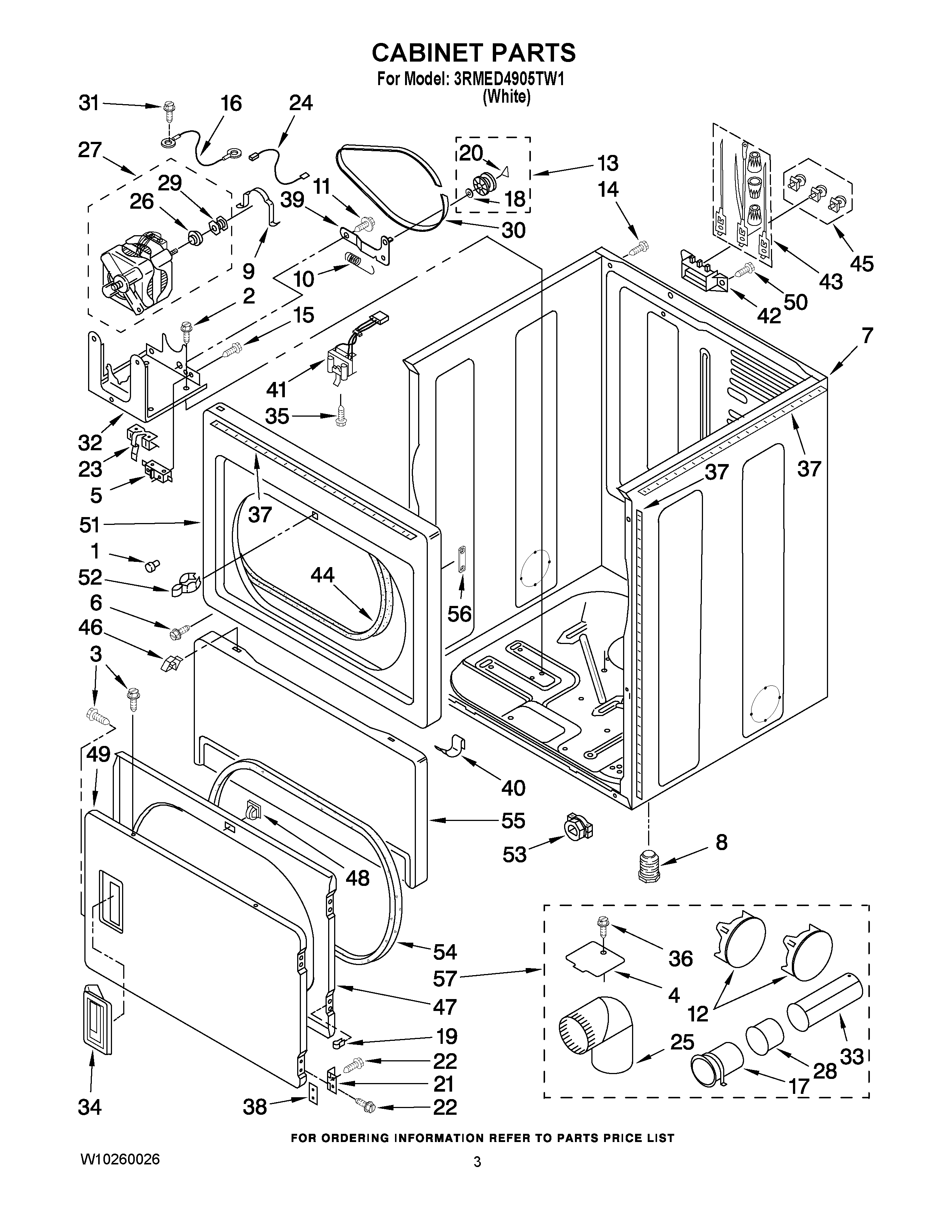

3RMED4905TW1 02 – CABINET PARTS

Products

Position	Product
1	BUMPER
2	MAY W10130935
3	MAY W10080300
4	MAY 3394331
5	MAY 8318457
6	MAY W10080800
7	MAY 8310656
8	MAY 3392100
8	MAY 279810
9	CLAMP, MOTOR MOUNT
10	MAY 3387374
11	MAY W10080670
12	MAY 697750
13	ASSEMBLY, PULLEY
14	MAY 8533971
15	MAY W10118188
16	MAY 340025
17	PIPE, EXHAUST (MEDIUM)
18	MAY W10121334
19	Nut, Inner Door (4)
20	WASHER, TRI RING
21	Hinge & Pin Assembly (2)
22	MAY W10080700
23	Lever, Snap Switch
24	MAY 3394081
25	MAY 49026
26	MAY 3393657
27	Motor Assembly (50 Hz.)
28	MAY 8563750
29	MAY 3402548
30	MAY 3387610
31	SCREW, 10-24 X 3/8
32	MAY 3387118
33	PIPE, EXHAUST (LONG)
34	Handle, Door (White)
35	MAY W10080540
36	Screw
37	SEAL-FOAM (IEC)
38	MAY 3390902
39	MAY W10118754
40	Clip (2)
41	MAY W10237959
42	MAY 3397659
43	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
44	MAY 3387242
45	MAY 279393
46	RETAINER
47	MAY 3392563
48	MAY 3392538
49	MAY 3387872
50	SCREW,8-18 X 3/8
51	Upper Front Panel (White)
52	Strike, Door
53	Clip, Strain Relief
54	MAY 3390735
55	Toe Panel (Includes Item. 2) (White)
56	PLUG, HINGE SCREW
57	MAY 279818
