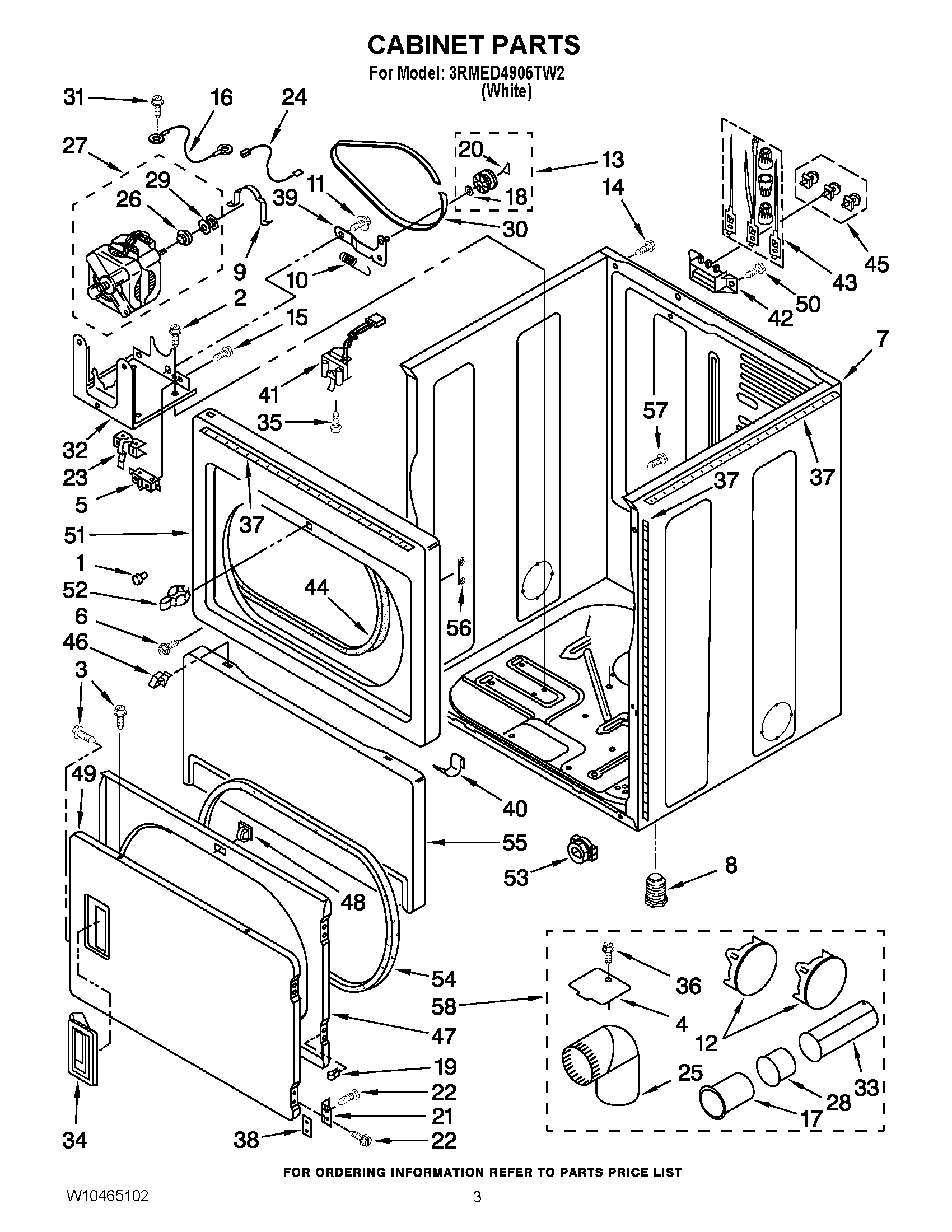

3RMED4905TW2 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
NI	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
1	BUMPER
2	Screw, 8-32 x 1/32
4	MAY W10354249
5	MAY 8318457
6	SCREW
7	MAY 8310656
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	ASSEMBLY, PULLEY
14	MAY 8533971
15	SCREW
16	MAY 340025
17	PIPE, EXHAUST (MEDIUM)
18	MAY W10121334
19	Nut, Inner Door (4)
20	WASHER, TRI RING
21	ASSEMBLY, HINGE & PIN (SILVER)
22	MAY 342055
23	Lever, Snap Switch
24	MAY 3394081
25	MAY 49026
26	MAY 3393657
27	MAY W10289661
28	PIPE, EXHAUST (SHORT)
29	MAY 3402548
30	MAY 3387610
31	SCREW, 10-24 X 3/8
32	MAY 3387118
33	PIPE, EXHAUST (LONG)
34	Handle, Door (White)
35	SCREW
36	Screw
37	SEAL-FOAM (IEC)
38	MAY 3390902
39	MAY W10118756
40	CLIP
41	MAY W10237959
42	MAY 3397659
43	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
44	MAY 3387242
45	MAY 279393
46	RETAINER
47	MAY W10323061
48	MAY 3392538
49	DOOR, FRONT
50	SCREW,8-18 X 3/8
51	Upper Front Panel (White)
52	MAY 696144
53	Clip, Strain Relief
54	MAY 3390735
55	Toe Panel (Includes Item. 2) (White)
56	PLUG, HINGE SCREW
57	SCREW
