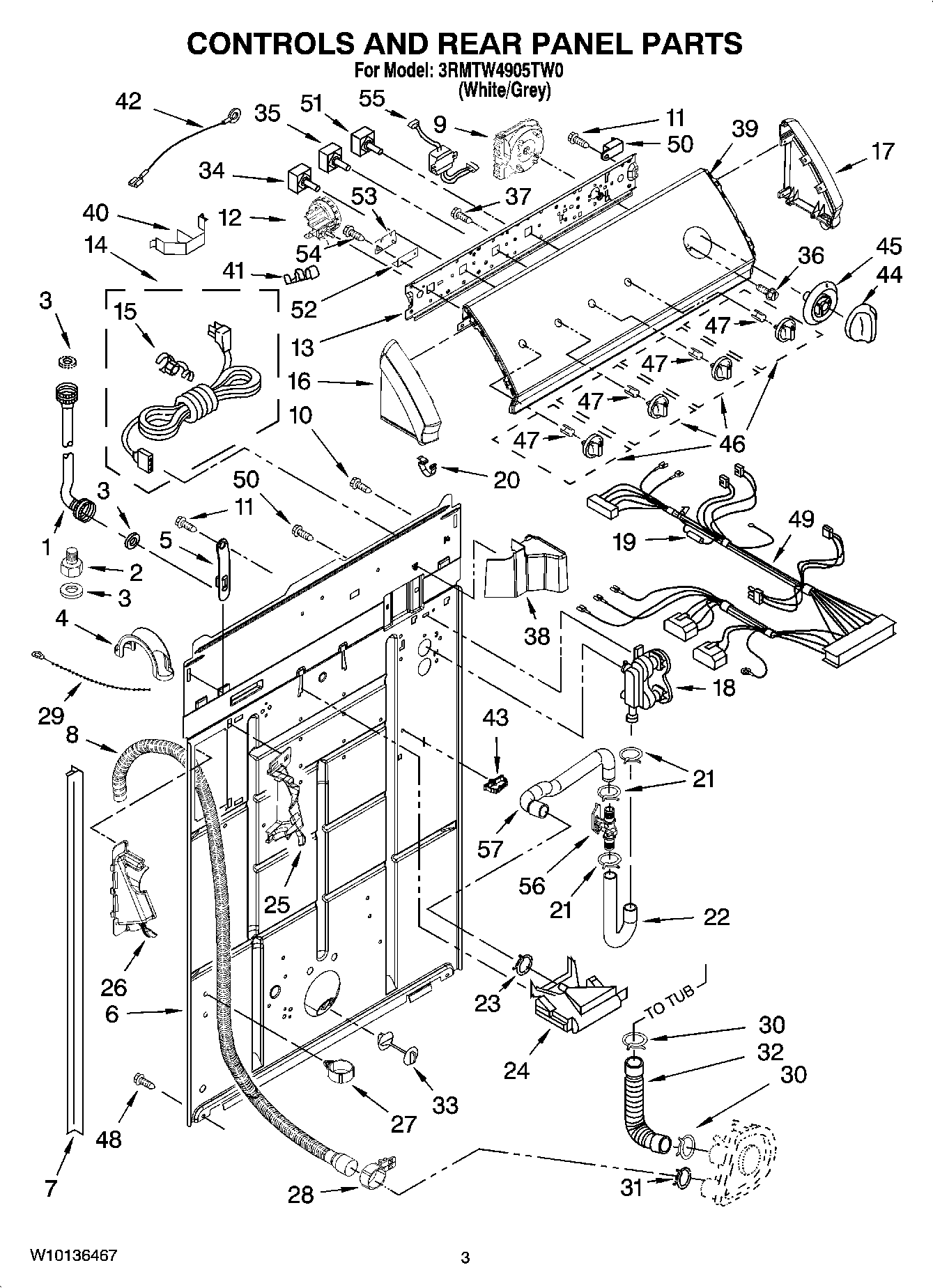

3RMTW4905TW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Hose, Water Inlet (Red)
1	Hose, Water Inlet (Blue)
2	Adapter, Water Inlet Hose
3	ACCESSORY PARTS, WASHER, INLET HOSE
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	MAY W10127860
9	MAY W10116254
10	Screw, Ground
12	MAY 8577842
13	MAY 8559504
14	MAY W10111552
15	MAY 8559337
16	MAY W10128464
17	MAY W10128463
18	MAY 3360397
19	MAY 3951198
20	MAY W10129041
21	MAY W10117299
22	MAY 3357319
23	MAY W10117298
24	Thermister, Inlet
25	MAY 8541669
26	MAY 8541658
27	MAY 8541667
28	MAY 8541668
29	MAY 3347868
30	MAY W10094820
31	MAY W10112110
32	MAY W10116973
33	MAY 8519200
34	MAY W10168360
35	MAY W10168264
36	SCREW
37	MAY W10130933
38	MAY 8314879
39	MAY W10115415
40	Clip, Harness & Pressure Switch
41	MAY 357572
42	MAY 3398893
43	MAY 3352944
44	MAY W10043440
45	MAY W10117527
46	MAY W10043430
47	CLIP, SPRING
48	MAY W10080260
49	MAY W10133462
50	MAY 3952439
51	MAY W10150079
52	MAY 8316039
53	MAY W10110247
54	Screw, 6-20 x 3/8
55	MAY 3407160
56	MAY 3352282
57	Hose, Sensor (Uppper)
