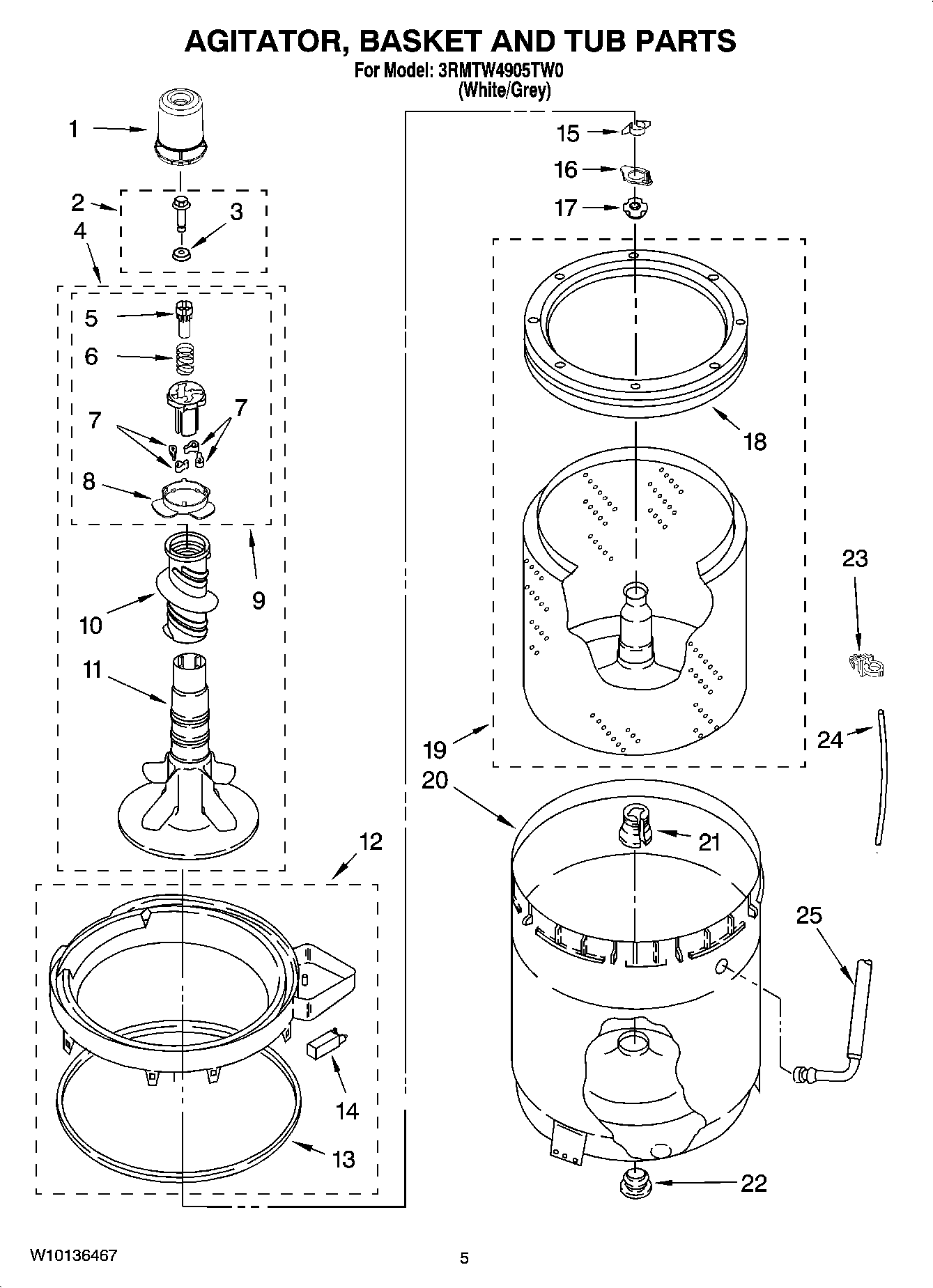

3RMTW4905TW0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8528278
2	SCREW & WASHER
3	MAY 3949550
4	MAY 8538246
5	MAY 8533540
6	MAY 3946997
7	Dog, Agitator (4)
8	Bearing-Driven Cam
9	MAY 8537433
10	MAY 3946996
11	MAY 3947517
12	MAY 3954507
13	MAY 3359585
14	MAY 8318246
15	MAY 3354845
16	MAY 8543666
17	MAY W10116602
18	MAY W10118233
19	Basket
20	MAY 8283125
21	Block, Drive
22	MAY 383727
23	Clip, Harness (1)
24	MAY 3347780
25	MAY 3948705
