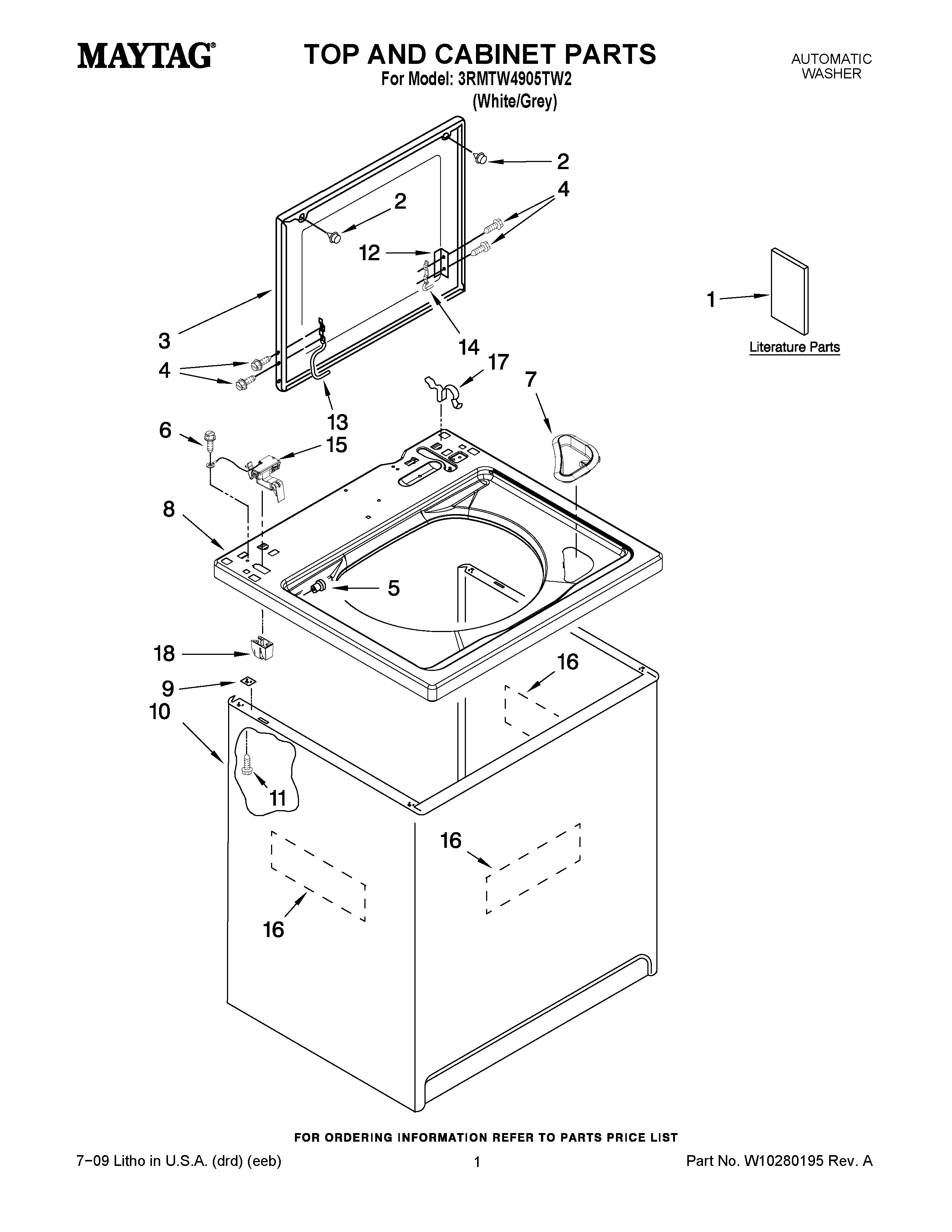

3RMTW4905TW2 01 – TOP AND CABINET PARTS

3RMTW4905TW2 01 – TOP AND CABINET PARTS

Written by

in

3RMTW4905TW2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10131546
1	MAY W10131549
1	MAY W10131567
1	MAY W10131583
1	MAY W10116244
2	MAY 9724509
3	MAY W10115243
4	SCREW, LID HINGE
5	MAY 8319539
6	Screw, Ground
7	MAY W10192089
8	MAY W10194875
9	MAY 62750
10	Cabinet
11	SCREW
12	Pad, Lid Hinge
13	MAY W10225136
14	HINGE, LID
15	MAY W10237162
16	Cabinet-Damper, Sound (3)
17	MAY 62780
18	MAY W10180691
