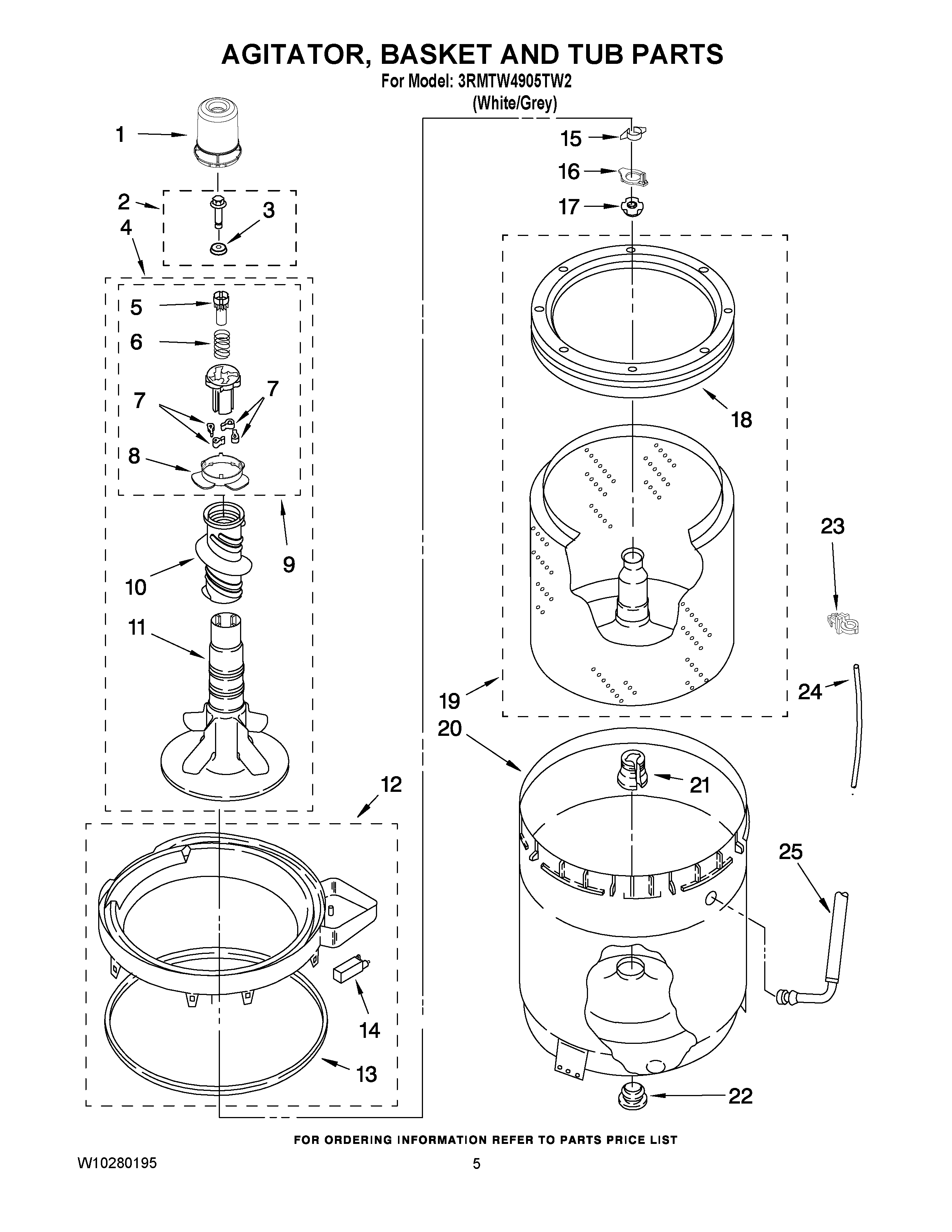

3RMTW4905TW2 03 – AGITATOR, BASKET AND TUB PARTS

3RMTW4905TW2 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

3RMTW4905TW2 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 8528278
2SCREW & WASHER
3MAY 3949550
4MAY 8538246
5MAY 8533540
6MAY 3946997
7Dog, Agitator (4)
8Bearing-Driven Cam
9MAY 8537433
10MAY 3946996
11MAY 3947517
12MAY 3954507
13MAY 3359585
14MAY 8318246
15MAY 3354845
16MAY 8543666
17MAY W10116602
18MAY W10006326
19BASKET
20MAY W10135425
21Block, Drive
22MAY 383727
23Clip, Harness (1)
24MAY 3347780
25MAY 3948705
