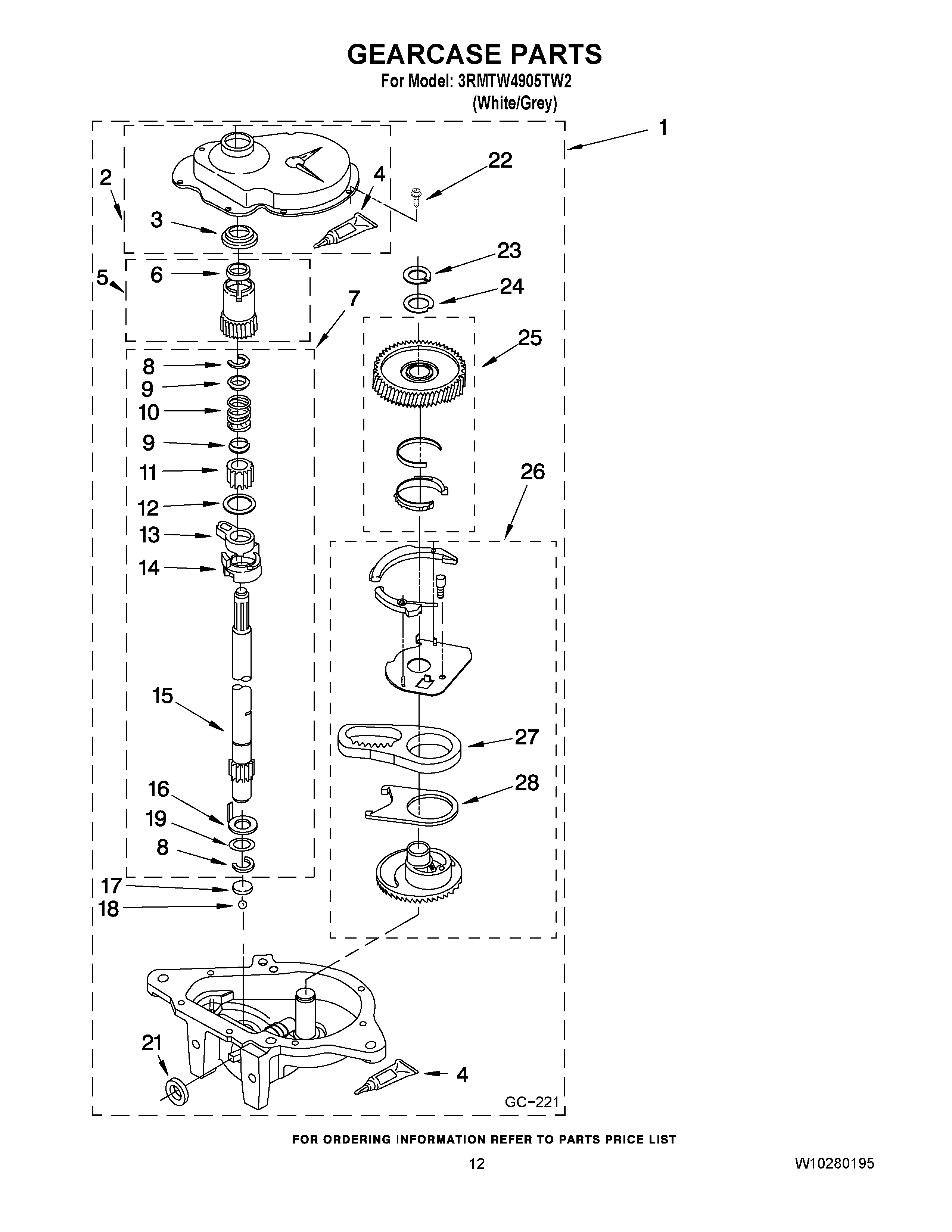

3RMTW4905TW2 08 – GEARCASE PARTSadmin2025-04-26T09:16:57+00:003RMTW4905TW2 08 – GEARCASE PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10116916 |
| 2 | MAY 285202 |
| 3 | MAY 3349985 |
| 4 | SEALER, GASKET (.20 FL. OZ.) (6ML) |
| 5 | Pinion, Spin (Includes Illus. 25) |
| 6 | Seal, Spin Pinion |
| 7 | SHAFT, AGITATOR COMPLETE |
| 8 | MAY 90369 |
| 9 | Retainer, Spring (2) |
| 10 | MAY 62676 |
| 11 | GEAR, AGITATE |
| 12 | MAY W10080940 |
| 13 | MAY 62580 |
| 14 | CAM, AGITATE |
| 15 | MAY 389231 |
| 16 | MAY 62618 |
| 17 | Bearing, Thrust (Includes 18) |
| 18 | Ball, Bearing (Includes 17) |
| 19 | MAY W10080950 |
| 21 | MAY 285352 |
| 22 | Screw, Ground |
| 23 | MAY 3946619 |
| 24 | MAY 285766 |
| 25 | MAY 63400 |
| 26 | MAY 3948434 |
| 27 | MAY 8546456 |
| 28 | MAY 62621 |
