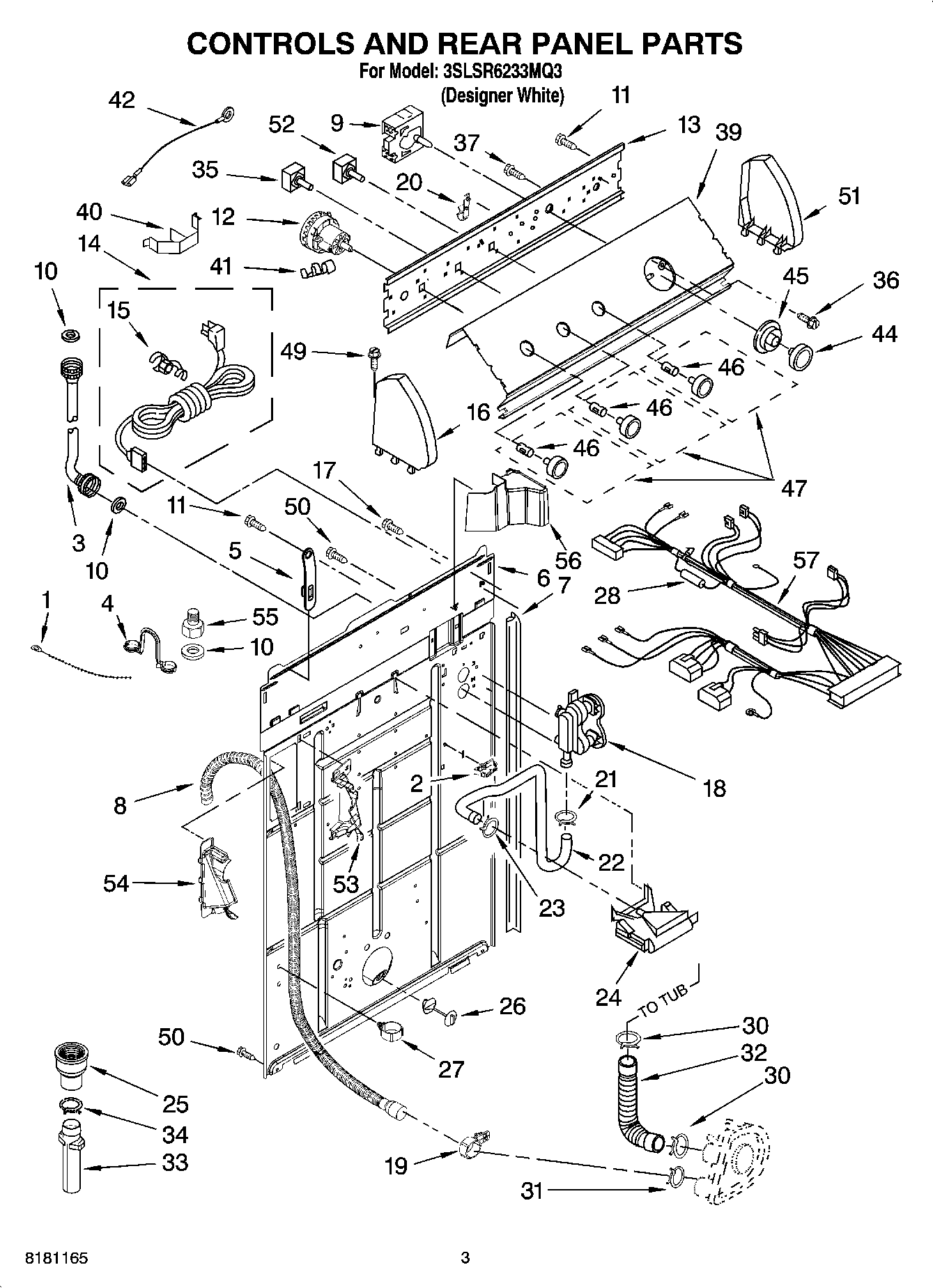

3SLSR6233MQ3 02 – CONTROLS AND REAR PANEL PARTS

3SLSR6233MQ3 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

3SLSR6233MQ3 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WPW10339879 Whirlpool Wire Tie
2Clip, Harness
3WPW10615831 Whirlpool Fill Hose
3WPW10615809 Whirlpool Fill Hose
4WP8577378 Whirlpool Retainer
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9Timer, Control (50 Hz.) (Motor Not A Service Part)
10WP16123 Whirlpool Washer
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power
15Strain Relief, Power Cord
17WP3351614 Whirlpool Screw
18WP3360397 Whirlpool Valve
198541668 Whirlpool Washer Clamp
20Retainer, Harness
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8577375 Whirlpool Hose Coupler
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
28WPW10111181 Whirlpool Fuse Assembly
30WP616099 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
333363920A Whirlpool Adapter Assembly
34WP285655 Whirlpool Hose Clamp
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37Screw (6)
39Panel, Console
40Clip, Harness & Pressure Hose
41W10113937 Whirlpool Clamp
42Wire, Ground
44W10807860 Whirlpool White Control Knob
45WP3957849 Whirlpool Timer Dial
46WP8536939 Whirlpool Spring Clip
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
52W10851055 Whirlpool Cycle Switch
54WPW10096921 Whirlpool Hose
55WP3357397 Whirlpool Adapter
56Sh
57Harness, Wiring (For Detail See Pages 9 & 10
