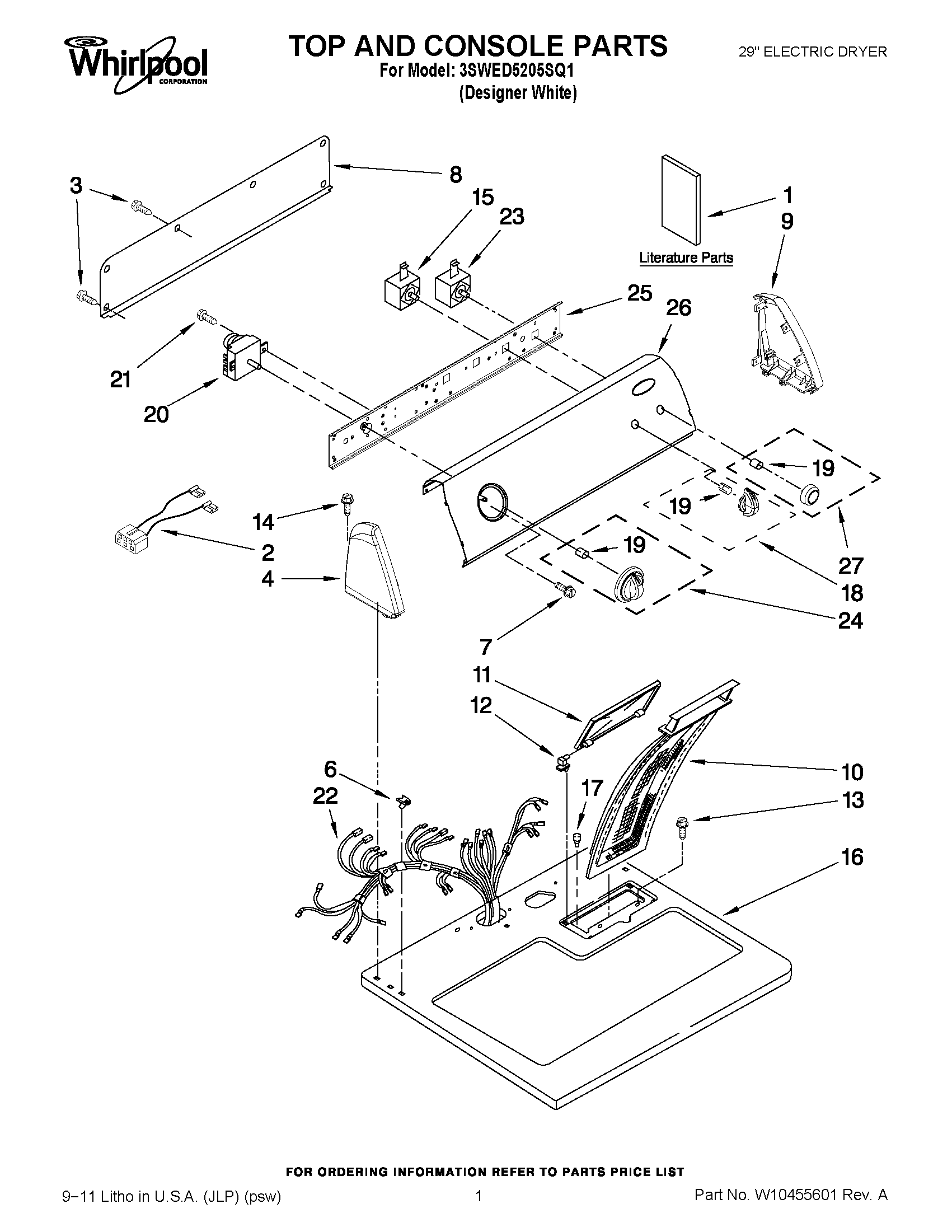

3SWED5205SQ1 01 – TOP AND CONSOLE PARTS

3SWED5205SQ1 01 – TOP AND CONSOLE PARTS

Written by

in

3SWED5205SQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1Use & Care Guide
1Installation Instructions (English)
2Wire Jumper Assembly
3WP693995 Whirlpool Screw
6WP357213 Whirlpool Hinge Stopper
73400859 Whirlpool Screw
8W10103406 Whirlpool Rear Panel
9W10820038 Whirlpool Endcap
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153399638 Whirlpool Switch
16Top
17Bumper, Lint Lid
18Knob, Control
19WP8536939 Whirlpool Spring Clip
20WP3396215 Whirlpool Timer
21WP90767 Whirlpool Screw
22HARNESS, WIRING
23WP3395382 Whirlpool Push To Start Switch
24WP8566061 Whirlpool Knob
25Bracket, Control
26Panel, Control
27WP8566065 Whirlpool Knob
