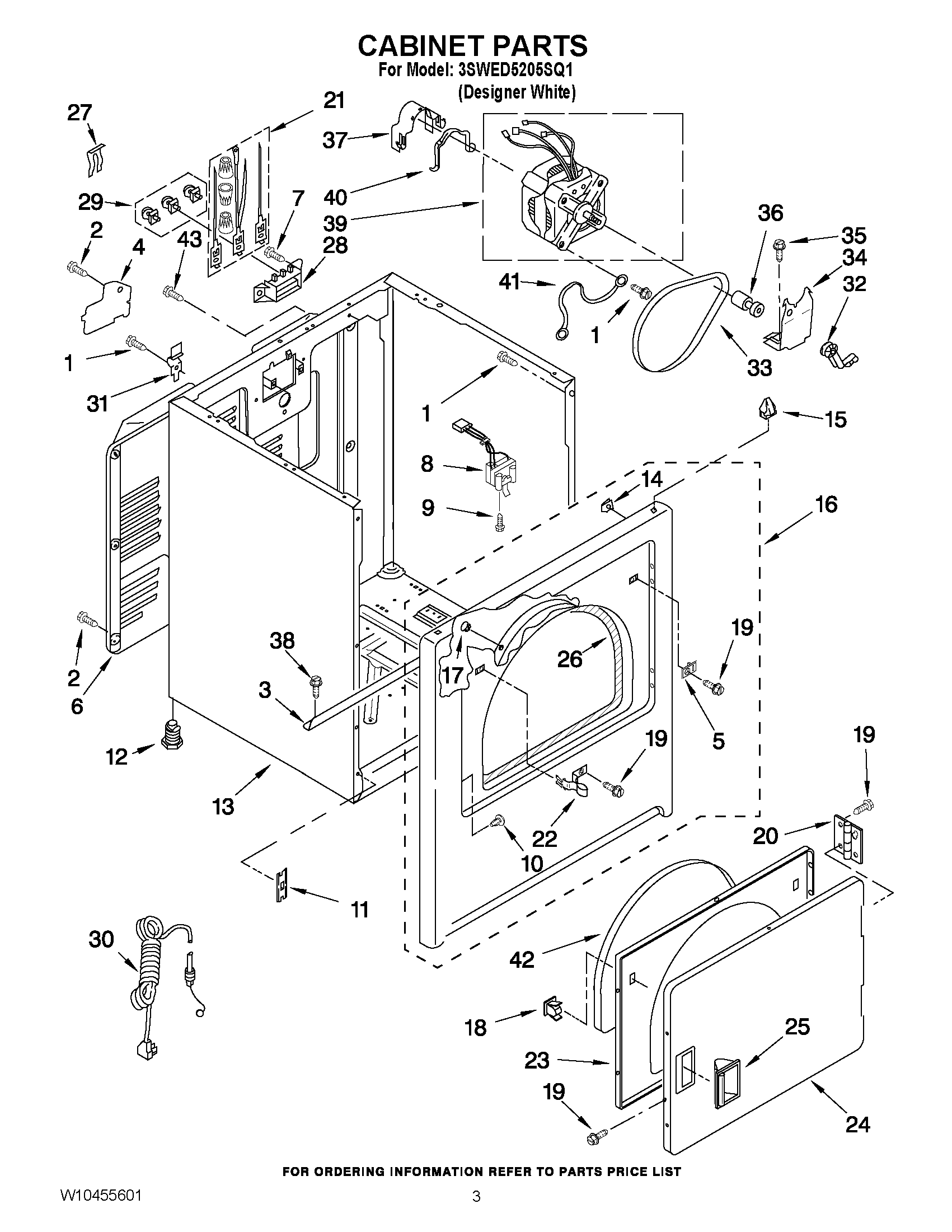

3SWED5205SQ1 02 – CABINET PARTS
Written by
in
3SWED5205SQ1 02 – CABINET PARTS
Products
Position
Product
1
SCREW
2
WP693995 Whirlpool Screw
3
BRACKET, CABINET
4
W11539855 Whirlpool Refrigerator Pump
5
WP3403630 Whirlpool Plug
6
280043 Whirlpool Rear Panel
7
WP308685 Whirlpool Microwave Screw
8
SWITCH-DOOR DRYER
9
WP3395530 Whirlpool Screw
10
WP3404413 Whirlpool Plug
11
W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
12
49621 Whirlpool Leveling Feet
13
8533643 Whirlpool Dryer White Cabinet
14
WP98234 Whirlpool Nut
15
WP18776 Whirlpool Lock
16
W10806345 Whirlpool Panel
17
279220 Whirlpool Clip
18
WP3389441 Whirlpool Door Catch
19
WP488627 Whirlpool Refrigerator Screw
20
WPW10362431 Whirlpool Hinge Assembly
21
279318 Whirlpool Terminal
22
W11429589 Whirlpool Strike
23
WP3402341 Whirlpool Door
24
W10861227 Whirlpool Door Assembly
25
WP3405184 Whirlpool White Door Handle
26
W11035878 Whirlpool Bearing and Seal
27
W11712577 Whirlpool Clip
28
WP3397659 Whirlpool Terminal Block
29
279393 Whirlpool Terminal Block Screw and Nut Kit
30
Cord, Power
31
WP8066217 Whirlpool Hinge
32
WP691366 Whirlpool Dryer Idler Pulley Assembly
33
341241 Whirlpool Dryer Drum Belt
34
WP348780 Whirlpool Base
35
3400500 Whirlpool Screw
36
W11618508 Whirlpool Drive Motor
37
WP3404162 Whirlpool Clamp
38
WP3390631 Whirlpool Screw
40
CLAMP
41
Wire, Ground (Motor)
42
SEAL-DOOR DRYER
43
W10850756 Whirlpool Screw
←
