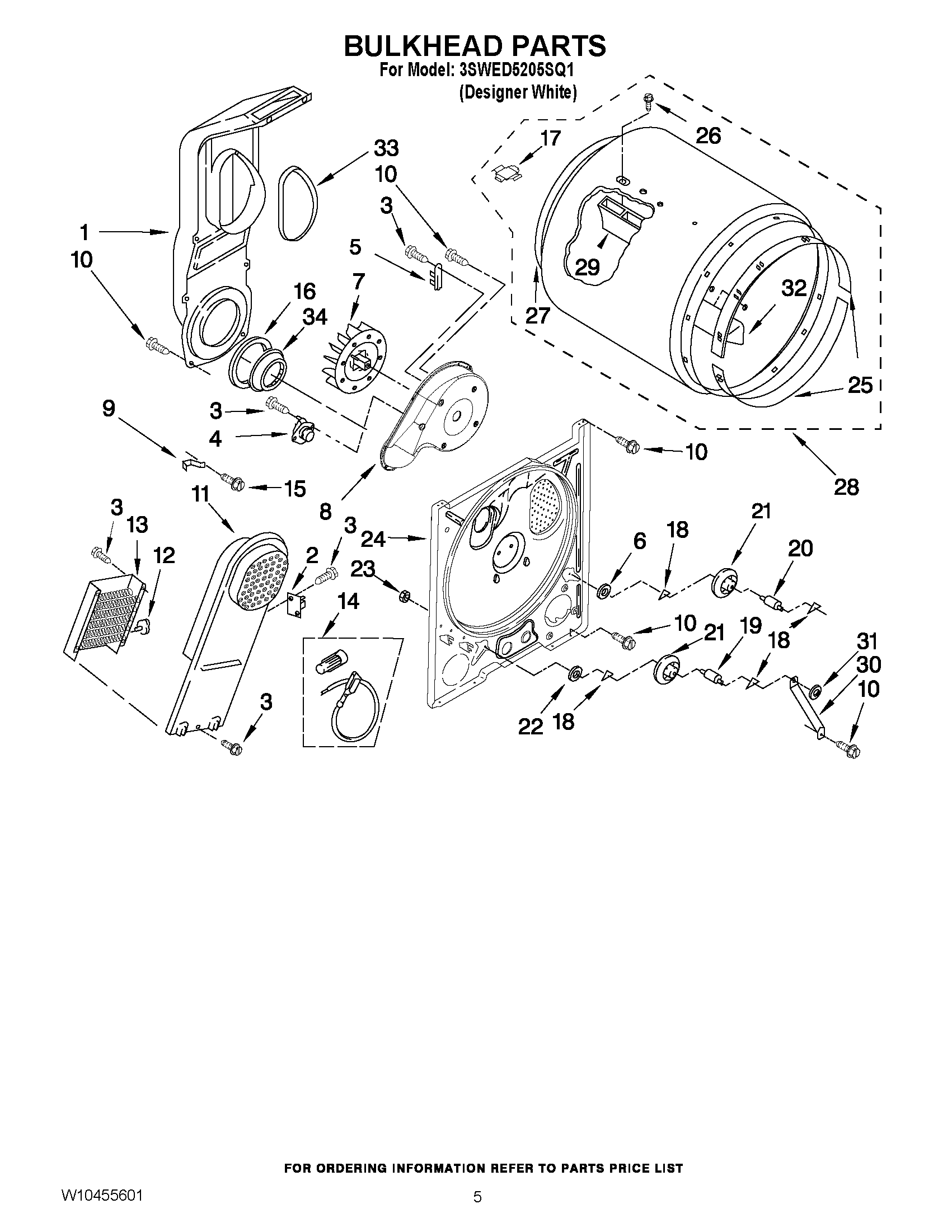

3SWED5205SQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
3	WP90767 Whirlpool Screw
4	WP3387137 Whirlpool Thermostat
5	WP3392519 Whirlpool Dryer Thermal Fuse
6	WP3388703 Whirlpool Washer
7	WP694089 Whirlpool Dryer Blower Wheel
8	WP8577230 Whirlpool Housing
9	279771 Whirlpool Clip
10	SCREW
11	WP8541818 Whirlpool Box
12	WPW10121899 Whirlpool Thermostat Fix
13	WP279843 Whirlpool Heating Element
14	279457 Whirlpool Dryer Heating Element Wide Spade Connection
15	WP489463 Whirlpool Refrigerator Screw
16	W11415783 Whirlpool Seal
17	8066086 Whirlpool Plug
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	SHAFT SUPPORT ROLLER DRYER
20	SHAFT SUPPORT ROLLER DRYER
21	349241T Whirlpool Dryer Drum Support Roller Kit
22	WP348197 Whirlpool Washer Assembly
23	W11229607 Whirlpool Nut
24	W11178668 Whirlpool Bulkhead
25	279441 Whirlpool Front Bearing Ring
26	W10853898 Whirlpool Screw
27	W10612022 Whirlpool Felt Seal
28	W10899578 Whirlpool Dryer Drum Assembly
29	BAFFLE-DRM
30	W11684613 Whirlpool Bracket
31	WP90296 Whirlpool Clip
32	WP3403636 Whirlpool Drum Baffle
33	SEAL
34	W11233063 Whirlpool Shield Assembly
